TechBrands MS6210 Owner's Manual

Wireless management system

MS6210.WIRELESS MANAGEMENT SYSTEM. OWNER'S MANUAL

HOW TO USE YOUR MS6210 – Wireless Management System:

This product is a professional remote control, wire management system. The remote

control and module are designed to be used for operating accessories (including lights,

horns, warning beacons, etc.) that are typically used on work or off-road vehicles

(trucks, jeeps, ATV/UTV, boats, heavy equipment, farm equipment, etc.). The unit

works on 12VDC and provides output to two banks of 4 terminals each, a total of eight

terminals. Each bank is protected by an independent 30A fuse.

Depending upon intended use, the system may require a higher capacity alternator

and/or a larger battery. Consult with a local installer or up-fitter for guidance.

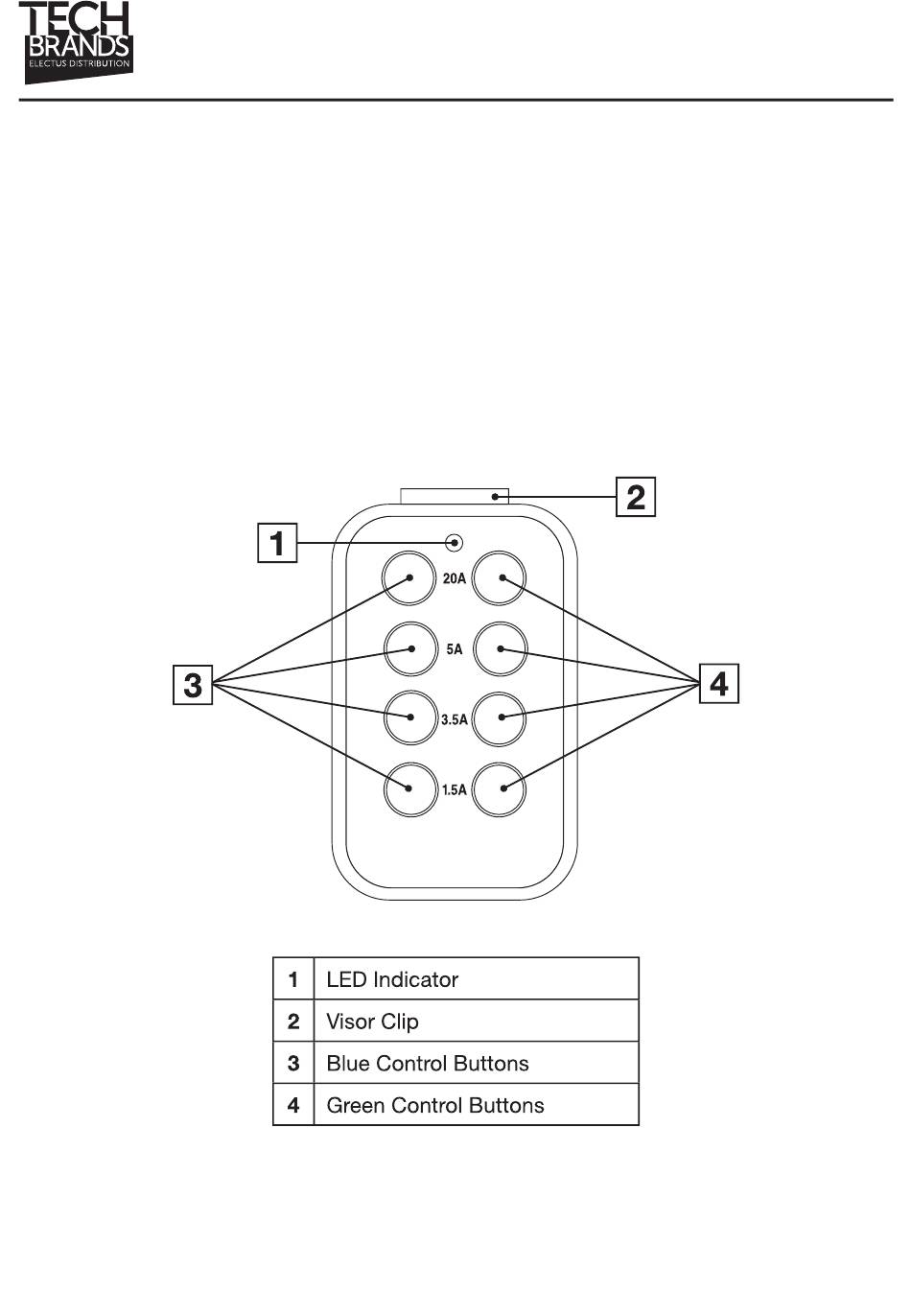

Please note that the remote control can be clipped onto a visor, or stored conveniently

within the vehicle for easy access. It uses a 12V, 23A size alkaline battery that is supplied

with the kit.

Page 1 of 4

Table of Contents

Need help?

Do you have a question about the MS6210 and is the answer not in the manual?

Page 1 MS6210.WIRELESS MANAGEMENT SYSTEM. OWNER'S MANUAL HOW TO USE YOUR MS6210 – Wireless Management System: This product is a professional remote control, wire management system. The remote control and module are designed to be used for operating accessories (including lights, horns, warning beacons, etc.) that are typically used on work or off-road vehicles (trucks, jeeps, ATV/UTV, boats, heavy equipment, farm equipment, etc.).
Page 2 MS6210.WIRELESS MANAGEMENT SYSTEM. OWNER'S MANUAL FEATURES: 1. Aluminum housing: Strong and durable with maximum heat dissipation. ℃ ℃ 2. Designed to work in a wide range of temperatures: -15 ~ 80 . 3. Remote has a range of up to 15 M.
Page 3 MS6210.WIRELESS MANAGEMENT SYSTEM. OWNER'S MANUAL PAIRING PROCEDURE: • Point the remote control to the main unit and using a small screwdriver press the black switch. The green light will light up. • Now press any one of the eight buttons on the remote to pair and the green light should turn off indicating successful pairing.
Page 4 MS6210.WIRELESS MANAGEMENT SYSTEM. OWNER'S MANUAL SPECIFICATIONS: Model MS6210 Standard design 12V,max 60A DC 13V Rated input voltage DC 11-15V Working voltage Input low voltage protection 9.5 +/- 0.3V DC Max output current 30A per terminal bank ℃ ℃ Working temperature...
