Summary of Contents for DSYS DL16B
- Page 1 Package content Information, Support, Service ORDER RC Switches DS1C RC LED Lighting Controller DL4B DC ESCs CLEVER RC Opto-isolator DOP1C Programmer DPG4 RC LED Lighting Controller DL16B RC Switches / ESCs - DS4C USER GUIDE PERFORMANCE AND QUALITY 2020 rev. 02...
- Page 2 Universal RC RC Models LED Lighting DL16B DL16BW DL16B is designed for LED lighting of RC 3-channel control of models. Car / Boat / Plane / BUS TIR, Tractor, Tank, Dinghy, Sub, Glider. W - resistant to splashing water, snow, humidity and dust.
- Page 3 Connect the S1 switch or the cable Switch S1 Cable CH3 plugged into the free channel of the receiver to the CH3 connector. Solder the wires to connector’s counterparts. Cut the LEDs lead to 5mm length, extend the leads with wires and isolate them properly. The types and colours of used LEDs can be combined.
- Page 4 Examples of LED wiring. L1: Front, Sidelights Right blinkers (Front / Rear) L2: Reverse Left blinkers (Front / Rear) Inner Beacon L7: Footlights L4: Brake / Rear Reflector BOAT Front Reflectors Auxiliary ast Rear Reflectors L6: Cabin Beacon L7: Footlights Position Reflector AIRPLANE...
- Page 5 ACOUSTIC SIGNALLING Connect the KPX1 piezo buzzer instead of the LED L2B. Set the blinking L2 while reversing and the siren will beep intermittently. OPERATION After turning the model on the LEDs will blink and then respond to control respectively. Control: Stick / Wheel / Switch Position 2P / 3P Switch.
- Page 6 S: Selection of the shift of the neutral position of the neutral lever or the stop position ON LEDs L1 to L4 (according to the setting). 1: 0 2: +25 3: +50 4: +100 5: -25 6: -50 7: -100 W: Steering wheel middle shift selection, LEDs L5, L6 ON.
- Page 7 4: Operation LED L4A, L4B (lower cable control). Mode Activity N / Stop Brake Brake M Reversible lights 25% lights 25% lights 25% lights lights Reversible lights lights Reversible lights lights lights Reversible lights Unidirect. lights lights Unidirect. lights blinking constantly 5: Operation LED L5A, L5B (upper cable control).
- Page 8 Protect your DL16B against drops, aggressive environment, liquids, splashing water and snow (line “W” is resistible against splashing water and snow). Do not connect DL16B to battery when taking it from cool to hot environment, wait at least for 20 minutes.
- Page 9 INFORMATION, TECHNICAL SUPPORT, SERVICE Contact us on email. Information and Support ......info@dsys.cz Business related ........sales @dsys.cz Visit our website/ e-shop at ....www.dsys.cz RC Model Electronic - Manufacturing / Service. Zdenek David, Hrusnova 12, Brno 62100, Czech Republic...
- Page 10 PRODUCT OVERVIEW ORDER Our products are available at RC Model Shops / e-shop Shop online at e-shop: www.dsys.cz Quantity discount: 2pcs -5%, 5pcs -7%, 10pcs -10% (for the same or different products) We provide shipping by Czech Post, debiting payment method only.
- Page 11 Universal DC ESC Brushed - Reversible / Unidirectional Car, Boat, Plane, BUS, TIR, Tractor, Tank, Dinghy, Sub, Glider. 2 user quick settings by jumper or switch (M1, M2 memories). 2 LEDs status indication (red and green LEDs). Battery: DDE20A, 70A: 5 - 10 Ni-Cd / Ni-MH, 2 - 3S Li-Pol / Li-ion / A123 Li-Fe, Pb 6V / 12V.

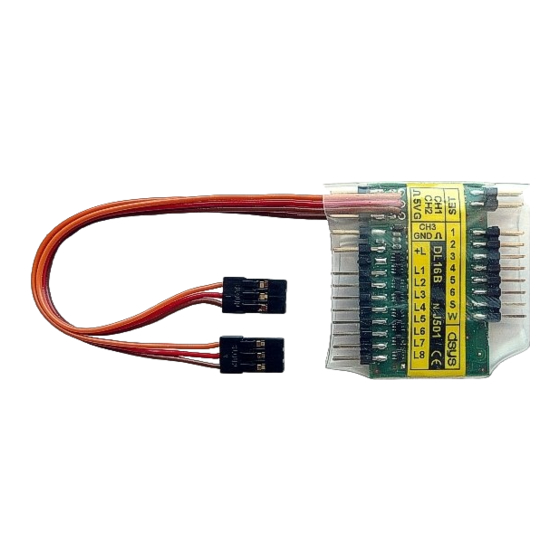

- Page 12 DL16B - 3CH Universal RC LED Lighting Controller 2 - 3 channels control (Stick, Wheel, Switch). Setting with 3 jumpers. Very simple operation and adjustment. Content: 13x super LED 5 mm, 6x super LED 3 mm, 3x jumper, Piezo Buzzer, connectors, cables, switch, heat shrink tubes.
