Summary of Contents for Astralpool PLUVIUM 43432
- Page 1 Disclaimer PLUVIUM english Our commitment: excellence S I G N A T U R E...
- Page 2 S I G N A T U R E INDEX 1. Product data sheet and technical characteristics 1.1. Table of technical characteristics 1.2. Flow table 1.3. Packaging 1.3.1. Shower palletised 1.3.2. Shower tray palletised 1.4. General dimensions 2. Quality control check-list 3.
-
Page 3: Technical Characteristics

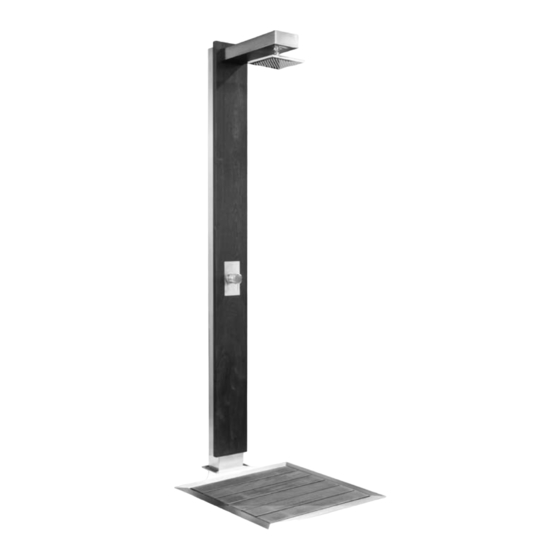

S I G N A T U R E 1. Product data sheet and technical characteristics 1.1. Table of technical characteristics Pluvium shower New shower with an elegant and modern image thanks to its minimalistic design and the high quality of its materials. Designed to offer the utmost in well-being and relaxation. •... -
Page 4: Flow Table
S I G N A T U R E 1.2. Flow table WATER CONSUMPTION: Without flow limiting system Flow pressure 1 bar 2 bar 3 bar 3,5 bar Hot and cold 6,8 l/min 0 l/min ,8 l/min 4,4 l/min Just cold 6,4 l/min 9,6 l/min ,4 l/min... - Page 5 S I G N A T U R E 1.3. Packaging 1.3.1. Shower palletised PALLETISED DIMENSIONS (mm) VOLUME (m PACKAGES PER PALET 00x000x450 ,94 PACKAGING DIMENSIONS (mm) VOLUME (m 340x0x90 0,6 1.3.2. Shower tray palletised PALLETISED DIMENSIONS (mm) VOLUME (m PACKAGES PER PALET 00x800x700 0,68...
- Page 6 S I G N A T U R E 1.4. General Dimensions (mm) Shower (Code 43432) SECTION AA...
- Page 7 S I G N A T U R E Shower tray (Code 43434) SECTION AA...
- Page 8 S I G N A T U R E 2. Quality control check-list QUALITY CONTROL CHECKLIST Quality certificate: Receipt of materials: Receipt control: Panel, single lever mixer, sprinkler, flexible connector, wood. Production process RANDOM CHECK Components Manufacture of parts Quality control/ random check Assembly 100 % Finish control /...
- Page 9 S I G N A T U R E METALAST S.A.U CERTIFIES THAT: The PLUVIUM shower, manufactured by METALAST S.A.U. has been designed following the standards set by METALAST S.A.U.. These include: - Control points and necessary tests to ensure the conformity of the product, in accordance with the requirements established by regulation ISO 900:000 in its points on: - Product production.
- Page 10 S I G N A T U R E 3. Available certificates about the product, the production process and the systems implemented in the company...
-
Page 11: Warranty Certificate
S I G N A T U R E 4. Warranty certificate 4.1. GENERAL PROVISIONS 4... In accordance with these provisions, the vendor guarantees the products that it sells against any manufacturing defect that affects its conformity or suitability for the use for which they have been designed. - Page 12 S I G N A T U R E 4..4. Faults in the product caused only and exclusively by defects in materials and/or workman- ship are covered by the warranty. The warranty does not cover cases in which the Product: (i) has been handled incorrectly;...
- Page 13 S I G N A T U R E 5. Design standard and general characteristics TECHNICAL CHARACTERISTICS: - Made in AISI-36 SATIN stainless steel. - Ipe wood: Wood for outside or wet areas Density: very dense 050 Kg/cm. Dimensional stability: very stable. Hardness: very hard, 8.5 (Monnin).
- Page 14 S I G N A T U R E IPE wood Name Mechanisation Scientific: Tabebuia spp; • Sawing: With no problems other than its English: Ipé; hardness. Rapid blunting. Lapacho. • Drying: Slow. Slight risk of warping and cracks. Origin •...
- Page 15 S I G N A T U R E 6. Diagram CODE DESCRIPTION CODE DESCRIPTION 4400430 SINGLE LEVER MIXER 44004308 WOOD EMBELLISHMENT 4400430 EMBELLISHMENT 44004309 ARM LID 44004303 ADJUSTABLE SPRINKLER 4400430 BODY FIXATION 44004304 FLOW LIMITER 440043 SHOWER ARM 44004305 WALL ATTACHMENT 4343R000 REAR LID 44004306 FLEXIBLE CONNECTOR 500 mm 3 7006R04008 SCREW DIN-85 M 4X8...
- Page 16 S I G N A T U R E 7. Recommendations 7.1. PACKAGING The Pluvium shower is delivered in an adequately packed and sealed cardboard box, on which the positioning and stacking logistics are indicated so as to ensure correct storage of the shower.
- Page 17 S I G N A T U R E 7.4. INSTALLATION MANUAL AND HOW TO START UP THE PRODUCT Reducer REDUCTOR Sprinkler joint JUNTA PIÑA PIÑA Sprinkler - Dismantle sprinkler from the arm. 1- Desmontar piña del brazo. 2- Sacar junta piña.
- Page 18 S I G N A T U R E Put in the washer and thread the nut on the thread Thread the flexible connector Insert Rawlplugs in the hole Make Ø0 holes for Rawlplugs M08S ...
- Page 19 S I G N A T U R E Put ovalhead co- untersunk screws Rest the shower on the floor Connect equipotential Connect shower flexible cable connectors with threaded floor points ...
- Page 20 S I G N A T U R E º Fix with screws º Insert clips in slots Tray assembly Make a drain for Tiling 50 l/min. Concrete ...
-
Page 21: Maintenance
S I G N A T U R E 7.5. MAINTENANCE Stainless Steel: .- Regular cleaning with fresh water should be carried out, or with a cleaning product for satin stainless steel, as often as is deemed appropriate. .- Manual or sudden dosages of chemical products should not be done near to the stainless steel, so as to avoid high concentrations of chemicals, and stains caused by splashes. - Page 22 S I G N A T U R E 8. Table of errors PRObLEM SOLUTION º Make sure that it is connected to the water supply. Water doesn’t come out º Check the water supply valve The shower moves Check the shower anchors Check the anchor between the arm and the The arm moves body...
-
Page 23: Transport And Storage
S I G N A T U R E 9. Table “DOs AND DON’Ts” DON’T Check the packing and compliance Leave the box outside or in damp spa- Transport and with the stacking indications. ces. storage Always transport the shower in its Drag the shower.
