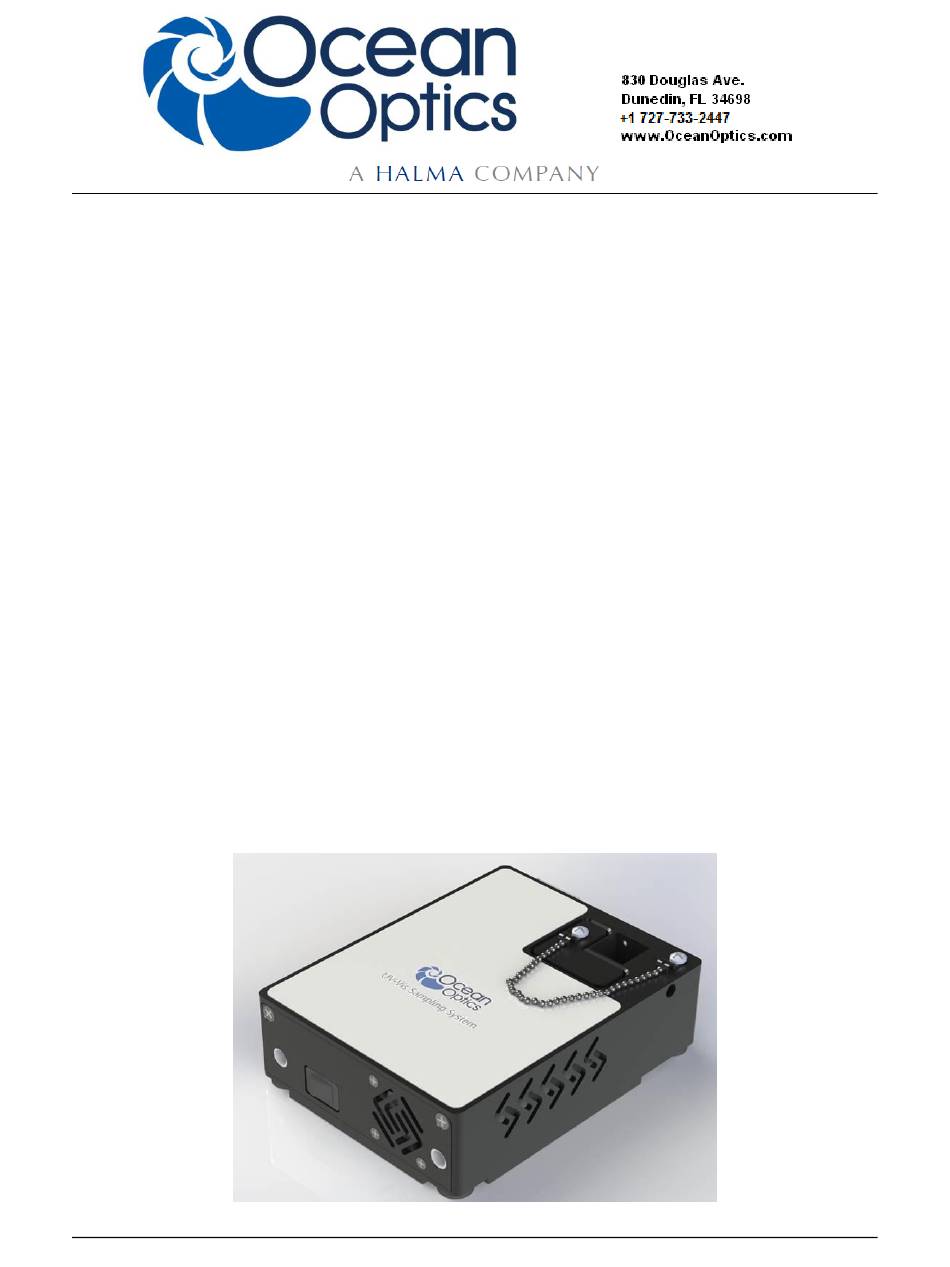

Flame Direct Attach UV-VIS
Integrated Sampling System
Installation and Operation Instructions
Description

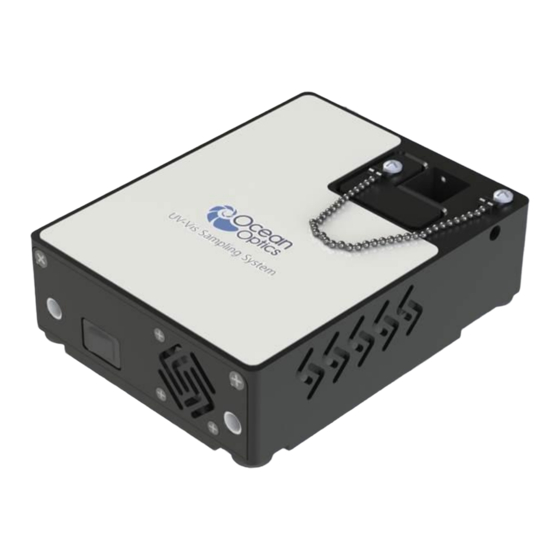

The Flame Integrated Sampling System (FLAME-DA-CUV-UV-VIS) is a snap-on, direct-attach
1 cm cuvette holder and UV/VIS light source (200-1100 nm) combination created specifically
for the Flame spectrometer models. The deuterium tungsten light source receives control
instructions via the accessory connector on the spectrometer.
The FLAME-DA-CUV-UV-VIS is a perfect general purpose tool for absorbance and
transmission spectroscopy. It includes a filter slit on the illumination side designed
for 12.5 mm (½") optical filters (but may accept other sizes), useful for reducing stray light
and improving your results. The tungsten source can be dimmed to balance the spectral
response and improve the dynamic range of results in the UV. To use your spectrometer
with a fluorescence probe, simply disconnect the probe and attach the Flame Integrated
Sampling System and within minutes you have a miniature spectrophotometer.
225-00000-002-01-201508
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ocean Insight FLAME-DA-CUV-UV-VIS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Halma Ocean Insight FLAME-DA-CUV-UV-VIS

  • Page 1 Flame Direct Attach UV-VIS Integrated Sampling System Installation and Operation Instructions Description The Flame Integrated Sampling System (FLAME-DA-CUV-UV-VIS) is a snap-on, direct-attach 1 cm cuvette holder and UV/VIS light source (200-1100 nm) combination created specifically for the Flame spectrometer models. The deuterium tungsten light source receives control instructions via the accessory connector on the spectrometer.
  • Page 2: Parts Included

    FLAME-DA-CUV-UV-VIS Installation and Operation Instructions The FLAME-DA-CUV-UV-VIS also contains a built-in cooling fan. Therefore, due to the increased power requirements of the light source, the sampling system requires a separate 5-volt power supply (included with the system). Parts Included The FLAME-DA-CUV-UV-VIS Integrated Sampling System ships with the following components: ...
  • Page 3 FLAME-DA-CUV-UV-VIS Installation and Operation Instructions Adjusting the Cuvette ► Procedure 1. Locate the ball plunger screws (accessed on the front face of the unit and through the hole opposite the power jack on the side of the unit). 2. Use a small (0.100”) flathead screwdriver to loosen the ball plunger screws until the end is visible in the holder.
  • Page 4 FLAME-DA-CUV-UV-VIS Installation and Operation Instructions 3. Screw the FLAME-DA-CUV-UV-VIS to the front of the spectrometer using a standard flathead screwdriver. The connection screws are accessed from the front of the FLAME-DA-CUV-UV-VIS (the white lined holes on the front of the unit). 4.
  • Page 5 FLAME-DA-CUV-UV-VIS Installation and Operation Instructions Adjusting the Cuvette section). Adjusting the VIS Light Source Brightness You can adjust the brightness of the VIS (Tungsten) source manually using a screwdriver or by sending the commands via the I2C bus. Adjusting the VIS Light Source Manually Use a 0.100”...
  • Page 6 FLAME-DA-CUV-UV-VIS Installation and Operation Instructions Adjusting the VIS Light Source Using Commands You can send the commands via I2C to adjust the brightness of the VIS light source. The I2C address is 0x0C. ► Procedure 1. Send an initialize command: 3F 00 01 xx xx 2.
  • Page 7: Specifications

    FLAME-DA-CUV-UV-VIS Installation and Operation Instructions  For SpectraSuite software, check the Strobe/Lamp Enable check box on the Acquisition toolbar. Specifications Dimensions (L x W x H) 124.1 x 88.9 x 40.1 mm Weight 350 g Power Source 5 V DC external supply (included) Wavelength Range (source) 200-1100 nm Cuvette Path Length...
  • Page 8 FLAME-DA-CUV-UV-VIS Installation and Operation Instructions Product Upgrades, Repairs and Servicing Occasionally, you may find that you need Ocean Optics to make a change or an upgrade to your system. To facilitate these changes, you must first contact Customer Support and obtain a Return Merchandise Authorization (RMA) number.
