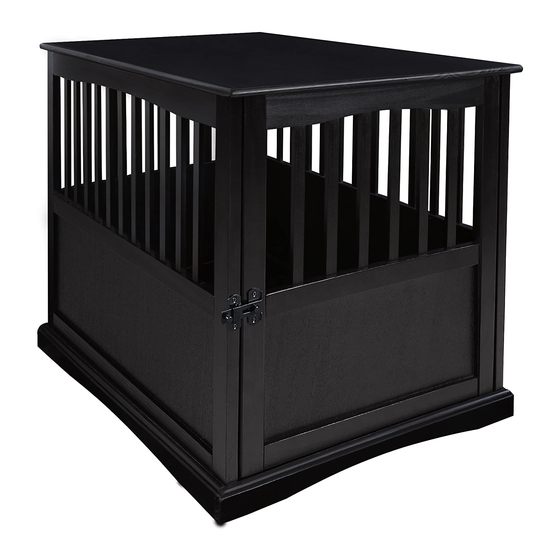

- Page 1 Assembly Instruction Item# 600-4X Medium Pet Crate End Table...
- Page 2 Page 2/6 Parts List Top Panel 1 Pc. Bottom Panel 1 Pc. 1 Pc. Left Panel Right Panel 1 Pc. Back Panel 1 Pc. Door 1 Pc. Hardware x 18 F6 x 5/8" Pin Metal Spring Washer RF10004 RF40009 RF40002 RF44013 JCB M6 x 40 L-Bracket...
- Page 3 Page 3/6 RF50003 RF10004 RF50003 RF10004 RF50003 RF10004 Diagram 1. Step 1. Attach 6 L-Bracket (RF50003) into the pre-drilled holes on the Left Panel (C), Right Panel (D) and Back Panel (E) using 12 screws (RF10004) as per Diag. 1.
- Page 4 Page 4/6 RF10004 Diagram 2. Step 2. Attach Back Panel (D) into the Top Panel (A) by using 2 screws (RF10004) as per diagram 2. RF10004 RF10004 Diagram 3. Step 3. Attach Left and Right Panel (C&D) into the pre drilled holes on the Top Panel (A) using 6 screws (RF10004) as per diagram 3.
- Page 5 Page 5/6 Loosen Tighten Tip: is the adjustment point for the balance of Bottom Panel (B). RF10041 Diagram 4. Step 4. Attach Bottom Panel (B) into the unit by using 6 screws (RF10041) as per diagram 4.
- Page 6 Page 6/6 Tip: Carefully hold the pins to prevent it from bouncing o RF40002 Diagram 5. RF40009 RF44013 Step 5. Assemble the Door (F); Place Spring (RF40002), Door Pin (RF40009) and Washer (RF44013) into pre-drilled holes on the Door (F) as per diagram.
