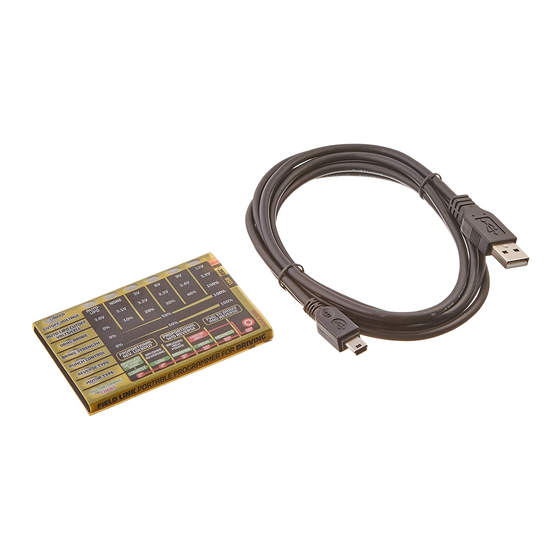

Castle Creations FIELD LINK PORTABLE PROGRAMMER FOR DRIVING Quick Start Manual

ERROR CODES:
All LEDs flashing in alternating half on, half
off pattern.
An unrecognized controller is plugged into
the Field Link Card. Please ensure that you
are connecting a supported device, if the
controller is supported, you may need to
update the software on the Field Link Card
itself. Use your computer to download the
newest version of Castle Link and connect
the Field Link Card to your computer using
the USB port on the Field Link. Castle Link
will prompt you to automatically install any
updates to your Field Link Card.
All "Value" LEDs flash for a particular
setting.
The setting's current value is not an option
on the Field Link device. For instance, you
could have programmed a custom value for
'Cutoff Voltage' using Castle Link software
and your computer. You can simply press the
button and skip this setting, it will remain at
its current value. If you want to change it,
press and hold the button as detailed on the
interior of this card. Note that you will have
to use the Castle Link application to go back
to the custom setting.
Field Link Car Header Card 095-0081-02.indd 1
CHANGE THE FOLLOWING SETTINGS
WITHOUT A COMPUTER*
1. Cutoff Voltage 5. Punch Control
2. Auto LiPo cutoff volts 6. Reverse Type
per cell (3.0, 3.1, 3.2,
7. Motor Type
3.3, 3.4, 3.5)
8. Motor timing and
3. Drag Brake
CHEAT mode
(Castle High Energy
4. Brake Strength
Advanced Timing)
Works with all Castle Link compatible car
products.
CONNECTS YOUR CONTROLLER TO YOUR
COMPUTER FOR COMPLETE CASTLE
LINK COMPATIBILITY.
*Field Link offers access to the most commonly used settings without a computer.
DOES IT WORK WITHOUT A COMPUTER
OR NOT?
Yes, mostly. The card is programmed to work with the latest controllers and software
when it leaves the Castle workshop. It will work with all Castle Link compatible
controllers running software released since 2007. Go to www.castlecreations.com for
more details. There is always a chance that we will upgrade the controller firmware
down the road and that upgrade may require that the Field Link be upgraded too. That
is easily accomplished, but it will require a computer running the latest version of Castle
Link that is always available for free on the Castle website. We'll also be happy to
upgrade it for you if you drop it in the mail to us.
Castle Creations, Inc. warrants this product to be free from manufacturing defects
for a period of one year from date of purchase.
Safety First!
Castle Creations, Inc., is not responsible for your use of this product, or for any
damages or injuries you may cause or sustain as a result or its usage. An electric
motor that is connected to a battery and speed control may start unexpectedly
and cause serious injuries. Keep the propeller away from your body and others at
all times. Always observe local laws regarding the operation of remote controlled
aircraft.
This product may contain chemicals known to the State of California to cause cancer
and or birth defects or other reproductive harm.
P/N: 010-0063-00
