Summary of Contents for Eventide H949

  • Page 1 User Guide...
  • Page 2 Copyright 2021, Eventide Inc. P/N: 141260, Rev 6 Eventide is a registered trademark of Eventide Inc. AAX and Pro Tools are trademarks of Avid Technology. Names and logos are used with permission. Audio Units and macOS are trademarks of Apple, Inc.

  • Page 3: Table Of Contents

    Main Level ........10 2.2 H949 Dual Harmonizer® Controls ......11 Stereo Feedback .

  • Page 4: Welcome

    Welcome part 1 H949 Single Harmonizer® H949 Dual Harmonizer®...

  • Page 5: About This Product

    This package includes a stunning recreation of the H949 Harmonizer®, as well as a Dual H949 version, which recreates the popular technique of running two H949 units in parallel to create lush doubling and other interesting effects.

  • Page 6: H949 Harmonizer

    Also, be sure to audition the two pitch algorithms provided for the variety of sources you may feed into it. The original H949 hardware unit featured two outputs - a Main Output, which passed the effected signal, and a Delay Only Output, which passed a delayed (but otherwise non-effected) signal.

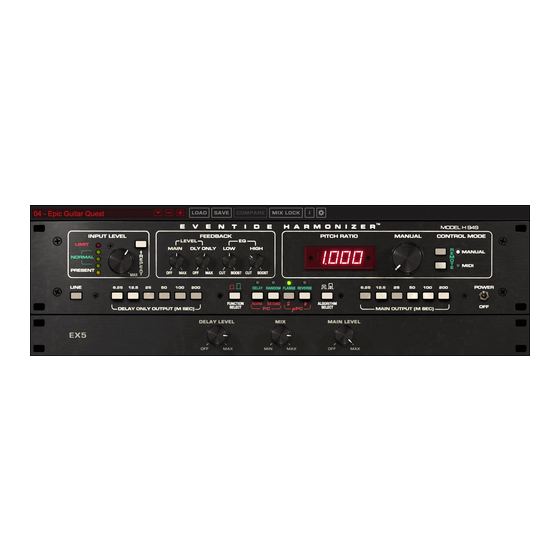

  • Page 7: H949 Single Harmonizer® Controls

    2.1 H949 Single Harmonizer® Controls Main H949 Panel Line When the Line control is IN the unit is actively processing audio; when it is OUT the unit is bypassed and passes audio directly from input to output. Input Level This is used to set the optimum operating level for the system.

  • Page 8: Repeat

    Repeat This locking pushbutton is used to capture and repeat audio segments. Pressing it captures the last 400 ms of audio and re- circulates it until Repeat is pressed again. Remember that pressing Repeat captures the signal content of the current memory buffer. If you are listening to a delayed out- put, part or all of the segment heard immediately before press- ing Repeat may be lost.

  • Page 9: Feedback

    Feedback The Feedback controls route a portion of the output signal back to the input. The output of these controls is mixed with the input signal, but is independent of the gain adjustment provided by Input Level. Gains are normalized so that, with EQ controls ap- proximately centered, the feedback level varies from 0 to 100% (loop gain of unity or ”infinite”...

  • Page 10: Pitch Control/Readout

    Function Select The Function Select button and the 4 switches to its right allow you to select the basic operating modes of the H949. When pressed IN, the 4 switches function as labeled in red below each switch. When the Function button is OUT, the switches function as labeled in green above the switches.
  • Page 11 EXTEND – permits extension of the length of the audio seg- ment over which pitch change will be affected, up to the full extent of the H949 memory (400 ms). N.B. Main Out- put delay is not available in Extend mode – the Main Output delay switches are instead used to determine the length of the audio segment used for pitch change.

  • Page 12: Algorithm Select

    Algorithm Select The H949 allows you to select one of two pitch change algo- rithms in order to support optimal pitch change with a vari- ety of source material. In general, Algorithm 2 is glitch free, but will add varying degrees of coloration to the signal, and is more suitable for extreme pitch ratios.

  • Page 13: Delay Level

    This parameter controls the level of the Delay Only Output from the H949 unit. Mix Level This parameter sets the overall balance of wet signal to dry sig- nal. Main Level This parameter controls the level of the Main Output (pitch shifted output) from the H949 unit.

  • Page 14: H949 Dual Harmonizer® Controls

    Of course, you can also use the H949 Dual to create a wide variety of other interesting sounds. The H949 Dual includes two Main Panels (as described above), and an Expansion Panel with several additional controls.

  • Page 15: Stereo Width

    This parameter controls the level of the Delay Only Output from the H949 units. Mix Level This parameter sets the overall balance of wet signal to dry sig- nal. Main Level This parameter controls the level of the Main Output (pitch shifted output) from the H949 units.

  • Page 16: Working With The Harmonizer

    3.1 Playing the Harmonizers with a MIDI Keyboard A MIDI keyboard set to send MIDI on the H949’s MIDI Channel can be used to control the pitch ratio in discrete musical steps. Middle C on the keyboard will set Unison on the Harmonizers;...
  • Page 17 Figure 3.1: Pitch Ratio Readouts for Various Musical Relationships...

  • Page 18: Preset Bar

    3.2 Preset Bar Located at the top of the H949 Harmonizer® Plug-In, the Preset Bar lets you load and save presets, along with several other features. When H949 Harmonizer® is installed, a library of settings is placed into the <user>/Mu- sic/Eventide/H949 Harmonizer/Presets folder (Mac) or the <user>/Documents/Even-...

  • Page 19: Conclusion

    Conclusion part 4 We hope you enjoy the H949 Harmonizer® plug-in and put it to good use in all of your mixes. Please be sure to check over Eventide’s other Native Plug-In offerings for more unique and interesting effects.
