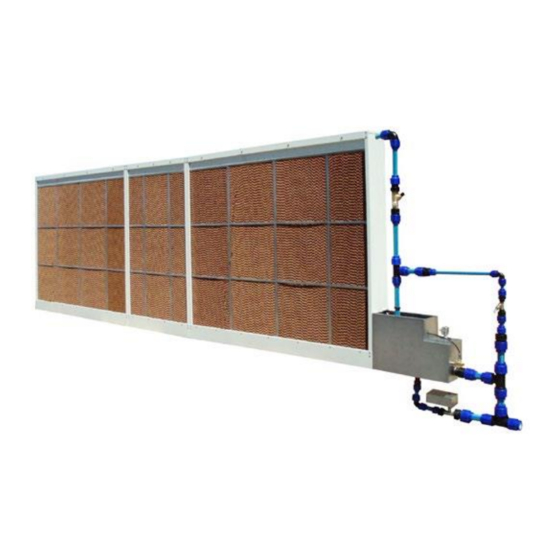

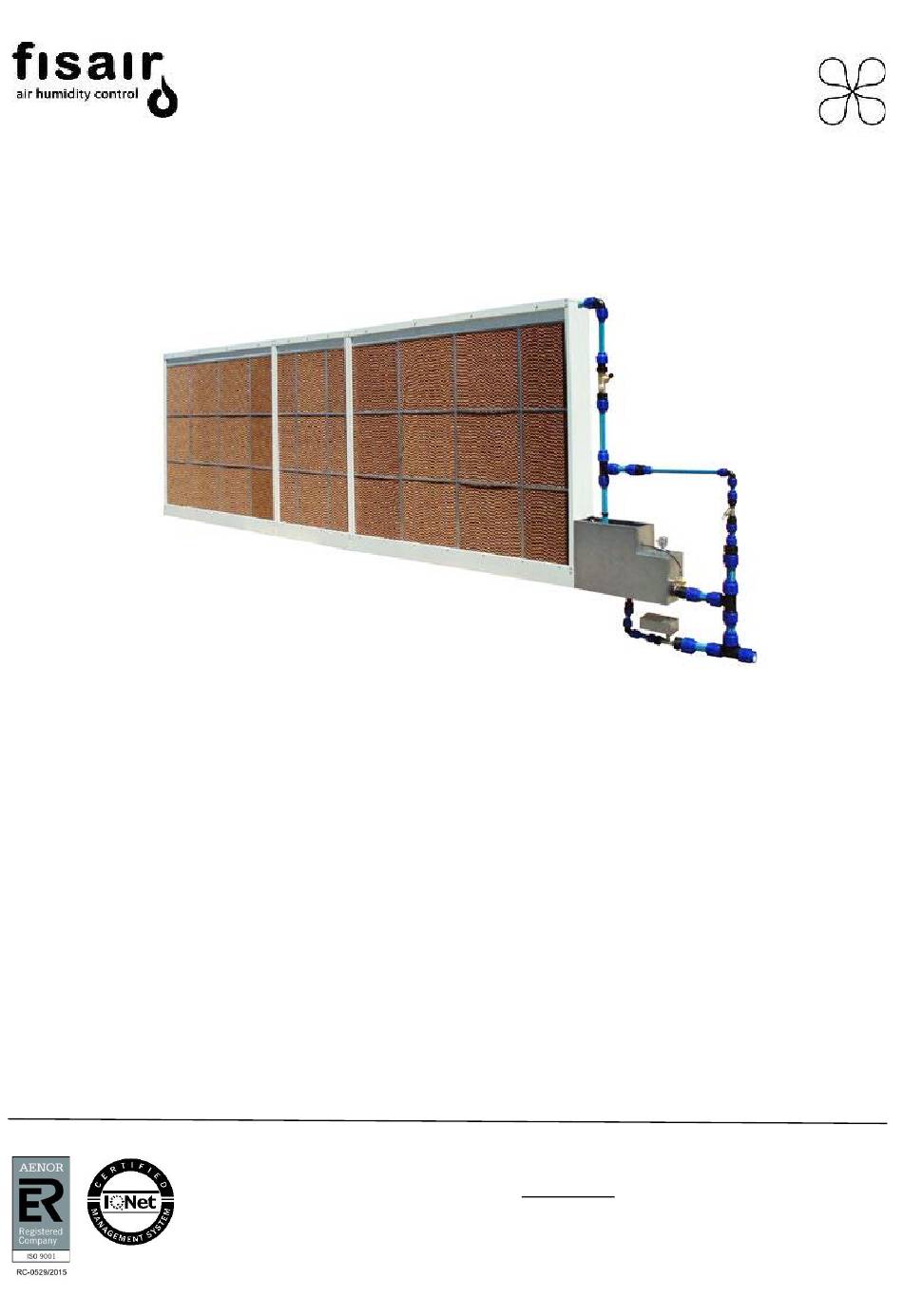

HEF7 SERIES
INSTALATION AND MAINTENANCE MANUAL
Adiabatic cooling system for
Air-condensed Water Chillers
MHEF7-EN-21-0
In compliance with European Union standards for machinery safety,
it is essential to read this manual in detail before installing units.
FISAIR S.L.U. C/ Uranio, 20, 28330 Madrid, Spain.
Tel: (+34) 91 692 15 14 Fax: (+34) 91 691 64 56 | info@fisair.com | fisair.com
Advertisement
Table of Contents
Related Manuals for fisair HEF7 Series
Summary of Contents for fisair HEF7 Series
- Page 1 In compliance with European Union standards for machinery safety, it is essential to read this manual in detail before installing units. FISAIR S.L.U. C/ Uranio, 20, 28330 Madrid, Spain. Tel: (+34) 91 692 15 14 Fax: (+34) 91 691 64 56 | info@fisair.com | fisair.com...
- Page 2 HEF7 series manual 2...
-
Page 3: Table Of Contents
HEF7 series manual 3 Index General description ..........................4 1.1. Safety instructions ........................5 HEF7 nomenclature ..........................7 Rating plate and machine type ......................8 High efficiency HEF7 evaporative panel .................... 10 4.1. ORGANIC EVAPORATIVE PANEL .................... 10 4.2. INORGANIC EVAPORATIVE PANEL ..................11 Unit components .......................... -
Page 4: General Description
EVAPORATIVE HUMIDIFIER OPERATING PRINCIPLE FISAIR evaporative humidifier units are designed to FISAIR evaporative humidifiers work in a similar way to increase the water vapour content of the treated air, natural phenomena occurring in rivers, lakes and seas. through the natural evaporation of water in its liquid All that is added to the air is pure water vapour. -
Page 5: Safety Instructions
FISAIR, o si los productos han sido modificados o alterados sin el consentimiento por escrito de FISAIR, o si tales productos han sido sometidos a un mal uso, mala manipulación, alteración, mantenimiento inadecuado o muestran consecuencias de accidente o utilización negligente. - Page 6 All defects, such as loose connections or burnt cables, must be repaired immediately. The HEF2E control panel load break switch, whether it is external or a FISAIR CCB2.0 or CCE2.0 panel, must be set to position “0” (lock) before performing any maintenance on the unit.
-
Page 7: Hef7 Nomenclature
HEF7 series manual 7 HEF7 nomenclature HEF7 MODEL HEF7 - VCS906-E6 Factory chiller model PUMPING GROUP FOR HEF7 Pumping group - 230V-IN-50/60Hz Line voltage Basic control panel / (CONTROL PANEL) CCB2.0- 230V-IN-50/60Hz Line voltage... -
Page 8: Rating Plate And Machine Type
The rating plate shows the following information for the equipment: • Model: description of the particular HEF7 device • Serial No.: equipment serial number • FISAIR devices it can be joined with • Machine type: Machine or Partly completed machinery • Designed in accordance with directive •... - Page 9 HEF7 series manual 9 Machine type rating plate: Partly completed machinery (quasi-machine) type rating plate:...
-
Page 10: High Efficiency Hef7 Evaporative Panel
HEF7 series manual 10 High efficiency HEF7 evaporative panel 4.1. ORGANIC EVAPORATIVE PANEL • Maximum performance: Organic Media is designed to provide the largest possible air- to-water contact surface area (approximately 460 m2/m3). Such a large area enables optimal evaporative cooling and humidification from the evaporation. -
Page 11: Inorganic Evaporative Panel
HEF7 series manual 11 4.2. INORGANIC EVAPORATIVE PANEL These panels are made of fibreglass with a special coating to enable a greater absorption capacity and ensure constant evaporative humidification and cooling, even at high air speeds. They are made of fireproof inorganic material. -
Page 12: Unit Components
HEF7 series manual 12 5. Unit components... - Page 13 HEF7 series manual 13 The unit serial number and the dimensions of the cassette are required for evaporate cassette spare parts. L = Cassette length H = Cassette height E = Cassette thickness For further information on parts of systems, please contact the manufacturer.
-
Page 14: Operating Principle
HEF7 series manual 14 6. Operating principle Water Supply Constant bleed-off Overflow Drainage Regulation valves with Flow meter (Irrigation) Regulation valves with Flow meter (Bleed-off) Filling Solenoid Valves Max/Min level detector Valves with actuator (Drainage) Water Recirculation Pump... -
Page 15: Installation Requirements
HEF7 series manual 15 7. Installation requirements PLACEMENT AND SERVICING SPACE OVERVIEW Humidifiers are normally placed just before the coil To ensure optimum performance and maintenance, and before the sensible exchange in the air cooling humidifiers must be placed on a level surface, with a drain, so possible leaks during installation, start-up, system. - Page 16 HEF7 series manual 16 EVAPORATIVE PANEL DRYING TIME To ensure complete drying of the cooling pad, after a work period, the air fan of the UTA must be working during the times set out in the following table: Before drying the evaporation panel, the ventilation must be stopped for 10 minutes and watering continued with the cassettes.
-
Page 17: Connections And Regulation
HEF7 series manual 17 8. Connections and regulation OVERVIEW WATER CONNECTIONS • Connect the water network supply to the ½” filter in Y, FISAIR HEF7 evaporative humidifiers essentially and this to the solenoid supply valve. work in accordance with the irrigation of the evaporative panels. - Page 18 HEF7 series manual 18 Remark 3: How to avoid standing water in the water supply: If the distance from the supply valve to the main water supply line (with continuous water flow) ≥ 2m: Install a 3-way valve, before the cut-off valve, with a return line to the main water supply line, to avoid water retention.
-
Page 19: Recirculation Pump Electricity Connection
HEF7 series manual 19 9. Recirculation pump electricity connection Connect the electricity supply cable to the terminal box of the water irrigation pump using an appropriate connection (IP-55 or higher). La protección y operativa de alimentación TM 32/8 eléctrica a la bomba debe ser determinada... -
Page 20: Level Detector Connection
HEF7 series manual 20 PUMP TECHNICAL DATA Service voltage (Vac) Frequency (Hz) Electrical power supply Motor nominal power (W) Consumption (A) Degree of protection Degree of protection according to IP 68 EN 60529 Enviromental conditions Max. fluid temperature (ºC) Functional data Max working height (m) Max. - Page 21 HEF7 series manual 21 N.C. = normally closed ALTO= High level S2 N.A. = normally open BAJO= Low level S1 C= Common [Remark] Pin 5 (/) must be left without connection. Mesh to fix the float: Remark: Remove the fixing mesh when the equipment is placed on its final location just before commissioning.
-
Page 22: Solenoid Valve Electricity Connection
HEF7 series manual 22 Solenoid valve electricity connection The water supply NC solenoid valve of the tank is composed of the body of the valve, the coil and the connector. The coil and the connector are supplied for a 24Vac or 230Vac connection. -
Page 23: Connection Of The Motor-Zone Valve N.c. For Automatic Emptying / Draining
HEF7 series manual 23 12. Connection of the motor-zone valve N.C. for automatic emptying / draining [Remark]: When this motor-zone valve is connected to the CCB2.0 (Basic Control Panel), it will be necessary to connect the S4 cables (Black/Red) and S6 ones (Black/Pink) to the “Feedback”... - Page 24 HEF7 series manual 24 GMA12..1 / GMA32..1 Electric Diagram connections 2 points 2 points control control AC 230 V AC 24 V Dimensions...
- Page 25 HEF7 series manual 25 Manual positioning Position Block Unblock Adjusting: A, B Auxiliary contacts Factory setting A= 5º b= 85º Cable labeling Cable Meaning Code Color Abbrev. Actuators System potential AC 24 V/DC 24…48 V AC 24 V DC 24…48 V...
-
Page 26: Setting The Valve Regulating Irrigation Flow
HEF7 series manual 26 13. Setting the valve regulating irrigation flow Set the valve for the irrigation of the panels to ensure uniform watering of the surface area of the panels. A value of around 1 liter/second for each square meter of irrigation surface is enough to exceed the water required for evaporation. -
Page 27: Setting The Valve Regulating The Bleed-Off Flow
HEF7 series manual 27 Setting the valve regulating the bleed-off flow Water evaporation is caused by a higher water vapour pressure in the evaporative panel than in the air moving across it. Because only the water evaporates, dissolved mineral salts remain in solution, and gradually increase in concentration, despite new water being added to compensate for the evaporation. - Page 28 HEF7 series manual 28 Set the flow of the bleed-off valve by removing the handwheel from its parked position and placing it on the flow meter. It can then be swivelled to set the required flow. Once the flow has been set, place the handwheel in its parked position once again.
-
Page 29: Start-Up Recommendations
(application in English) The operation of the FISAIR HEF7 Series evaporative humidifier is mainly determined by the irrigation of the evaporative panels. The humidifier will work as such whenever there is a current of air passing through it and the water pump irrigates the panels. -
Page 30: Maintenance And Cleaning
HEF7 series manual 30 16. Maintenance and cleaning IMPORTANT Request maintenance of your units by contacting: sat@fisair.com service@fisair.com https://fisair.com/es/servicio/mantenimientos/ (application in Spanish) https://fisair.com/service/maintenance/ (application in English) Evaporative humidification: a natural method that does not carry bacteria. 16.1. The operational features of evaporative humidifiers are based on the natural effect of the water evaporation when an air flow goes through/by a wet surface (is the same natural principle that occurs when water evaporates from waterfalls, rivers, lakes, seas...). -
Page 31: Scale Formation Process
HEF7 series manual 31 16.2.2. Scale formation process Mains water is not pure as it contains dissolved calcium and magnesium salts (among others) that can be deposited in the form of scale. These salts can clog and harden the inorganic panel and make its water absorption more difficult, thus decreasing performance. - Page 32 HEF7 series manual 32 Maintenance and cleaning Humidifier components are very easy to maintain. Maintenance The following elements require maintenance: Element and Cleaning The irrigation pump: The most important thing is to monitor to ensure dirt does not obstruct the...
- Page 33 HEF7 series manual 33 As regards the disinfection of the remaining Once the cover has been removed, the central components, the same bleach disinfectant solution cassettes are taken out so the cassettes each end can can be employed. The number and regularity of the...
-
Page 34: Machine Conformity Declaration
17. Machine conformity declaration... -
Page 35: Cuasi Machine Conformity Declaration
Cuasi machine conformity declaration... -
Page 36: Warranty
19. WARRANTY...
