American Marine PINPOINT User Manual

American Marine is proud to introduce the PINPOINT™ Wireless
Thermometer. Utilizing a radio wave signal, the remote sensor(s) will
measure the temperature at the waterproof probe tip and send the
information to the PINPOINT Temperature Display Monitor, which will
display the temperature in Fº or Cº degrees. The PINPOINT Wireless
Thermometer can accept a maximum of 4 remote sensors thus
expanding the monitoring capability to 4 separate locations to be
displayed on the same PINPOINT Temperature Display Monitor.
NOTE: The PINPOINT Wireless Display Meter is NOT waterproof and
must be operated on a dry surface. Liquid contact with any of the printed
circuit boards will cause corrosion and void warranty.

•Set-up For a Single Remote Sensor

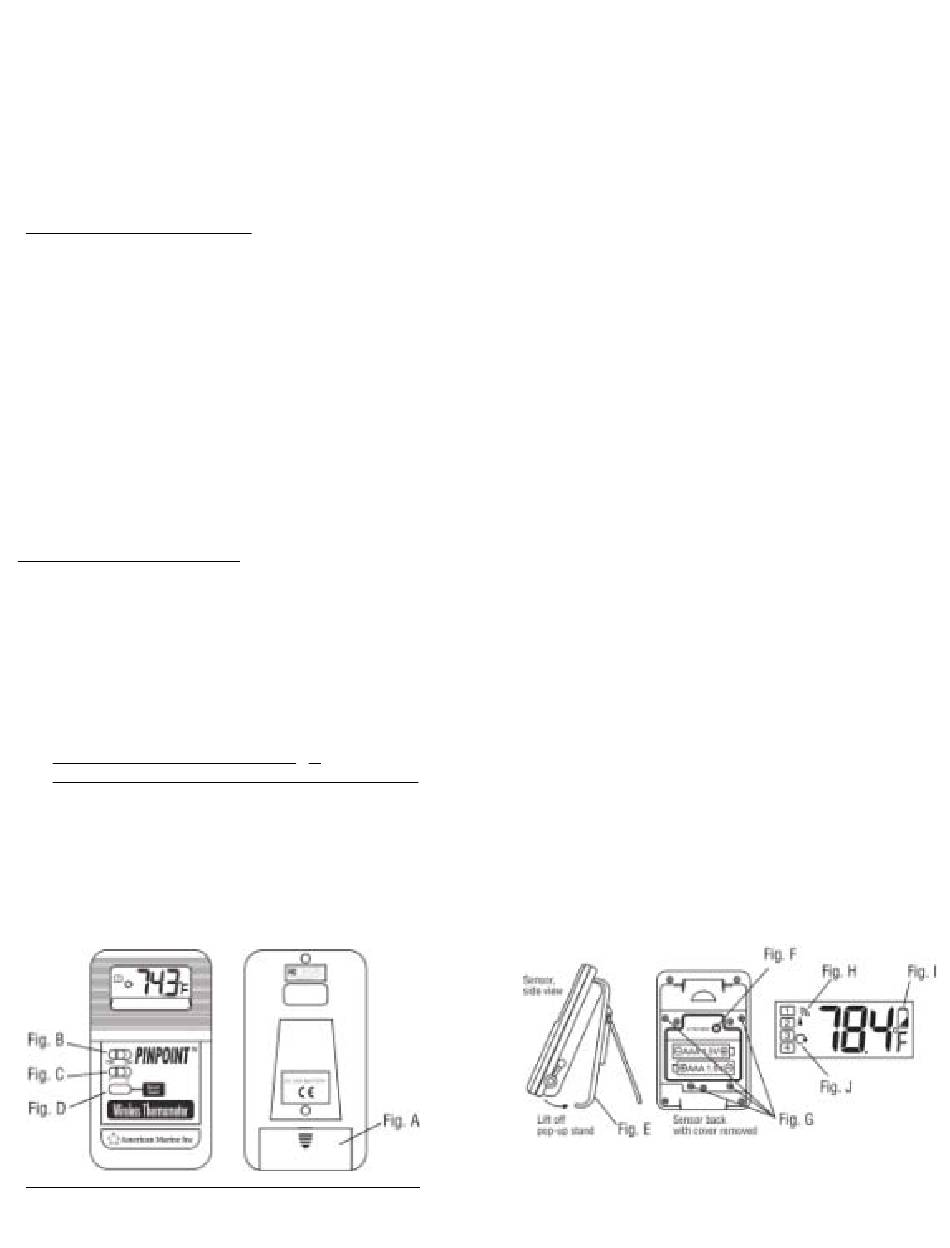

1)Remove the battery compartment cover (Figure A) on the back of the
PINPOINT Temperature Display Meter and insert 2 AAA batteries in the
proper positions. Replace the cover.
2)On the front of the PINPOINT Temperature Display Meter, slide the
top switch (Figure B) to the ON position then select to display either Fº or
Cº with the middle switch (Figure C). When you see three minus signs
flashing the meter is ready to receive a temperature signal.
3)On the back of the Remote Sensor carefully pry off the pop up stand
(Figure E). Using the supplied screwdriver, remove the 4 philips head
screws (Figure G) and lift off the battery cover. Insert 2 AAA batteries in
the proper positions. Re-install the battery cover.
The Remote Sensor will automatically send a signal to the display meter
within 1 minute. The PINPOINT Temperature Display Meter will display
the temperature of the #1 sensor. Remote sensors can transmit
temperature signal as far as 100 feet (30 Meters) in optimum conditions.
Transmitting distances through walls and other obstacles may reduce the
effective range.

•Using Additional Remote Sensors

After the successful installation of Remote Sensor #1, you may now
install additional remote sensors up to a maximum of 4, if desired. You
can place another sensor to monitor heat inside your lighting, on the
ballast or even put a sensor outside. On the back of Remote Sensor #2
carefully pry off the pop up stand (Figure E). Using the supplied
screwdriver, remove the 4 philips head screws (Figure G) and lift off the
battery cover. Insert 2 AAA batteries in the proper positions. Re-install
the battery cover. Within 1 minute Remote Sensor #2 will automatically
send a signal to the display meter and will be recorded as the #2 remote
sensor. This process can be repeated for up to 4 remote sensors.
•Display a Single Temperature Sensor or
•Scroll Function will Display all the Temperature Sensors
By pressing the remote sensor button (Figure D) on the front of the
PINPOINT Display Meter, you may display any one of the remote
sensors or have the display cycle through all available remote sensors.
Each time you press the Sensor Select button, the display will move to
the next available remote sensor. Its corresponding number will be
shown on the left side of the display. Once you reach the last available
sensor, the Scroll Function Indicator (Fig. J) will be shown and the
display meter will begin to cycle through all available sensors.
Please read "Important Points to Remember" printed on back
PINPOINT
Thermometer®
*includes 1 remote sensor
American Marine Inc.
54 Danbury Road, Suite 172
Ridgefield, CT 06877 U.S.A.
Phone/FAX 914-763-5367
©Copyright 2003
American Marine Inc.
