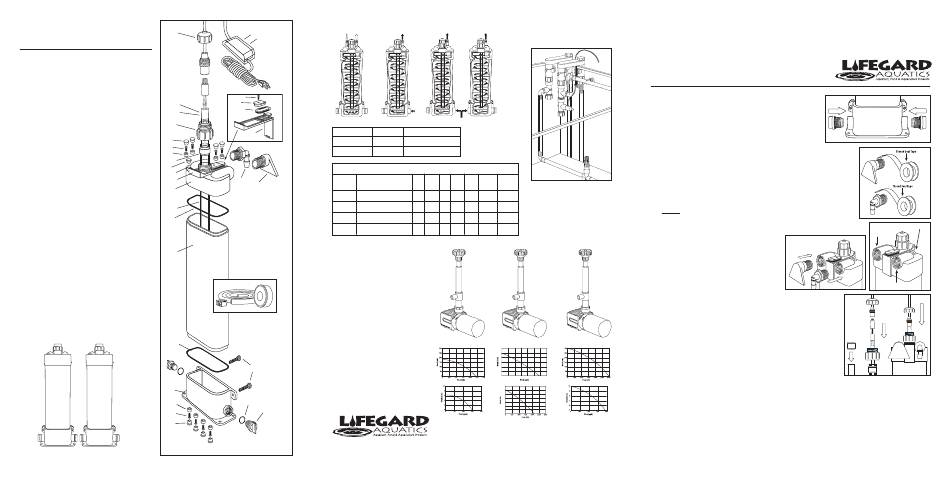

PARTS BREAKDOWN

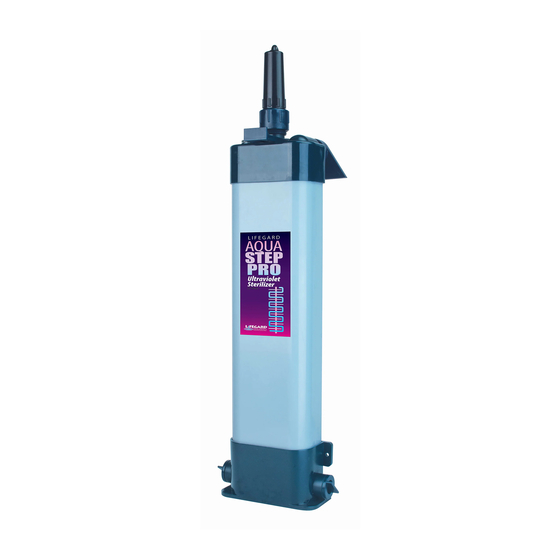

AquaStep Pro 15W & 25W
1.
ITEM PART#
QTY. DESCRIPTION
1. R440402
1 Quartz Sleeve Cap
1A. R175108
1 Compression Coupling
2. R440501
1 UV Bulb 15 Watt
3. R440502
1 UV Bulb 25 Watt
4. R440625
1 Quartz Sleeve
2.
5. R440401
1 Quartz Sleeve Gasket
3.
6. R270248
2
3
/
" MPT x
1
/
" Barb Elbow
4
2
1A.
7. R270229
1 Tension Spring
8. R01045
1 #6 x
/
" Screw
1
2
16.
9. R270222
1 Tension Retainer
15.
14.
10. R270242
1 Mounting Bracket
5.
11. R270244
1 Water Fall Assembly
12.
13.
12. R172392C 1 Clear View Port
10.
13. R172393
1 "O" Ring, Clear View Port
18.
14. R440516
8 Screw O Ring
15. R440517
8 S.S. Screws
4.
16. R440518
8 Screw Cap
17.
17. R440520
2 D Shaped Sealing O Ring
18. R440521
1 Replacement Housing Top
19. R440522
1 Replacement Housing Body
19.
20. R440523
1 Replacement Housing Bottom
21. R36021
2 Adjustment Screw
22. R270218
2 Plug
23. R270228
2 O Ring for Plug
24. R270247
4 ft
/
" ID x
/
" OD Valve Tubing
1
11
2
16
25. R175163
1 Thread Seal Tape
26. R175013
3 Hose Clamp
27. R440504
1 Ballast Assembly 15/25 Watt 115V
28. R440506
1 Ballast Assembly 15/25 Watt 230V
17.
20.
14.
15.
16.
AquaStep Pro 15 Watt and 25 Watt
5
Typical AquaStep Pro Flow Set-Ups
27.
28.
8.
9.
7.
Wattage
Bulb Length Recommended Pump
10.
AquaStep 15W 17.83"
AquaStep 25W 17.83"
Sizes and Specifications:
Part #
Description
6.
11.
R440515 15W UV Sterilizer 115V
R440252 25W UV Sterilizer 115V
R440508 15W UV Sterilizer 230V
R440509 25W UV Sterilizer 230V
25.
24.
26.
21.
23.
22.
Email: info@lifegardaquatics.com
www.lifegardaquatics.com
CustomFlo
Water System
QuietOne 1200 or 2200
QuietOne 2200 or 3000
Inlet Outlet Ht. Width Depth Flow Rate Flow Rate
(gph)
(liters/hr)
3
/
"
3
/
" 23" 7.5" 3"
450
1703
4
4
3
/
"
3
/
" 23" 7.5
3"
760
2877
4
4
3
/
"
3
/
" 23" 7.5" 3"
450
1703
4
4
/
"
/
" 23" 7.5
3"
760
2877
3
4
3
4
Quiet One 1200
Quiet One 2200
Quiet One 3000
12
10
8
6
4
2
0
0
100
200
300
400
500
600
700
3.5
3
2.5
2
1.5
1
0.5
0
6
INSTRUCTION MANUAL
AquaStep
UV Sterilizer
15 Watt - 25 Watt Models
Initial Set Up
A. Screw in plugs on each side of the manifold. Make
sure plug "O" rings are seated properly. The bottom
inlet ports will not be needed in this type of installation.
Thread seal tape is recommended. ('O-rings need
periodic silicone lubrication).
B. Wrap thread seal tape on the male threads of one 3/4" MPT x 1/2"
barb elbow and the waterfall assembly. Wrap each fitting 5-7 times
with tape. Only one 3/4" MPT x 1/2" barb elbow will be needed for
this type of installation.
C
Screw in the 3/4" MPT x 1/2" barb elbow into top inlet port
.
NOTE the inlet port is located in front of the UV light indicator.
D. Screw in the waterfall assembly into the outlet port located at the
top of the AquaStep Pro.
E. Slide the rubber gasket onto the hard
quartz sleeve so that the edge of the
sleeve is visible as shown below (Fig. F).
F. Slide the quartz sleeve into the
AquaStep Pro unit.
G. Screw on Compression Coupling. Hand tighten only.
H. Take out the bulb and ballast from box. Note: There is only
one way to connect the bulb to the ballast. The four pin
connector on the bulb needs to match the four holes on the
ballast end. DO NOT use excessive force as this may damage
the parts. Do not pull fragile wires connecting the male 4-pin
connector to the quartz bulb as this can damage the bulb.
I. Gently slide quartz bulb through Compression Coupling
and into quartz sleeve until it reaches bottom. Do not drop bulb
into quartz sleeve.
J. Screw on moisture resistant Quartz Sleeve Cap.
Hand tighten only
K. Your AquaStep Pro UV Sterilizer is ready for use.
#R440630
PRO
®
A.
B.
C.
UV Light Indicator
Outlet Port
D.
Inlet Port
J.
H.
F.
I.
E.
G.
1
Advertisement
Summary of Contents for Lifeguard Aquatics AquaStep PRO R440515
- Page 1 PARTS BREAKDOWN Typical AquaStep Pro Flow Set-Ups INSTRUCTION MANUAL CustomFlo AquaStep AquaStep Pro 15W & 25W Water System ® ITEM PART# QTY. DESCRIPTION 1. R440402 1 Quartz Sleeve Cap UV Sterilizer 1A. R175108 1 Compression Coupling 15 Watt - 25 Watt Models 2. R440501 1 UV Bulb 15 Watt 3. R440502 1 UV Bulb 25 Watt...
- Page 2 A. Side or Back of the Aquarium Installation B7. Attach the other end of the flexible tubing to the 3/4” MPT x barb elbow located at the top flexible tubing can be attached to a rigid plastic “U” or “J” tube (not supplied in this unit) inlet side of the AquaStep Pro. Cut the tubing to the proper length. Attach a hose clamp that hangs on the aquarium. Attach hose clamp to the rigid tube and tighten accordingly. A1. Install the AquaStep Pro UV Sterilizer on the side and tighten accordingly. We recommend using the CustomFlo Water System in place of the “U” or “J” tube for on back of the aquarium by pushing the mounting professional looking installlations. B8. Attach the rest of the tubing to the 3/4” MPT x 1/2” barb elbow located at the top outlet side bracket spring attachment located at the top with of the AquaStep Pro. Attach a hose clamp and tighten accordingly. D8. Adjust the by-pass valve to direct appropriate amount of water into the UV. See Size and your thumb and hang the unit over the edge of the Specification Chart for proper flow rate. aquarium. It may be necessary to move the triangular B9. Place the other end of the flexible tubing up and over the side or back of the aquarium so portion of the water fall assembly to one side so that that the water returns to the aquarium and agitates the surface to aerate the system. In some E. To Replace Main Body Housing Assembly the mounting bracket can be pushed far enough to cases it may be desirable to connect the flexible tubing to a rigid plastic “U” or “J” tube (not It is recommended the main body housing assembly clear the moulding on the top edge of the aquarium.
