Summary of Contents for ICON Upod-nanoSE

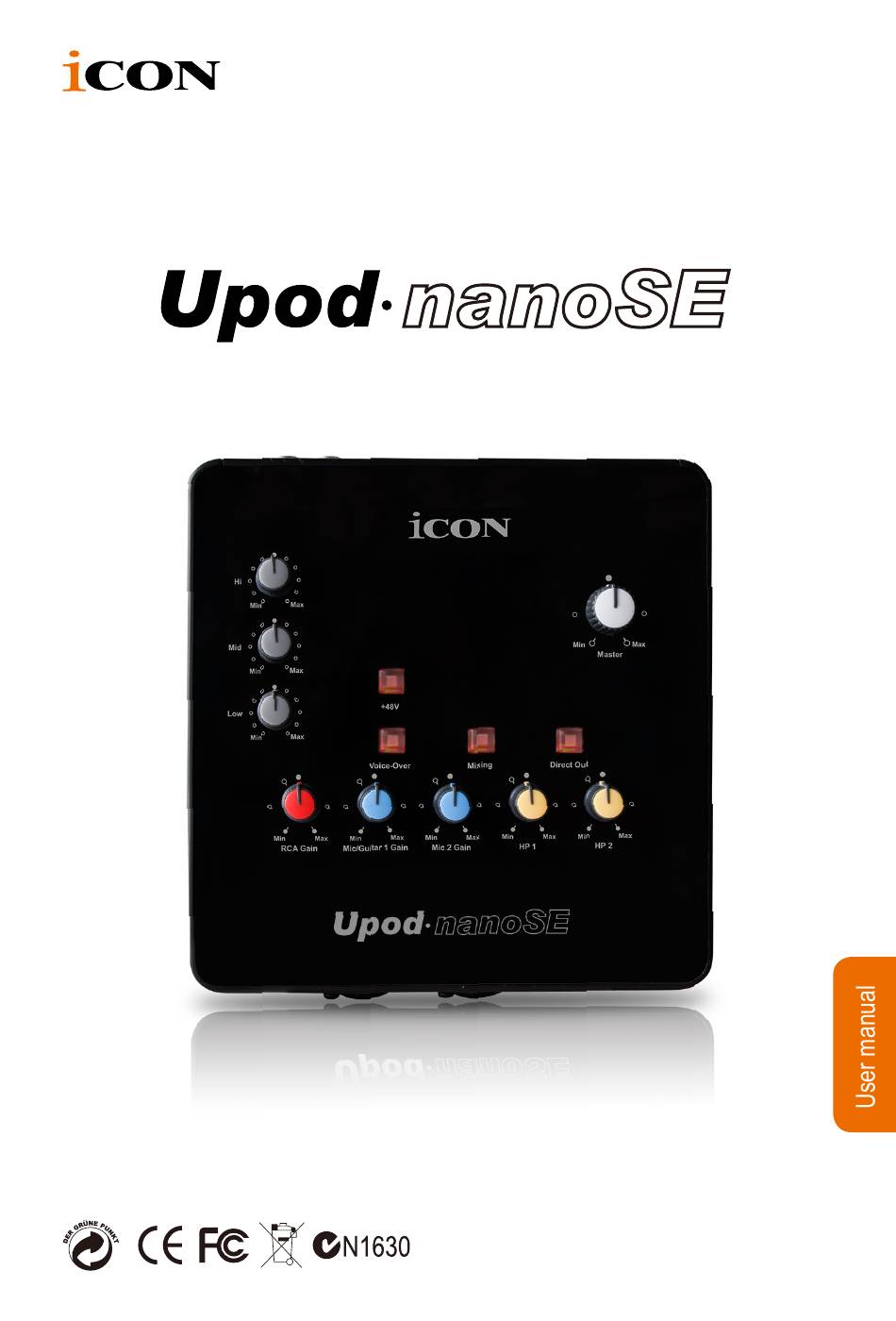

- Page 1 2 Mic/1-Guitar in, 2 Line out recording USB Interface...
- Page 2 Important Safety Instructions 1. Read this manual thoroughly before using this unit. 2. Keep this manual for future reference. 3. Take notice of and comply with all warnings included in the user's manual or indicated on the appliance. 4. Follow all instructions included in this manual. 5.
-
Page 3: Table Of Contents
Contents Introductions .....................4 What’s in the package? ................4 Register your ICON ProAudio product to your personal account ...5 Features ....................6 Front/Top Panel ..................7 Rear Panel....................9 Hardware Connections ................11 Minimum System Requirements.............12 Specifications ..................13... -
Page 4: Introductions
Introductions Thank you for purchasing the ICON ProAudio Upod nanoSE digital audio Interface. We sincerely trust this product will provide years of satisfactory service, but if anything is not to your complete satisfaction, we will endeavor to make things right. -
Page 5: Register Your Icon Proaudio Product To Your Personal Account
Register your ICON ProAudio product to your personal account 1. Check serial number of your device Please go to http:// iconproaudio.com/registration or scan the QR code below. Input your device’s serial number and the other information on the screen. Click “Submit”. -
Page 6: Features
Features The ICON Upod nanoSE USB recording interface provides an audio input and output module with USB connectivity. Main features include: ● 16-Bit 48KHz 2 mic-In/1 guitar-In, 2-Out USB Recording Interface ● 2x2 analog I/O full duplex recording and playback ●... -
Page 7: Front/Top Panel
Front/Top Panel 1. “Mic” inputs 1/2 These hybrid connectors will accept a standard 3-pin XLR plug or a 1/4” TS connector. For condenser microphone with +48V phantom power or dynamic microphone. Note: For dynamic microphone user, please make 3-pin XLR (Balanced) sure +48V phantom power switch is “OFF”... - Page 8 4. Input gain level controls 1/2 These potentiometers control the input level of the associated analog microphone (& instrument) inputs. 5. Master level control This potentiometer controls the master output level of the analog outputs. Note: Master level control will only adjust the output level of both the Line output 1/2 and the 3.5mm stereo output.
-
Page 9: Rear Panel
Rear Panel 1. RCA input connectors These are unbalanced analog inputs on RCA connectors at –10dB line level. 2. Line outputs 1/2 These are unbalanced analog outputs on standard 1/4″ TS connectors at +6dBU line level. 3. 3.5mm stereo output This is an unbalanced analog stereo output on a standard 3.5mm stereo connector at +6dBU line level. - Page 10 Different type of microphone connection method diagram Dynamic Dynamic Microphone Microphone (D2) (D2) 1/4” TR Unbalanced Condenser Condenser Microphone Microphone (M1) Balanced (M1) Note: For dynamic microphone user, please make sure +48V phantom power switch is “OFF” before you plug in your microphone, otherwise it may cause damage to your microphone.
-
Page 11: Hardware Connections
Hardware Connections Connect the Upod nanoSE digital audio interface outputs to your amplifier, powered monitors or surround system. Two-channel stereo operation, the default outputs are channels 1 and 2. If you are monitoring through headphones, connect your headphones to the device’s headphone output. -
Page 12: Minimum System Requirements
Minimum System Requirements Important: The Upod nanoSE digital audio interface is supported by Mac OS (Intel-Mac), Windows XP, Windows Vista, Windows 7 (32-bit/64-bit) and Windows 8 (32-bit/64-bit). The Upod nanoSE digital audio interface is not supported by Windows 98 or Windows Me. For Windows XP, you must be running SP1 or later. Visit the Windows update web pages to make sure you have the most current updates and fixes supplied by Microsoft. -
Page 13: Specifications
Specifications Mic Input: Frequency Response ........22Hz to 20kHz (+/-0.2dB) Dynamic Range ..........90dB, A-weighted Signal-to-Noise Ratio........-90dB, A-weighted THD+N ............<0.0061% (-86dB) Crosstalk............-85dB @ 1kHz Input Impedance: Mic in ......... 1.8K Ohms, typical Adjustable Gain ..........+39dB Inst Input: Frequency Response ........ - Page 14 Pack the unit in its original packaging including end card and box. This is very important. If you have lost the packaging, please make sure you have packed the unit properly. ICON is not responsible for any damage that occurs due to non-factory packing.
- Page 15 天猫官方旗舰店 抖音号 哔哩哔哩 微信公众号 官方售后QQ B站iCONProAudio 4006311312.114.qq.com 天猫店iconproaudio旗舰店 抖音iCON艾肯 微信号iCON-PRO 中国地区用户 Twitter Instagram Facebook Youtube www.twitter.com/iconproaudio www.instagram.com/iconproaudio www.facebook.com/iconproaudio www.youtube.com/iconproaudio Support Dashboard Website iconproaudio.com/dashboard/ www.iconproaudio.com support.iconproaudio.com...
