Power Windows
Leve-glace Electrique
Elektrische Fensterheber
Elevalunas Electricos
Dê Poder a Janelas
Alzacristalli Elettrici
Skoda Fabia (1999>3/2007)
Versioni / Models: Classic [Solo motore
per elettrificazione alzacristalli manuali
originali / Only motor for replacement
of original manual window regulators
Skoda Combi (1999>)
Versioni / Models: Classic [Solo motore
per elettrificazione alzacristalli manuali
originali / Only motor for replacement
of original manual window regulators
Skoda Station Wagon (1999>)
Versioni / Models: Classic [Solo motore
per elettrificazione alzacristalli manuali
originali / Only motor for replacement
of original manual window regulators
advised position for the switches installation
position conseillee pour l'installation des boutons
emfohlene lage für den schalterneinbau
posicion aconsejada para la instalacion de los pulsadores
posição para a inslalação dos interruptores
posizione consigliata per l'istallazione dei pulsanti
PX 4718.2099
Advertisement
Summary of Contents for PIMAX PX 4718.2099
- Page 1 Leve-glace Electrique Elektrische Fensterheber Elevalunas Electricos Dê Poder a Janelas Alzacristalli Elettrici PX 4718.2099 advised position for the switches installation position conseillee pour l’installation des boutons emfohlene lage für den schalterneinbau Skoda Fabia (1999>3/2007) posicion aconsejada para la instalacion de los pulsadores Versioni / Models: Classic [Solo motore posição para a inslalação dos interruptores...
- Page 2 left door - portière gauche - linke tür - puerta lado izquierdo - porta esquerda - porta lato sinistro THIS INSTALLATION INSTRUCTION IS FOR BOTH LEFT AND RIGHT SIDE. CETTE INSTRUCTION DE MONTAGE EST POUR LES DEUX COTES DROIT ET GAUCHE. DIESE MONTAGE-ANLEITUNG IST FÜR DIE BEIDE LINKE UND RECHTE SEITE.
- Page 3 SK18...
- Page 5 31- 01- 2012 ENGLISH ENGL ISH THIS INSTALLATION INSTRUCTION IS FOR BOTH LEFT AND RIGHT SIDE. A) BEFORE STARTING TO DISASSEMBLE THE DOOR, POSITION THE GLASS AT HALF TRAVEL. Disassemble door panel. B) Remove the three screws from the manual windows regulator and remove the piece n° 1 (photos A-B). Save the screws for later. C) Place the plate as in the photo C and fix it with the three screws previously removed at position 2, 3 and 4.

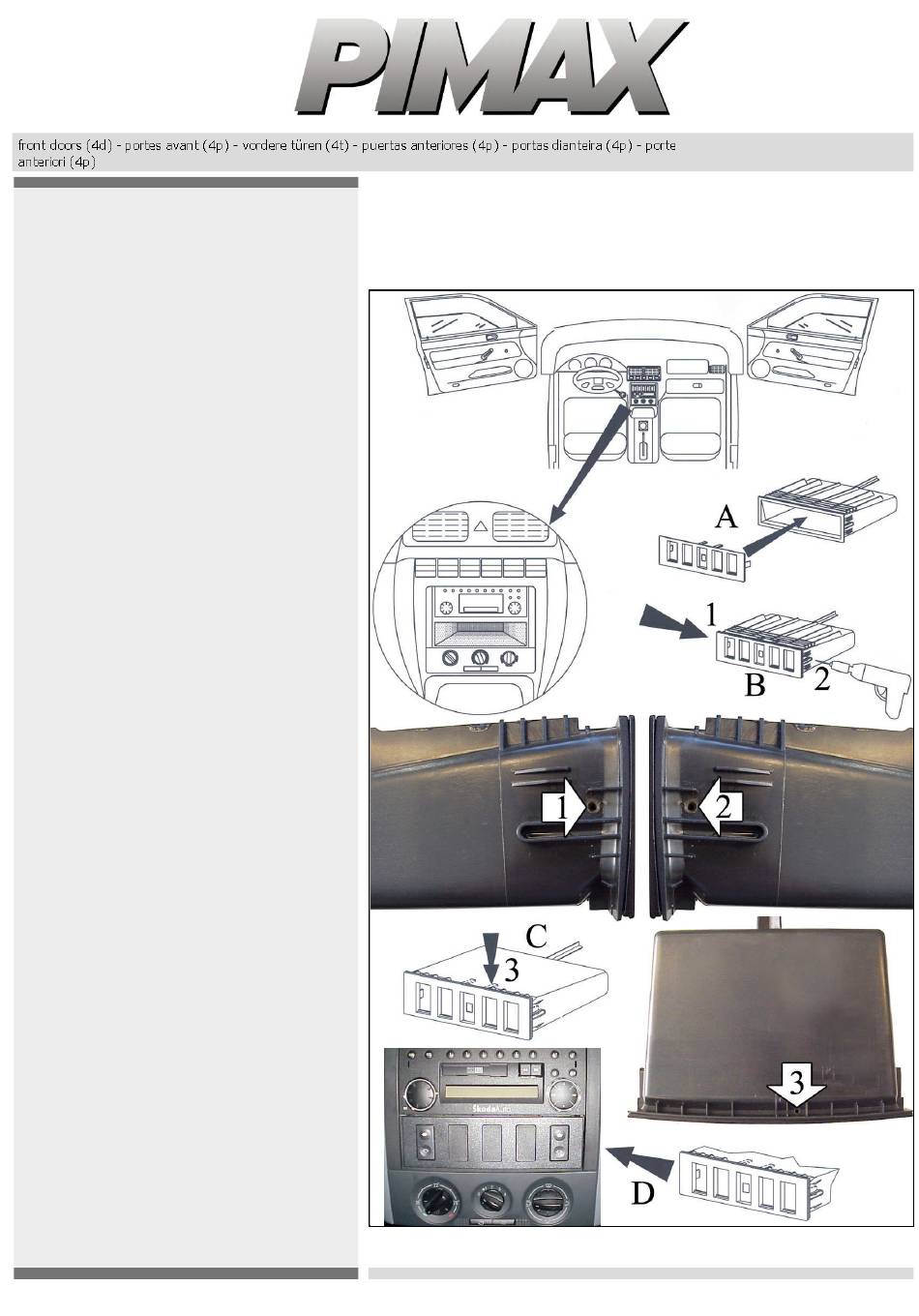

- Page 6 SK18 31- 01- 2012 ENGLISH ENGL ISH THIS INSTALLATION INSTRUCTION IS FOR BOTH LEFT AND RIGHT SIDE. SK18 ADVISED POSITION FOR THE SWITCHES INSTALLATION. Remove the glove box as shown in the drawing (point A). Insert the switch mounting; fit it and drill into positions 1 and 2 (Ø 2) through the locating wings (point B). Fix the mounting with the screws supplied into positions 1 and 2.
