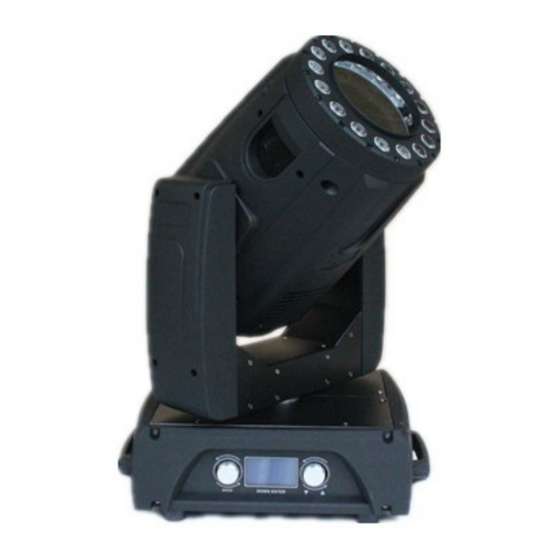

Summary of Contents for Idealight HT-LM-200SW
- Page 1 USER MANUAL 200W LED Moving Spot + 16*10W LED Moving Wash HT-LM-200SW This manual contains important information. Please read before operating fixture.
-
Page 2: Security Tips
1 SECURITY TIPS WARNING!!! To reduce the risk of fire, electric shock, or injury to persons, follow these important safety instructions: Non-professionals are not to disassemble the moving head LED unit and lighting accessories inside. Rated voltage range: AC110V-120V/60Hz or AC200V-240V / 50HZ (to be selected). -
Page 3: Functions Introduction
2 TECHNOLOGY REFERENCE 1. Voltage：AC110V-240V/50Hz-60Hz 2. Power consumptions：400W 3. Profile LED Source: Ultra bright 200W LED 4. Wash LED Source: 16x10w fourcolor LED 5. Product size: 45x33.5x68cm；Package size: 46x45x72.5cm 6. N.W:21.00Kg; G.W: 23.5Kg 3 FUNCTIONS INTRODUCTION 1. International universal control signal: DMX512 2. - Page 4 4 DISPLAYCODE SETTING METHOS LED 200W Spot and Wash Mixing Moving head button MENU 【DMX】 System Mode DMX Mode Adder Setup Adder Setup [20CH] [001] [512] DMX Mode Adder Setup Adder Setup [32CH] [001] [512] DMX Mode Adder Setup Adder Setup [001] [512] [39CH] Enter...
-
Page 5: Dmx Channel Sheet
5 DMX CHANNEL SHEET Channel Mode 20CH 32CH 39CH Function Channel Function Value ° 0-255 0-540 ° 0-255 0-270 Tilt CH15 0-255 Pan Fine Pan Fine Tilt CH16 Tilt Fine 0-255 Tilt Fine X, Y speed 0-255 From fast to slow Adjustment 0-255 From dark to bright... - Page 6 72-79 Gobo 6 shake speed from slow to fast 80-87 Gobo 5 shake speed from slow to fast 88-95 Gobo 4 shake speed 7 Static Gobos + from slow to fast Open 96-103 Gobo 3 shake speed from slow to fast 104-111 Gobo 2 shake speed from slow to fast...
- Page 7 slow to fast CH10 CH10 CH12 0-255 Focus from near to far Focus 1 0-255 Focus from near to far CH11 CH11 CH13 Focus 2 0-255 Gobo from small to big CH12 CH12 CH14 Double Zoom 0-63(0-50) Open CH13 CH13 CH15 Prism 64-255(51-...
- Page 8 128-135 Color 16 136-195 Color gradually change from slow to fast 196-255 Color suddenly change from slow to fast 0-255 From dark to bright CH15 CH23 Red Zone 1 0-255 From dark to bright CH16 CH24 Green Zone 1 CH17 CH25 0-255 From dark to bright...
- Page 9 6 DIFFICULTY RESOLUTION The following is a list of problems and resolutions, should only be preformed by professionally qualified staff. 1. LED not working a) Check whether approaching the service life of LED, then change it b) Check whether LED circuitry is not loss or connect poorly 2.
-
Page 10: After Service
7 CLEANING To make sure the stable run of the moving head, you should keep it clean. All fans, lens and color filters, do not use any soluble detergent when cleaning the color filter avoiding the damage to LED.. 8 AFTER SERVICE 1. - Page 11 Warranty Card Name Model Production Purchase Sale Store End User Link man: Company Name: Tel: Stamp Add: Description: These must be truthfully fill, seal by the end-user and point-of-sale, or else the warranty will not work (warranty period and terms, see the following) warranty period：...
