Summary of Contents for INIM Electronics Air2-BS200

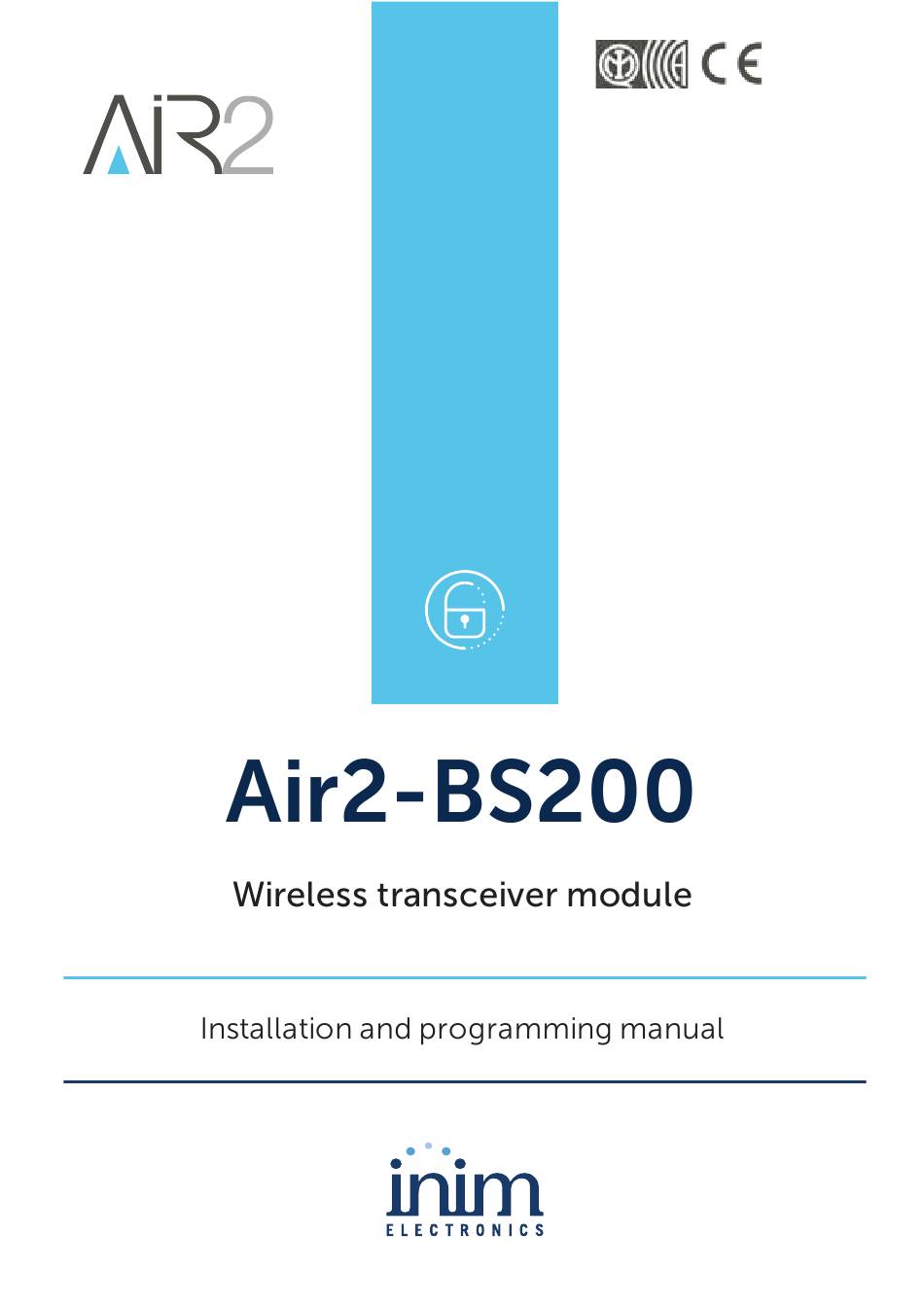

- Page 1 E E N 50131-1 EN 50131-3 EN 50131-5-3 EN 50130-4 EN 50130-5 INCERT CEB T031...
-
Page 2: Table Of Contents
Table of contents 1. Air2 system description 2. Description of Air2-BS200 2.1 Description of parts 2.2 Technical specifications Air2-BS200 2.3 Status LED 3. Operating principles 3.1 Wireless terminals 3.2 Wireless keypads and sounders 4. Installation of Air2-BS200 4.1 Addressing of Air2-BS200 4.2 Enrolling a wireless device... -
Page 3: Air2 System Description
RF output power Two-way Communication type GFSK Modulation from 12 to 250 minutes Device supervision In order to comply with the EN 50131-1 standards the alarm system supervision time must be below 120 minutes. Air2-BS200 | © 2020 Inim Electronics S.r.l. -
Page 4: Description Of Air2-Bs200
10 expansion boards, at addresses ADD, ADD+1, ... ADD+9, capable of managing the ter- minals Additionally, each Air2-BS200 allows the Inim control panel to manage up to 4 wireless keypads and 4 wire- less sounders. Installation and programming manual- 100-DRAFT... -
Page 5: Description Of Parts
LED DL4 - yellow Tamper microswitch: Open PRG LED - red cover Antenna connector Tamper microswitch: Dis- Backbox lodgement Mounting screw location Button P1 Tamper-screw location Button P2 Cable entry Enclosure screw hole Air2-BS200 | © 2020 Inim Electronics S.r.l. -
Page 6: Technical Specifications Air2-Bs200
2. Description of Air2-BS200 2.2 Technical specifications Air2-BS200 Model Air2-BS200/10 Air2-BS200/30 Air2-BS200/50 from 9 to 15V Power Supply Voltage 30 - 50 mA Current draw I-BUS / BUS RS485 Bus type Antenna SMA female connector 50 Ohm impedance ACE type... -
Page 7: Operating Principles
3.1 Wireless terminals 3. Operating principles In order to configure Air2-BS200 it is necessary to assign an address between 1 and 30 in the control panel (to set the address follow the instructions in paragraph 4.1 Addressing of Air2-BS200 The selected address will be assigned to the simulated reader (which processes and manages wireless transmissions in the same way as keys) and to the first 10 expansion boards, also simulated, with suc- cessive addresses “ADD”, “ADD”+1, ..., “ADD”+9. -
Page 8: Installation Of Air2-Bs200
It is possible to view on the keypads or via the programming and supervision software, the strength of the wireless signal on each wireless device Air2-BS200; this data can be used to optimize the installation pro- cess. A level 3 signal strength it is recommended for a good installation. -
Page 9: Addressing Of Air2-Bs200
Do not change the setting of the jumpers on the connectors. 4.1 Addressing of Air2-BS200 During the enrolling phase the wireless transceiver Air2-BS200 is integrated into the intrusion control panel INIM by simulating: a reader, with the address programmed via the module itself (ADD), by means of buttons P1 and P2 ... -
Page 10: Enrolling A Wireless Device
(but not change) the transceiver address indicated on its LEDs. 4.2 Enrolling a wireless device The enrolling procedure allows you to associate a wireless device INIM with the transceiver Air2-BS200 which acts in conjunction with the intrusion control panel. This procedure varies depending on the control panel in use and the programming software or application: 1. - Page 11 5. If you are enrolling an output device that is connected to an output terminal of Air2-MC300 it is neces- sary to enable the “Broadcast RF” zone option. The “Broadcast RF” option must be enabled for each terminal of the device Air2-MC300 concerned. Air2-BS200 | © 2020 Inim Electronics S.r.l.
-
Page 12: System Programming Air2
Minimum requirements: 18/5=4 expansion boards; if the 2 expansion boards are for the hardwired zones assign them to addresses 1 and 2; set the Air2-BS200 DIP-microswitches to address 3 (LED DL1 Off, DL2 Off, DL3 On, DL4 On). Enroll expansion boards 3, 4, 5 and 6 and reader 3 on the control panel. -
Page 13: Transceiver Parameters
Code 5.3 Programming from Air2-BS200 Programming from a module Air2-BS200 allows you to set only some of the system programming para- meters Air2 and only when used with a SmartLiving system. This programming also includes a specific section for the addressing of the Air2-BS200, available for both SmartLiving and Prime control panels. - Page 14 LED DL4 emits a number of blinks equal to the number of the current channel. 3 channels are available. Press button P2 to activate the successive channel to the one currently operating on the Air2-BS200 mod- ule. At this point, press the “ENROLL” button on all the detectors and sounders, access the “ENROLL”...
-
Page 15: General Information
6.4 Simplified EU Declaration of Conformity Hereby, Inim Electronics S.r.l. declares that the radio equipment type Air2-BS200 is in compliance with Direc- tive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.inim.biz. -
Page 16: Documents For The Users
6. General information 6.5 Documents for the users Declarations of Performance, Declarations of Conformity and Certificates concerning to Inim Electronics S.r.l. products may be downloaded free of charge from the web address www.inim.biz, getting access to Extended Access and then selecting "Certifications" or requested to the e-mail address info@inim.biz or requested by ordinary mail to the address shown in this document. - Page 17 6.6 WEEE Air2-BS200 | © 2020 Inim Electronics S.r.l.
- Page 18 6. General information Installation and programming manual- 100-DRAFT...
- Page 19 6.6 WEEE Air2-BS200 | © 2020 Inim Electronics S.r.l.
- Page 20 Via dei Lavoratori 10, Loc. Centobuchi 63076 Monteprandone (AP) ITALY Tel. +39 0735 705007 _ Fax +39 0735 704912 info@inim.biz _ www.inim.biz DCMIINE0A2BS2008E-100-20200604-DRAFT...
