Summary of Contents for TS-market ETA

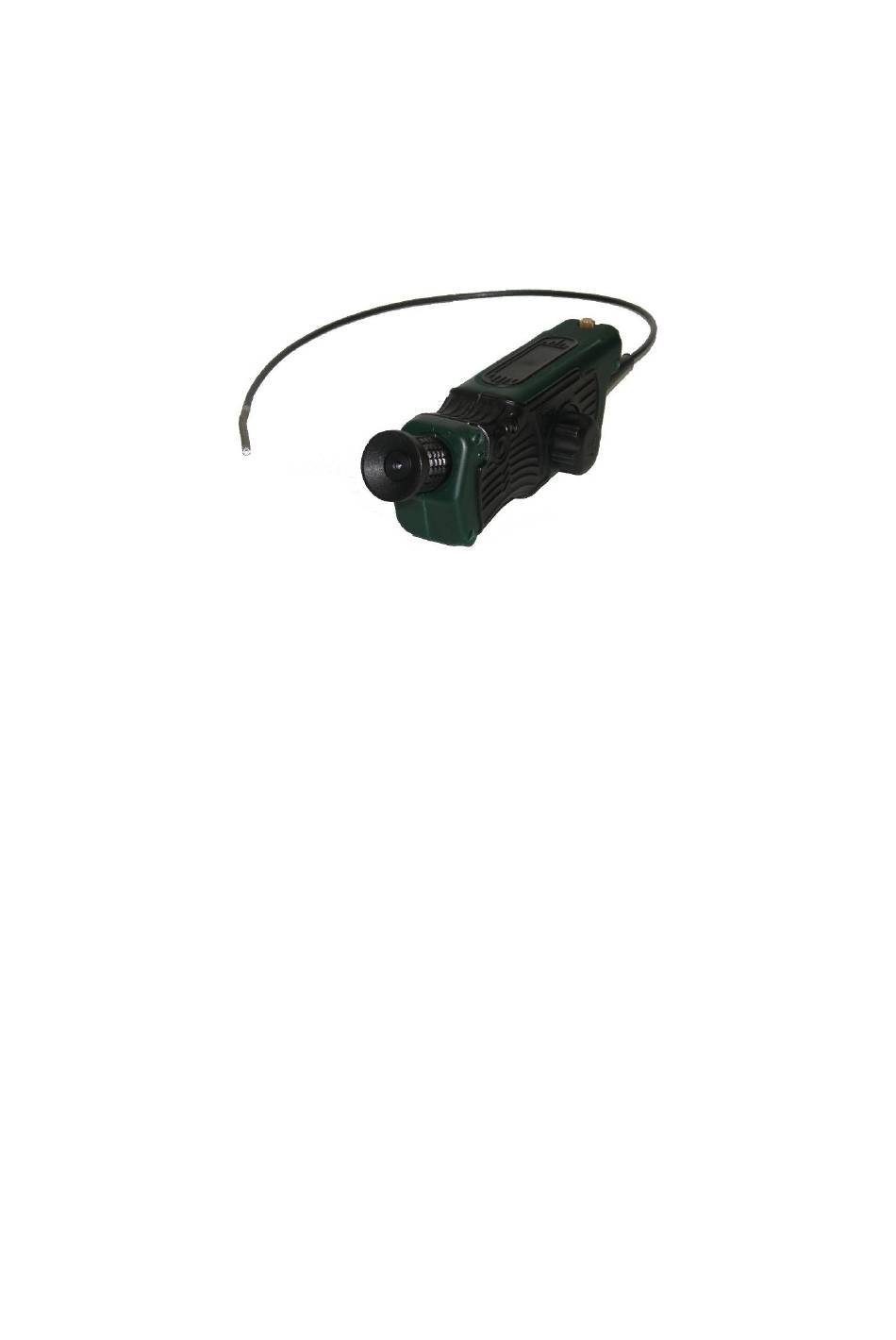

- Page 1 'ETA' AUTONOMOUS TECHNICAL FIBER AND OPTICAL ENDOSCOPE OPERATION MANUAL...
-
Page 2: Table Of Contents
Contents 1. Product Operation..............................3 1.1 Purpose .................................3 1.2 Technical Characteristics (features) ........................3 1.3 In Box ................................. 4 1.4 Design and Operation ............................5 1.5 Marking................................5 1.6 Package................................5 2. Using the Product..............................5 2.1 Operational Restrictions........................... -
Page 3: Product Operation
This Operation Manual (OM) is intended for proper and safe operation of ETA autonomous technical fiber and optical endoscope (hereinafter referred to as 'product' or 'device') and the assessment of its technical condition when considering the necessity to send it for repair. Product maintenance does not require any special training of staff. -
Page 4: In Box
1.2.17. The permissible number of drafts or gray fibers of a fiber optic bundle in the field of view of the endoscope is not more than 10 pcs. 1.3 In Box 1.3.1 Product Delivery Set is specified in Table 1. Table 1 Name ETA endoscope Charger AA rechargeable batteries Car charger adapter* Optical adapter for camera* Camera*... -
Page 5: Design And Operation
Attention! The appearance may vary depending on the design. 1.4 Design and Operation 1.4.1 The main components of the device and the location of the controls are shown in Figure 2 Endoscope's Distal end operating control knob side Backlight brightness button Battery compartmen Battery charge... -
Page 6: Getting Started
2.1.2 When finished, power off backlight to prevent battery discharge during transportation and storage. 2.1.3. Do not open battery compartment of the product, replace batteries, remove protective lid of the battery compartment and lens in the conditions of high humidity (over 90%), condensate, or the possibility of water penetration into the interior content of the product and its parts. -
Page 7: Using The Product
Battery Compartment with batteries installed Remove Batteries Button Power Indicator Charging Process Indicator Battery Charge Channels Indicator Power and Charge Malfunction Indicator Complete Indicator Figure 3 2.2.8 To charge the batteries, follow these steps: connect power cord to the charger and AC 220V / 50Hz. When properly connected, the green LED will be on the charger's body;... - Page 8 2.3.3 Open battery compartment cover by unscrewing the fixing screw and sliding the cover. 2.3.4 Install the batteries into battery compartment strictly observing polarity indicated on the case. 2.3.5 Place battery cover and tighten the fixing screw. 2.3.6 Place the distal end of the viewing bundle in front of any typewritten text at a distance of 50-60 mm.
-
Page 9: Operation In Extreme Conditions
2.3.10 If it is necessary to illuminate the object under control, enable backlight. The endoscope has 4 brightness modes: 25%, 50%, 75%, 100%. Switch between them using short press of the power button. Double pressing the button activates high brightness mode for 10 seconds. -
Page 10: Product Minor Repair
dust. To remove heavy grease, use a cotton swab moistened in ethanol, having preliminary removed solids from the optics with a soft brush. 3.4. Product functional testing and its technical inspection is controlled by checking paragraphs 1.2.2.,1.2.3., 1.2.10. 3.5. Preservation (degreasing, reconservation) of the product is carried out by packing it in its standard package (plastic case). -
Page 11: Transportation
6 TRANSPORTATION 6.1. Requirements for transportation and transportation conditions. 6.1.1. Transportation of the device is carried out in a transport container by all kinds of goods and passenger transport at a height of up to 12,000 meters and distance up to 12000 m at ambient temperatures from -40 ° C to + 60 °...
