Summary of Contents for Tracmaster Camon SG30

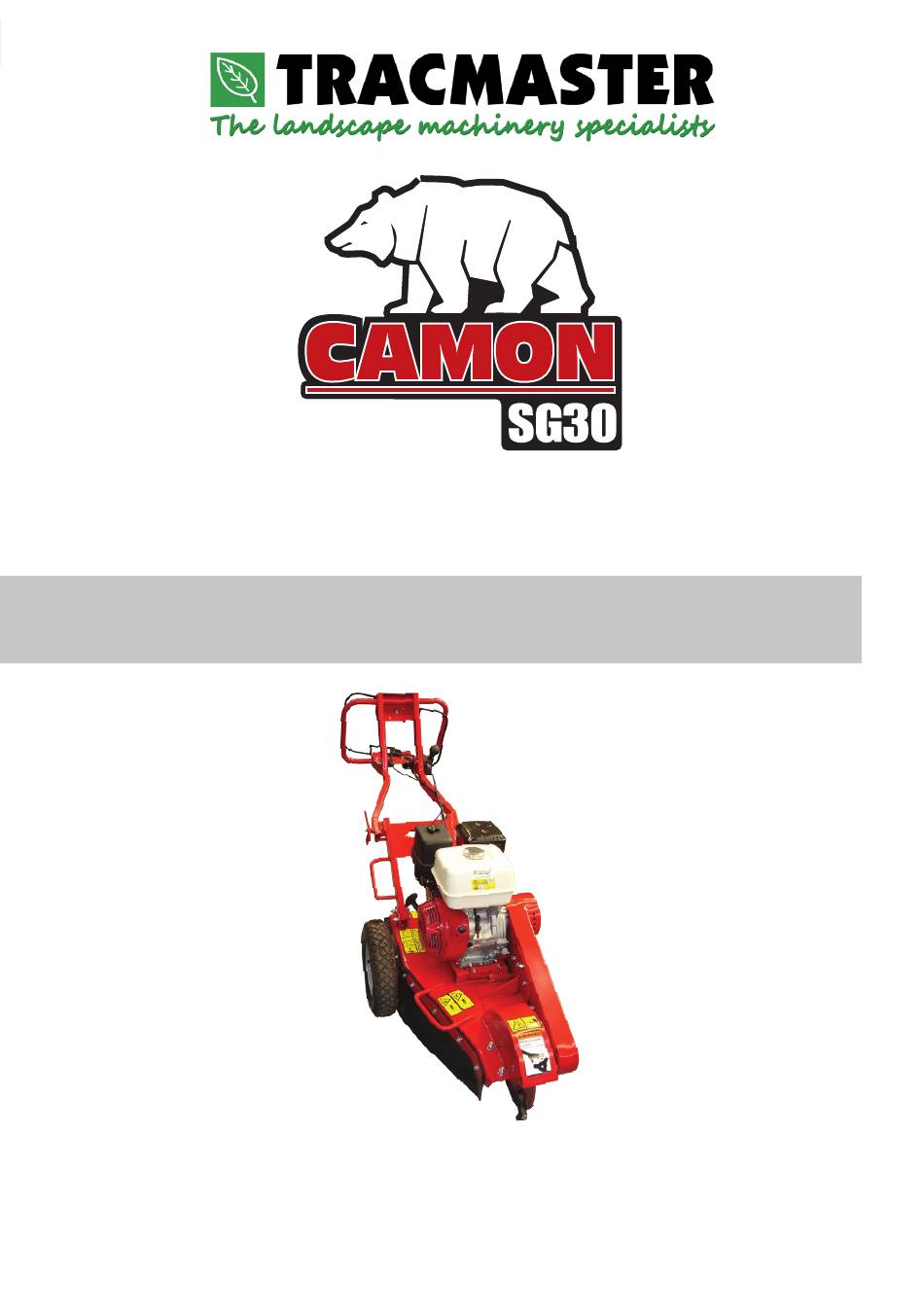

- Page 1 CAMON STUMP GRINDER ORIGINAL INSTRUCTION MANUAL Manufactured by Tracmaster Ltd Before commissioning the machine, read operating instructions and observe warning and safety instructions.

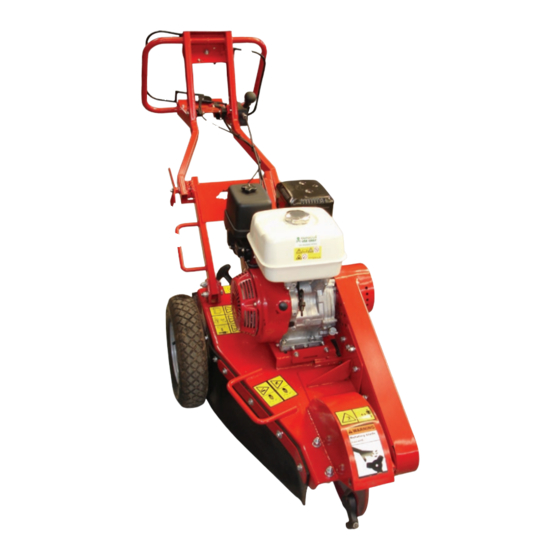

- Page 2 CAMON SG30 Stump Grinder Manufacturer Details Tracmaster Ltd Units 6-7 Winterpick Business Park Hurstpierpoint Road Wineham Henfield BN5 9BJ UNITED KINGDOM Tel: +44 (0)1444 247689 www.tracmaster.co.uk info@tracmaster.co.uk Machine Details CAMON SG30 Stump Grinder Model: Serial No: A 0 8 -...
-
Page 3: Table Of Contents
CAMON SG30 Stump Grinder Table of Contents 1.0 Introduction ..........................2 Welcome ..........................2 About This Manual ........................2 What the Machine is Designed For ....................3 Applications ...........................3 3.0 Specifications..........................4 Unpacking and Assembly ......................5 Major Components Diagram ....................5 Unpacking Instructions ......................5 5.0 Safety Instructions – Pre-Operation ..................7 Basic Safety Instructions ......................7... -
Page 4: Introduction
CAMON LA25 Lawn Aerator 1.0 Introduction Welcome Welcome to Tracmaster and thank you for choosing CAMON. We are confident that you will be more than happy with your machine. Your machine is covered by a comprehensive warranty. However, the lifespan of your CAMON machine depends on a number of factors. -
Page 5: What The Machine Is Designed For
The benefit of removing a tree stump is that it allows the landscape to be redesigned without the stump. The teeth of the CAMON SG30 Grinder are designed to grind TREE STUMPS ONLY - they are NOT designed to make contact with solid ground at any point during operation. -
Page 6: Specifications
CAMON SG30 Stump Grinder 3.0 Specifications ENGINE Engine Manufacturer Honda Engine Model GX360 Engine Type 4-stroke OHV, single cylinder Net Engine Power 8.7kW (11.7hp) @ 3600rpm Engine Shaft Size 1” straight Spark Plug BPR6ES (NGK) / W20EPR-U (DENSO) Spark Plug Gap 0.70 - 0.80mm... -
Page 7: Unpacking And Assembly
CAMON SG30 Stump Grinder 4.0 Unpacking and Assembly Major Components Diagram ① Top Handlebar ② Lower Handlebar ③ Operator Presence (OPC) Lever ④ Throttle Lever ⑤ Choke Lever ⑥ Brake Lever ⑦ Engine ⑧ Cutting Disc ⑨ Discharge Area ⑩ Belt Guard ⑪ Wheels... - Page 8 CAMON SG30 Stump Grinder Loosen the large butterfly knob on Fig. 2 the right hand side of the machine (fig. 2) to allow the top handlebars to be rotated into the upright working position. Re-tighten the butterfly knob to fix...
-
Page 9: Safety Instructions - Pre-Operation
CAMON SG30 Stump Grinder 5.0 Safety Instructions – Pre-Operation Basic Safety Instructions Before starting the machine, read and understand these operating instructions. Main Components and Operating Elements Below is a description of the main components of the SG30 Stump Grinder and how they operate. Engine and Drive The Honda GX390 is a four stroke engine that runs on standard unleaded fuel. -
Page 10: Choke Lever
CAMON SG30 Stump Grinder Choke Lever The choke lever is used to help start the engine when it is cold or being started for the first time. Refer to the engine instructions for detailed instructions on the operation of the choke lever. -
Page 11: Engine Specific Safety Instructions
CAMON SG30 Stump Grinder 5.10 Engine Specific Safety Instructions PETROL IS HIGHLY FLAMMABLE. ALWAYS STOP THE ENGINE AND ENSURE THE FUEL TAP IS TURNED OFF BEFORE REFUELING, OR WHEN TRANSPORTING, CLEANING, OR MAKING ADJUSTMENTS TO THE MACHINERY. Do not smoke or use a naked flame when refueling. Use only unleaded petrol from fuel containers designed for this purpose. Refuel outdoors only and replace the fuel tank cap securely. - Page 12 CAMON SG30 Stump Grinder WARNING WARNING Rotating blade DO NOT hazard. OPERATE WITH GUARD 120DB Maximum sound REMOVED. power level (LWA). 90998 Ensure safety guards are in Ear protection must place. Machine MUST NOT be worn when the be operated without guards. machine is in use. 80044 Warning! Rotating blade.
-
Page 13: Safety Instructions Starting And Operating
4. Make no alterations or modifications to your CAMON Stump Grinder unless requested or recommended by Tracmaster Ltd. Check with the local utilities for the locations of buried pipes and cables where applicable, before operating the machine. -
Page 14: To Start The Engine
CAMON SG30 Stump Grinder To Start the Engine Using the dipstick provided, check the engine oil level. Top up with SAE 10W/30 oil, API SJ or later, if the dipstick is clear of oil. Check the fuel level. Refill as necessary and as determined by the fuel tank type –... -
Page 15: To Stop The Engine
CAMON SG30 Stump Grinder To Stop the Engine Fig. 8 Tilt the stump grinder to raise the teeth into the air. Move the throttle lever to the “MIN” position (fig. 9). Release the operator presence lever (fig. 10). Ensure the blades have stopped rotating prior to moving the machine. -
Page 16: Procedure For Cutting The Stump
CAMON SG30 Stump Grinder Procedure for Cutting the Stump Fig. 12 Position the Stump Grinder (fig. 12). Place the machine into position with the cutting wheel near the top edge of the stump. Remove nearby roots first (fig. 13). Conduct the pre-starting inspection if not already done and start the engine as per the operating instructions above. -
Page 17: Procedure For Unexpected Shut Down
CAMON SG30 Stump Grinder Helpful tips for operating the Stump Grinder Use smooth, comfortable movements while operating. When it is desired to cut smaller roots, it may be more effective to do so before, rather than after, cutting the stump. Should the chip build-up become excessive when cutting, shut off the machine, wait for the cutting wheel to stop rotating, retract the machine from the stump, and rake away chips. -
Page 18: Maintenance
CAMON SG30 Stump Grinder 7.0 Maintenance IMPORTANT! BEFORE UNDERTAKING ANY MAINTENANCE ENSURE THAT THE ENGINE IS OFF AND THE FUEL TAP IS OFF. Schedule Every Every Operation Daily Week Month Check engine oil level SAE 10W/30 API SJ or later... -
Page 19: Replacing Teeth
CAMON SG30 Stump Grinder To Rotate Teeth: Fig. 16 To rotate a tooth, first loosen the locknut Locknut that holds the tooth in its holder on the Spacer tooth pocket. Tooth Lift and rotate the tooth to the next indexed position so a sharp edge is facing Holder forwards on the machine. -
Page 20: Engine
CAMON SG30 Stump Grinder The holders must be fitted alternately, eg, the first pair would be a straight holder and an angled holder, then the second pair would be an angled holder and a straight holder, and so on. When changing the teeth holders it is essential that a similar type of holder is positioned in the same position as the holder that was removed. -
Page 21: Air Filter
CAMON SG30 Stump Grinder Open the drain plug on the engine Fig. 18 and the filling plug and drain the oil into a suitable container or use a suction pump to remove oil through filler neck. Ensure the waste oil is disposed of properly. -
Page 22: Troubleshooting
CAMON SG30 Stump Grinder Troubleshooting 7.6.1 Machine Have all serious malfunctions on the machine and engine repaired by an authorised Tracmaster or Honda agent. Problem Possible Cause Remedy Broken belt Replace belt No drive to rotor disc Damaged centrifugal clutch... -
Page 23: Transportation, Storage And Handling
CAMON SG30 Stump Grinder 8.0 Transportation, Storage and Handling Transportation Use ramps where possible to manoeuvre the Aerator into a transportation vehicle. The SG30 Stump Grinder must be fixed securely using straps and by placing chocks behind the wheels. Always transport the SG30 Stump Grinder horizontally and not tilted at an angle. -
Page 24: Spare Parts
CAMON SG30 Stump Grinder 9.0 Spare Parts The spare parts diagrams and part numbers for the CAMON SG30 Stump Grinder can be found on our website or by contacting our spare parts department. Spare parts can be ordered via the following methods:... -
Page 25: Service Record
CAMON SG30 Stump Grinder 10.0 Service Record To ensure your machine is kept in peak condition we recommend that your CAMON SG30 Stump Grinder is serviced at regular intervals. Contact Tracmaster on 01444 247689 to find out who your local Authorised Tracmaster Dealer. -
Page 26: Ec Declaration Of Conformity
CAMON SG30 Stump Grinder 11.0 EC Declaration of Conformity Tracmaster Ltd declares that the machinery stipulated below complies with all the relevant provisions of: Machinery Directive 2006/42/EC EMC Directive 2004/108/EC and the National Laws and Regulations adopting these directives and other relevant directive. Manufacturer: Tracmaster Ltd Units 6-7 Winterpick Business Park... -
Page 27: Warranty Information
• For commercial and hire use: 2 years Tracmaster Ltd will replace or repair, at their discretion, free of charge, any such defective material providing the machine is returned to their workshops or an Authorised Tracmaster Dealer (contact us or see www.tracmaster.co.uk/apps/store-locator). - Page 28 CAMON SG30 Stump Grinder Original Instruction Manual © 2020 Tracmaster Ltd Tracmaster Ltd Units 6-7 Winterpick Business Park | Hurstpierpoint Road | Wineham | Henfield | BN5 9BJ Tel: +44 (0)1444 247689 | www.tracmaster.co.uk | info@tracmaster.co.uk...
