Summary of Contents for RightAngle XLH10518

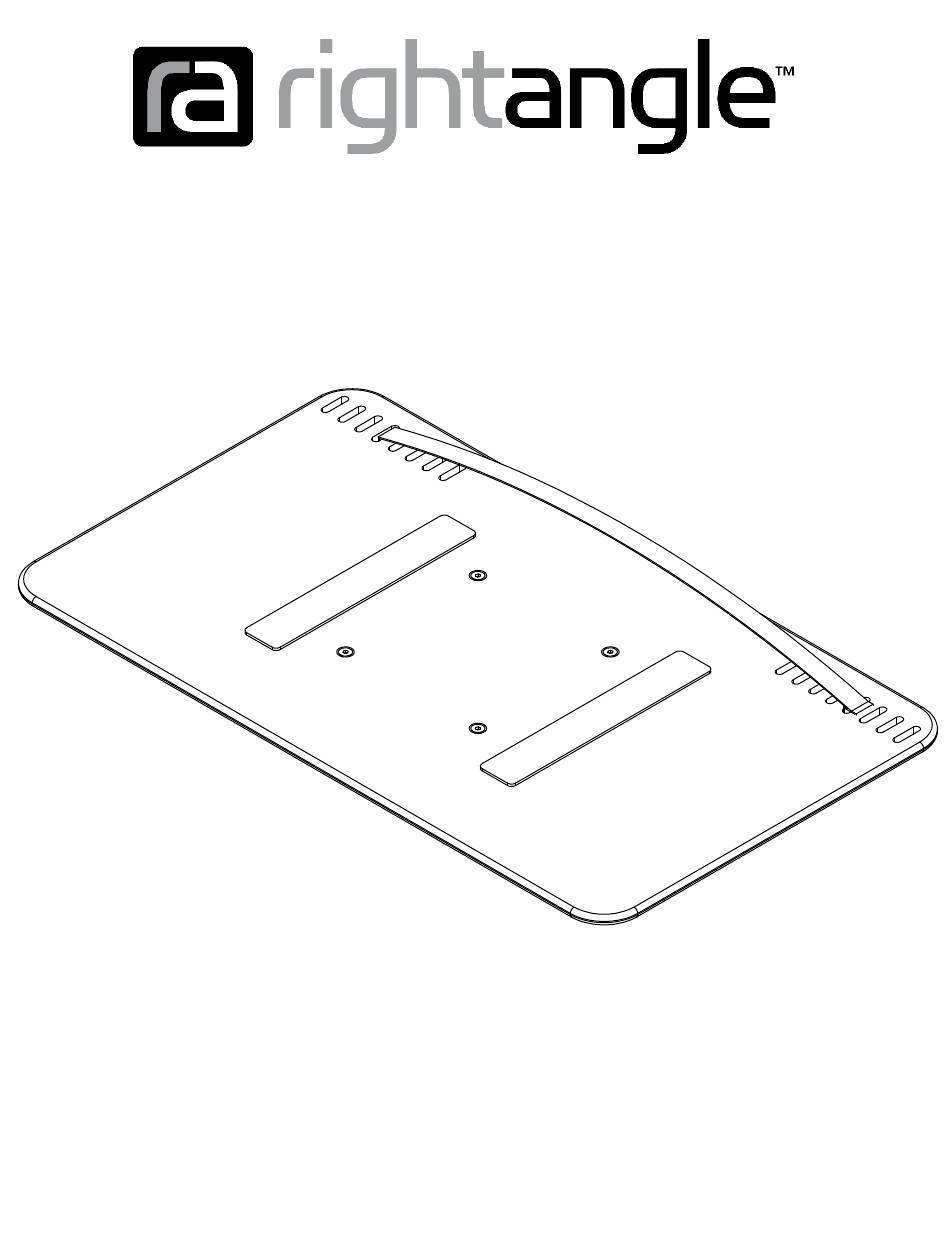

- Page 1 Laptop Holder Assembly Instructions Warranty: raproducts.com/warranty Instruction # 53976 / Dated 05/23/17...
- Page 2 Laptop Holder Assembly Inst. # 53976 2.5mm Tape Measure ALLEN WRENCH M4-0.70 x4 M4-0.70 x 16 x4 INSTALL HOVER ARM ON WORKSURFACE. NON-SKID PAD x2 ATTACH TRAY TO BRACKET USING SCREWS AND NUTS. K&A Manufacturing - 800.298.4351 - www.raproducts.com/install 2 OF 4...
- Page 3 Laptop Holder Assembly Inst. # 53976 INSTALL NON-SKID PADS (OPTIONAL) PLACEMENT OF NON-SKID PADS MAY DIFFER, DEPENDING ON MODEL AND SIZE OF LAPTOP. 6.000 CENTERED K&A Manufacturing - 800.298.4351 - www.raproducts.com/install 3 OF 4...
- Page 4 Laptop Holder Assembly Inst. # 53976 STRAP ROUTING DIAGRAM FRONT VIEW LAPTOP #3 - ACROSS TOP OF LAPTOP #4 - DOWN THROUGH SLOT OF DESIRED WIDTH TRAY #1 - VELCRO STRAP ANCHORED TO TRAY. #2 - UP THROUGH SLOT LOOPED AND ATTACHED TO ITSELF OF DESIRED WIDTH #5 - PULL TIGHT AND ATTACH TO VELCRO UNDERNEATH...
