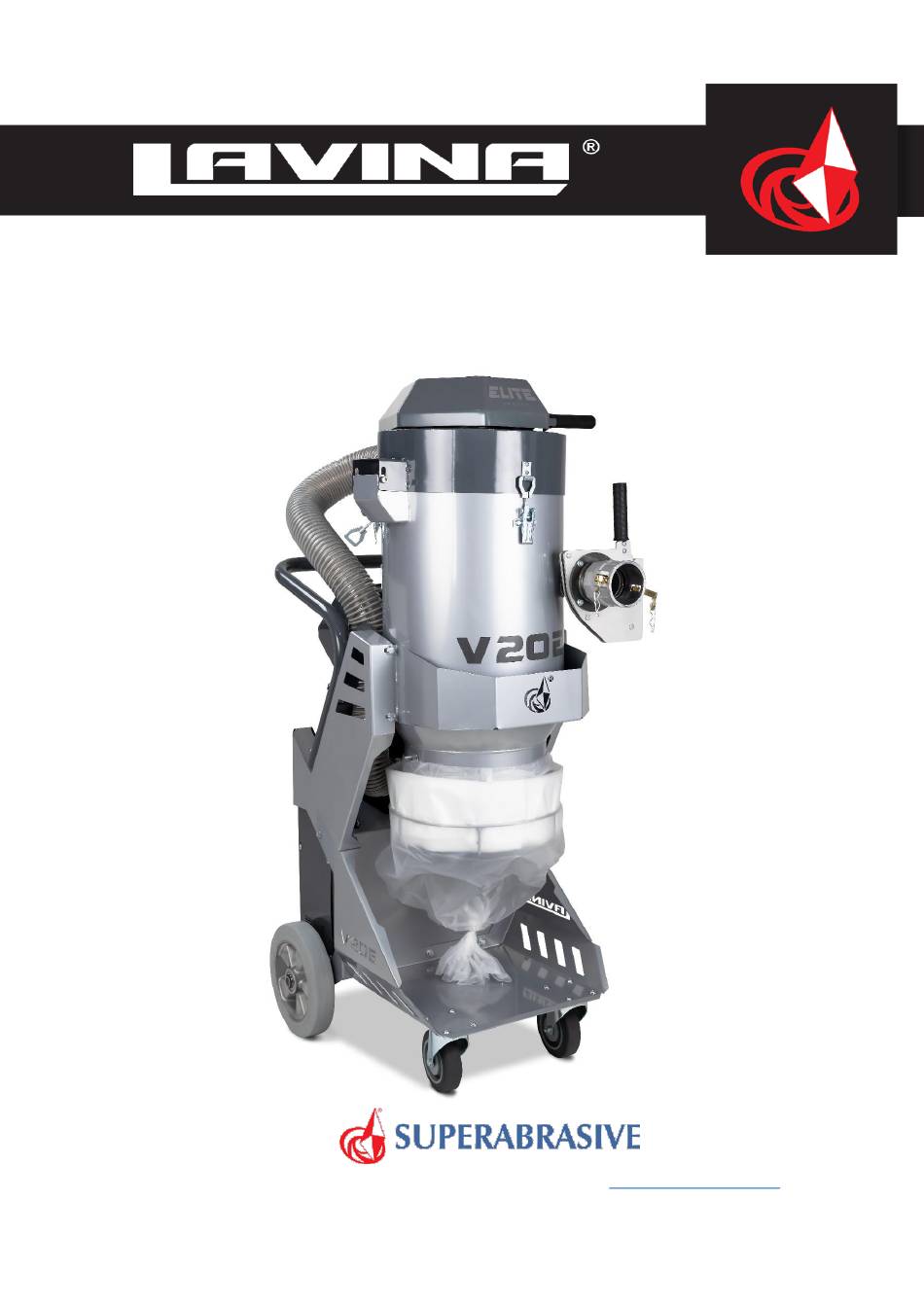

- Page 1 ® Superabrasive Owner’s manual original language – Lavina V20E 01/2020 LAVINA V20E USER MANUAL ® Tech Support Line: 800-987-8403 | www.superabrasive.com | info@superabrasive.us...
- Page 2 ® Superabrasive Owner’s manual original language – Lavina V20E 01/2020...
-
Page 3: Table Of Contents
® Superabrasive Owner’s manual original language – Lavina V20E 01/2020 Contents 1. WARRANTY AND RETURNS ........................5 1.1 WARRANTY POLICY FOR LAVINA® V20E ..................5 1.2 RETURN POLICY FOR LAVINA® VACUUMS ..................6 2. GENERAL INFORMATION ........................7 2.1 MANUFACTURER ........................... 7 2.2 GENERAL DESCRIPTION ......................... - Page 4 ® Superabrasive Owner’s manual original language – Lavina V20E 01/2020 11.1 GENERAL PARTS......................... 27 11.2 VACUUM HEAD COVER......................29 11.3 MAIN FILTER CHAMBER ......................31 11.4 INLET VALVE ..........................32 11.5 CARRIAGE ..........................33 11.6 POWER UNIT..........................35 11.7 CONTROL BOARD ........................37 11.8 VACUUM GAUGE ASSEMBLY .....................
-
Page 5: Warranty And Returns
Superabrasive offers a guarantee on LAVINA® vacuums, covering manufacturing and material defects, for a period of 24 months from the date of purchase, as invoiced by Superabrasive. The following conditions pertain to this warranty: •... -
Page 6: Return Policy For Lavina® Vacuums
Vacuums returned without prior authorization will remain property of the sender and Superabrasive Inc. will not be responsible for these. • No vacuums will be credited after 90 days from the date of Superabrasive’s invoice. • All returns must be shipped freight prepaid. -
Page 7: General Information
2.1 MANUFACTURER Superabrasive was founded in 1987, as a manufacturer of high quality diamond tools for the stone and concrete industry. Today, Superabrasive is one of the world’s leading companies in the production of diamond tools and floor grinding machinery. At Superabrasive, we strive to deliver the very best solutions to our customers, and enable them to work more efficiently. -
Page 8: Main Components And Controls
(needed for maintenance purposes). Customer Service - For customer assistance and technical support call your local distributor or call Superabrasive Inc. at 1-800-987-8403 or visit us at www.superabrasive.com , where you can... -
Page 9: Technical Data
® Superabrasive Owner’s manual original language – Lavina V20E 01/2020 4. TECHNICAL DATA Table 4.1 Model version V20E115 V20E230 V20EU Voltage/Hz 1phx115V50/60Hz 1phx230V50/60Hz 1phx230V50/60Hz 1.93kW 2.4kW 2.4kW Power 2.6HP 3.3HP 3.3HP Amperage Amps 15.4 Amps 13 Amps 13 Amps Filter... -
Page 10: Safety Precautions
® Superabrasive Owner’s manual original language – Lavina V20E 01/2020 5.SAFETY PRECAUTIONS 5.1 RECOMMENDED USE The LAVINA® V20E vacuum is designed and manufactured for use with concrete, terrazzo and natural stone floors. It is recommended for use with LAVINA® machines. This vacuum is rated for dry use only, and with a machine of appropriate size. -
Page 11: Operating The Vacuum
® Superabrasive Owner’s manual original language – Lavina V20E 01/2020 • Perform general daily inspections of the vacuum and inspect the vacuum before each use for any sign of damage. • Inspect all safety devices. • The vacuum/filters must be clean and the hose should be connected. - Page 12 ® Superabrasive Owner’s manual original language – Lavina V20E 01/2020 • If toxic or harmful substances accidentally enter the vacuum cleaner, the container and filters must be removed and cleaned immediately using the proper protective equipment and safety procedures. • Utilize the locking caster wheel to prevent movement while work is being performed.
-
Page 13: Unpacking, Handling, Transportation And Storage
® Superabrasive Owner’s manual original language – Lavina V20E 01/2020 6. UNPACKING, HANDLING, TRANSPORTATION AND STORAGE When unpacking the machine, please check that the following accessories are included: -The hose end fitting; -Steel wand; -Floor brush; -Main vacuum hose with cuff to connect to the machine;... -
Page 14: Operating With The Vacuum
® Superabrasive Owner’s manual original language – Lavina V20E 01/2020 7. OPERATING WITH THE VACUUM IMPORTANT: Before connecting the power cord to the power source, ensure that the electrical voltage corresponds with the requirements identified on the information plate on the vacuum cleaner. -
Page 15: Main Filter Cleaning
7.2 MAIN FILTER CLEANING Figure 7.2 The Lavina V20E uses jet pulse manual filter cleaning. One cycle of filter cleaning takes 10 to 20 seconds, depending on the vacuum’s operator. The filter must be cleaned as the vacuum gauge goes to red or if there’s low suction. If the suction performance is still not improved after a cleaning cycle is applied, the filter must be replaced with new one. -
Page 16: Main Filter Change
® Superabrasive Owner’s manual original language – Lavina V20E 01/2020 7.3 MAIN FILTER CHANGE Figure 7.3 WARNING: 1. Turn off the engine and wait for the fan impeller to completely stop before opening the machine to change filters. Do not touch the exhaust! It will get very hot even when running the engine for a short time. -
Page 17: Hepa Filter Change
® Superabrasive Owner’s manual original language – Lavina V20E 01/2020 7.4 HEPA FILTER CHANGE Figure 7.4.1 Figure 7.4.2 Figure 7.4.3 Figure 7.4.4 Figure 7.4... - Page 18 ® Superabrasive Owner’s manual original language – Lavina V20E 01/2020 IMPORTANT: All of the following procedures must be performed with the dust collector turned off (look at the beginning of chapter 7). Before performing any work or maintenance on the vacuum, be sure to wear the proper protective equipment.
-
Page 19: Longopack ® Bag Replacement (Changing Bags)
® Superabrasive Owner’s manual original language – Lavina V20E 01/2020 7.5 LONGOPACK ® BAG REPLACEMENT (CHANGING BAGS) Figure 7.5.1 Figure 7.5.2 Figure 7.5 The Lavina® V20E has a LONGOPAC waste system for effective dust storage. This is a 20 m long plastic tube that will be divided into plastic bags using the zip ties attached to the machine. -
Page 20: Installing Longopac® Refill Packs
® Superabrasive Owner’s manual original language – Lavina V20E 01/2020 7.6 INSTALLING LONGOPAC® REFILL PACKS Figure 7.6 When the plastic bag cartridge has reached the end, the plastic bag refill may be installed using the following procedures: 1. At fig. 7.6 pos. 1, you can see the locked position of the LONGOPACK® plastic bag holder and to take it off you should: Lift the holder upwards about 10-15mm to unlock it fig. -
Page 21: Maintenance And Inspection
® Superabrasive Owner’s manual original language – Lavina V20E 01/2020 1. Place the LONGOPAC® bag refill into the support ring. Ensure that the 2 ends of the refill are directed in an upwards position. Pull the inner end of bag refill down over the inside surface of the bag support ring by making sure that the hook of the holder sticks out from the bag (Fig 7.6.1 and 7.6.2). -
Page 22: Lavina® V20E Electric Circuit Diagram
® Superabrasive Owner’s manual original language – Lavina V20E 01/2020 8.1 LAVINA® V20E ELECTRIC CIRCUIT DIAGRAM Figure 8.1... -
Page 23: Vacuum Motors Servising
® Superabrasive Owner’s manual original language – Lavina V20E 01/2020 8.2 VACUUM MOTORS SERVISING Figure 8.2... -
Page 24: Filter Chamber Flap Replacement
During the life of the vacuum motor, the carbon brushes inside the motor may be replaced once. These brushes are considered to be a ‘wear part’ and their replacement is not covered under the vacuum warranty. For additional information, please contact Superabrasive, or an authorized service facility. -
Page 25: Troubleshooting
LONGOPAC® SECTION OF BAG FILLED WITH DUST AND DEBRIS. THE VACUUM FILTER(S) HAS CLEAN THE FILTER. REPLACE IF NECESSARY EXCESSIVE BLOCKAGE REPLACE THE DAMAGED MOTOR. THE MOTOR(S) IS/ARE MAKING THE MOTOR(S) IS DAMAGED CONTACT SUPERABRASIVE OR AN EXCESSIVE NOISE. AUTHORIZED SERVICE FACILITY... -
Page 26: Lavina® Vacuum Adapters And Connections
® Superabrasive Owner’s manual original language – Lavina V20E 01/2020 10. LAVINA® VACUUM ADAPTERS AND CONNECTIONS... -
Page 27: Spare Parts
® Superabrasive Owner’s manual original language – Lavina V20E 01/2020 11. SPARE PARTS Note: There are three variations of V20E – V20E115V, V20E230V and V25EU. 11.1 GENERAL PARTS Figure 11.1... - Page 28 ® Superabrasive Owner’s manual original language – Lavina V20E 01/2020 LAVINA® V20E GENERAL PARTS Model Item No. Description Pcs. Model Item No. Description Pcs. HEPA filter chamber + V25GE30.00.00 Head cover assembly 30323000006 filter V20E10.00.00 Filter chamber V25GE40.00.04 HEPA inlet elbow...
-
Page 29: Vacuum Head Cover
® Superabrasive Owner’s manual original language – Lavina V20E 01/2020 11.2 VACUUM HEAD COVER Figure 11.2... - Page 30 ® Superabrasive Owner’s manual original language – Lavina V20E 01/2020 LAVINA® V20E VACUUM HEAD COVER - V25GE30.00.00 Item No. Description Pcs. Item No. Description Pcs. V25GE33.00.00 Vacuum head body V25GE30.00.02 Top cover 30301240114 Nut M4 DIN 985 30301240095 Nut M8 DIN 6923...
-
Page 31: Main Filter Chamber
® Superabrasive Owner’s manual original language – Lavina V20E 01/2020 11.3 MAIN FILTER CHAMBER Figure 11.3... -
Page 32: Inlet Valve
® Superabrasive Owner’s manual original language – Lavina V20E 01/2020 LAVINA® V20E FILTER CHAMBER - V20E10.00.00 Item No. Description Pcs. Item No. Description Pcs. 30301240103 Nut M6 DIN 985 V25GE11.00.00 Inlet valve assembly V25GE10.00.02 Flap restrictive plate 30301240110 Nut M5 DIN 982 V25GE14.00.00... -
Page 33: Carriage
® Superabrasive Owner’s manual original language – Lavina V20E 01/2020 11.5 CARRIAGE Figure 11.5... - Page 34 ® Superabrasive Owner’s manual original language – Lavina V20E 01/2020 LAVINA® V20E CARRIAGE V20E20.00.00 Item No. Description Pcs. Item No. Description Pcs. 30301210058 Bolt M8x12 DIN 6921 V20E20.00.02 Right filter chamber holder 30301230209 Screw M8x16 ISO 7380F V20E00.00.04 Control board base plate...
-
Page 35: Power Unit
® Superabrasive Owner’s manual original language – Lavina V20E 01/2020 11.6 POWER UNIT Figure 11.6... - Page 36 ® Superabrasive Owner’s manual original language – Lavina V20E 01/2020 LAVINA® V20E POWER UNIT: 1. V20E115V - V25E11540.00.00; 2. V20E 230V – Using V20EU40.00.00; 3. V20EU - V20EU40.00.00; Model Item No. Description Pcs. 30301240106 Nut M8 DIN 985 Motor uniting V20E42.00.00...
-
Page 37: Control Board
® Superabrasive Owner’s manual original language – Lavina V20E 01/2020 11.7 CONTROL BOARD... -
Page 38: Vacuum Gauge Assembly
® Superabrasive Owner’s manual original language – Lavina V20E 01/2020 11.8 VACUUM GAUGE ASSEMBLY Figure 11.8 LAVINA® V25GE VACUUM GAUGE ASSEMBLY Item No. Description Pcs. 30313000187 Vacuum gauge 30302000131 Sealing Vacuum gauge base V25GE50.10.00 plate... -
Page 39: Accessories
® Superabrasive Owner’s manual original language – Lavina V20E 01/2020 12. ACCESSORIES Figure 12.1 Figure 12.2 Figure 12.3 Figure 12.6 Figure 12.4 Figure 12.5 ACCESSORIES Item No. Description Pcs. Fig. 30310000104 Floor Brush combo 18 in L-FB-50 12.1 30316000062 Steel wand L-A-50 12.2... -
Page 40: Disposal
Superabrasive or a local distributor, where a professional disposal complying with the environment laws and directives is guaranteed. 14. MANUFACTURER’S CONTACTRS If you need to contact Superabrasive Inc. with technical support questions, below is the contact information. Address: 9411 Jackson Trail Road, Hoshton GA 30548, USA Email: info@superabrasive.us... -
Page 41: Emmision Control Warranty Statement
As the SORE owner you should however be aware that Superabrasive Inc. may deny your warranty if your SORE or its part has failed due to abuse, neglect, improper maintenance or unapproved modification. - Page 42 If the part fails during the period of warranty coverage, the part will be repaired or replaced by Superabrasive Inc. according to subsection (4) below. Any such part repaired or replaced under warranty will be warranted for the remainder of the period.
- Page 43 The repair or replacement of any warranted part otherwise eligible for warranty coverage may be excluded from such warranty coverage if Superabrasive Inc. demonstrates that the SORE has been abused, neglected, or improperly maintained, and that such abuse, neglect, or improper maintenance was the direct cause of the need for repair or replacement of the part.
