CS5EP
LEXUS
Thank you for purchasing the Beat-Sonic CS5EP Front Camera Selector. You have purchased
from Japan`s leading supplier of car audio interface adapters and accessories. Designed and
made in Japan, this product represents our commitment to quality and excellence. Please read
this manual carefully prior to installing this product to ensure correct operation.
■ Features
- Provides input connection for aftermarket front camera to factory display screen.
- Selector button to activate front camera with programmable timer duration.
- Factory backup camera can be activated at any time without engaging reverse gear.
- Optional speed sensor connection to automatically display front camera at parking speed.
- In-built image stabilization and noise filter for excellent image quality.
- Made in Japan.
■ Important
- Vehicle compatibility has not been confirmed for all Lexus models. Please contact Beat-Sonic
for up to date compatibility information.
- Depending on vehicle model, extensive disassembly may be required to install the CS5EP
harness and front camera. Accordingly, this product should be installed by an experienced
motor vehicle technician or automotive electrical professional.
- This product will not rectify any pre-existing faults with the electrical system, factory camera
and/or display unit.
- The user assumes all responsibility for any damages and/or injuries caused as a result of
improper installation.
■ Precautions
- Perform installation with patience and due care to prevent damage to this product or any part
of the vehicle.
- Do not use pointed objects or apply excessive pressure to the selector button.
- Ensure all connectors, cables and terminals are correctly secured and fully inserted. Loose
and/or improperly secured connectors will cause malfunction.
- Always grasp the connector plug when disconnecting the cable harness. Never disconnect
connectors by pulling on the harness wires as serious damage can occur.
- Do not disassemble, modify or attempt to repair this device.
- Beat-Sonic and its affiliates shall not be held responsible for any consequence, either directly
or otherwise, as a result of installing and/or using this product.
- Disconnect negative terminal of the vehicle battery prior to installation to prevent risk of short
circuit.

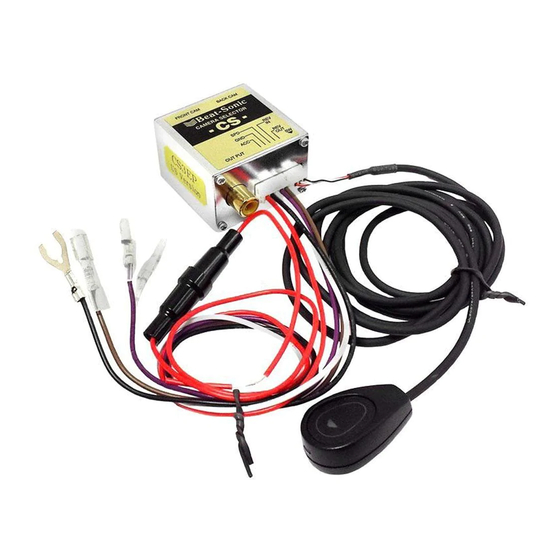

■ Contents
- Interface Module and Harness x 1
- Selector Button x 1
- Posi-Tap x 1
*Front Camera Not Included. Please purchase separately.

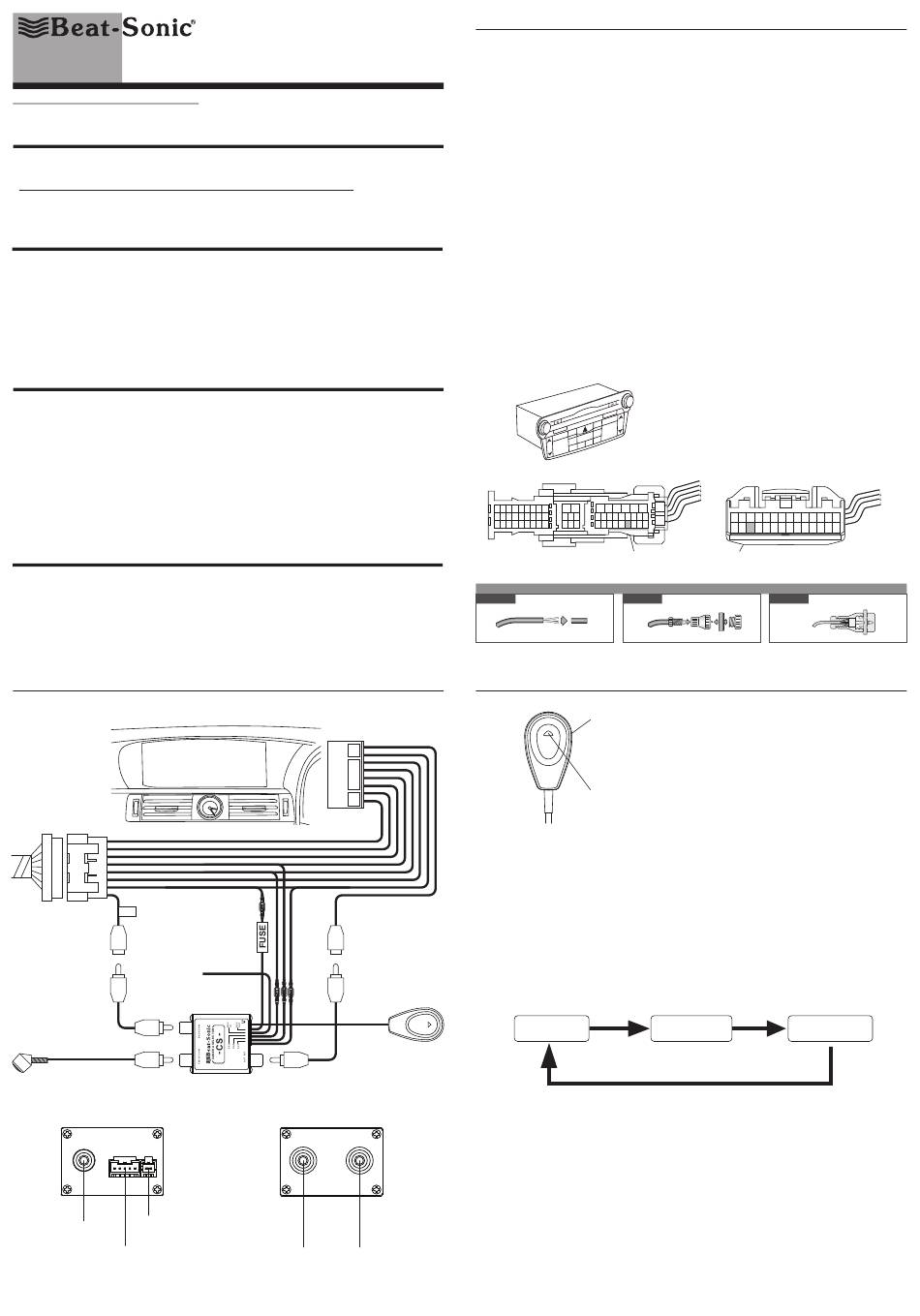

Connection Diagram
*Display size and position
Multi-Display
will vary depending on
model and grade.
24-Pin Connector
OUT PUT
Speed Sensor
Input*
Front Camera (Sold Separately)
Front
Camera Out
Selector Button Connector
Connects to factory
Connect to Selector Button
Multi-Display
Main Harness Connector
Connects to main 24-Pin
Harness
NO:000001
Instruction Manual
- RCA Video Cable 0.5m x 2
- Instruction Manual x 1
24-Pin Connector
Selector
Button
*Optional connection to vehicle speed sensor
wire for low speed Front Camera Auto Turn-On.
Insulate with tape if no connection.
Rear
Back Camera Input
Front Camera Input
Connects to factory
Connects to aftermarket
backup camera output
front camera
Installation
Disconnect the negative terminal of the vehicle battery and wait at least 90 seconds before
proceeding to prevent accidental airbag deployment.
1. Remove all necessary parts to gain access to the rear of the Multi-Display.
2. Connect the CS5EP 24-pin harness directly behind the Multi-Display and inline with
the factory harness in a daisy chain configuration.
3. (Optional) Connect the Speed Sensor Input to the speed sensor wire located behind the
Radio Receiver Head Unit. Speed sensor connection will enable low speed Front Camera
Auto Turn-On feature. See below for location of speed sensor wire.
4. Install the front camera ensuring that power for the front camera is connected according to
the manufactures instructions. Connect the front camera video cable to the CS5EP module.
5. Install the Selector Button in an easily accessible location for the driver.
6. Reconnect the battery terminal and test for correct operation before reassembling all parts.
Programmable Option - Speed Sensor Connection
The Front Camera can be programmed to turn on automatically at low speeds to assist
parking. See other side of this manual for Front Camera Auto Turn-On programmable settings.
To enable this feature, the Speed Sensor Input wire of the CS5EP must be connected to the
speed sensor wire of the vehicle. This connection is not necessary if Front Camera Auto-Turn
On is not required and should be insulated with tape for no connection.
The speed sensor wire is located behind the Radio Receiver Head Unit.
With Lexus Navigation: Pin# 56 of the the 59-pin connector.
Without Lexus Navigation: Pin# 17 of the 28-pin connector.
*2015 GS 350 Radio Receiver Head Unit shown.
Radio Receiver Head Unit will vary depending on
model and grade.
With Navigation
10 11
12 13 14 15 16 17
1 2 3 4 5 6 7 8 9
18 19 20 21 22 23 24 25 26
27 28 29
30
31
32
33
34
35
36
37
38
39 40 41 42 43 44 45 46 47
48 49 50
51
52
53
54
55
56
57
58
59
Speed Sensor Wire on Pin# 56
Viewed with wire harness exiting rear of connector and away from viewer
Use the Posi-Tap wire joiner to connect the Speed Sensor Input
1
Strip and bare the end of the wire
Operation
Selector Button
Press button to display Front Camera
Press again to display Backup Camera (PTV Mode Enabled)
*Selector Button also used to effect
changes in programmable settings.
Orange LED
LED flashes when front camera is activated.
LED is ON when reverse camera is activated.
LED is dimly illuminated with ACC ON and no cameras activated.
Camera Display Selection - Default Settings (PTV Mode Enabled)
Press the Selector Button to display the Front Camera. The Front Camera will turn off after
15 seconds and return to the previous Lexus Display Screen.
Pressing the Selector Button again before the 15 seconds has elapsed will display the Backup
Camera. The Backup Camera can be displayed at any time without having to select reverse
gear. The Backup Camera will turn off after 15 seconds and return to the Lexus Display Screen.
Pressing the Selector Button a 3rd time before the 15 seconds has elapsed will also return to the
Lexus Display Screen.
1st Press
Lexus Display
Screen
* Selecting reverse gear will display the Backup Camera and override the Front Camera
display (if currently selected). Shifting out of reverse gear will then return to the Lexus
Display Screen regardless if the Front Camera was previously selected (default settings only).
Camera Display Selection - Optional Settings
● 2nd press Backup Camera PTV Mode (i.e. viewing of Backup Camera without selecting
reverse gear) can be disabled using the Backup Camera PTV Mode programmable settings
on the other side of this installation manual.
● The duration of the camera display (default 15 seconds) can be changed using the Camera
Display Timer programming settings on the other side of this installation manual.
● The Front Camera can be programmed to automatically display at low speeds to assist in
parking. See Front Camera Auto Turn-On programmable settings on the other side of this
installation manual.
Without Navigation
1
2
3
4
5
6
7
8
9 10 11 12 13 14
15 16 17 18 19 20 21 22 23 24 25 26 27 28
Speed Sensor Wire on Pin# 17
2
3
Attach to connecting cable
Hand tighten to secure
2nd Press
Front
Backup Camera
Camera
(PTV Mode Enabled)
3rd Press
