A U T O M A T E W I R E F R E E S 3 5 A N D S 4 5 P R O G R A M M I N G I N S T R U C T I O N S
SINGLE CHANNEL REMOTE
M O T O R H E A D
Antenna
Charge Connector
• WHEN INSTALLING, ENSURE THE BUT TON ON THE MOTOR HEAD IS ACCESSIBLE.
• THE ANTENNA ON THE MOTOR SHOULD BE AS STRAIGHT AS POSSIBLE AND AWAY FROM DIRECT CONTACT OF
METALS WHERE POSSIBLE.
• CHARGE MOTOR BEFORE INSTALLING (IT TAKES APPROX. 3 HOURS) OR CHARGE MOTOR WHILE PROGRAMMING.
• INSERT BAT TERY PROVIDED INTO BACK OF REMOTE.
• USE A BLUNT OBJECT TO PRESS C & L BUT TONS
1. Remove battery case from remote.
(Squeeze sides together to disengage top)

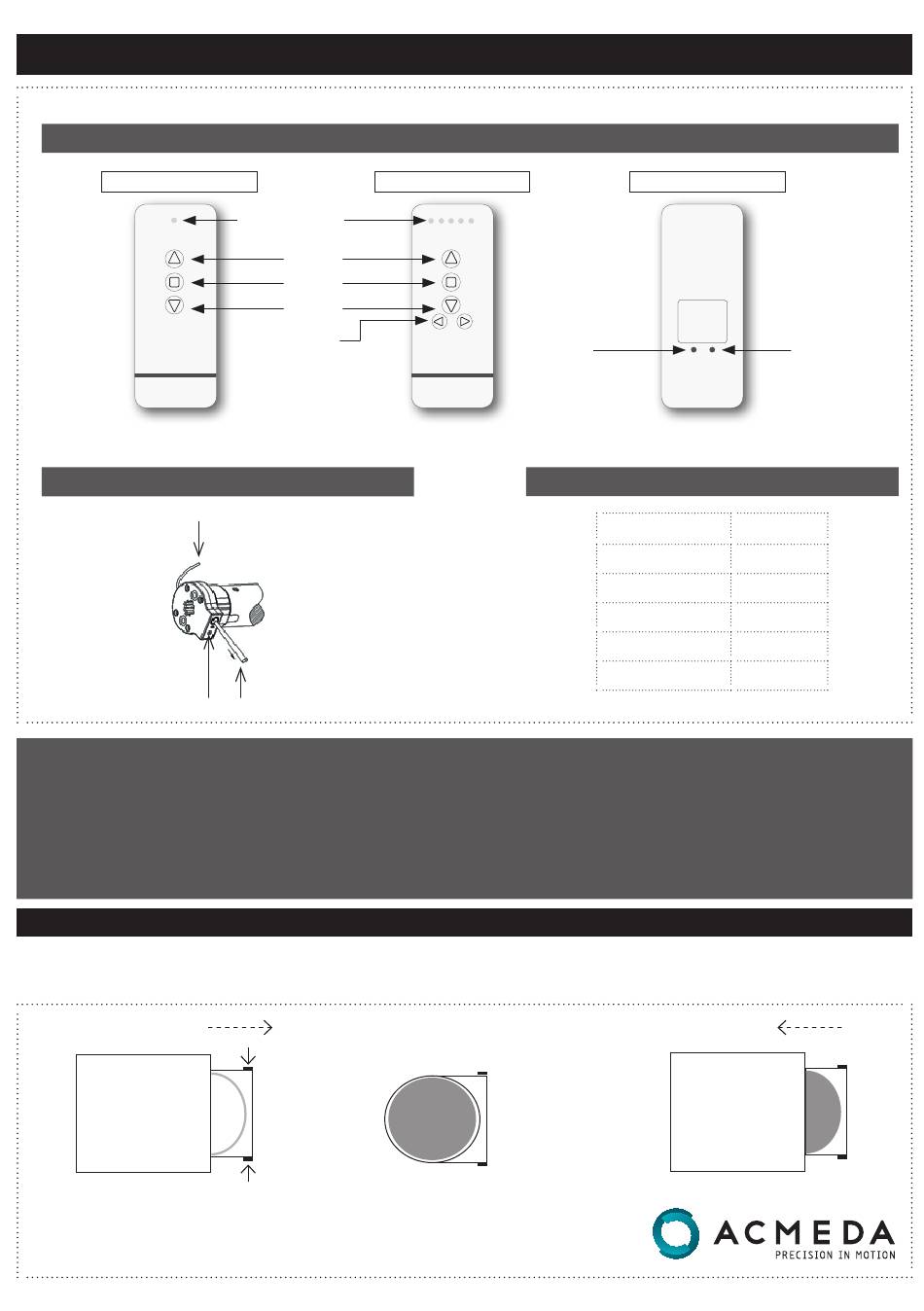

R F 2 0 0 S E R I E S R E M O T E O V E R V I E W
FIVE CHANNEL REMOTE
CHANNEL LIGHTS
UP
STOP
DOWN
CHANNEL
Red Setting Button
I N S E R T I N G B A T T E R Y
2. Place battery into casing.
BACK OF REMOTE
Transmitter
Model: BF-305
Freq: 433.92MHz
Battery: CR2430
C L
CONFIRM LIMIT
T E C H N I C A L D A T A
Capacity
1.1Nm
Frequency 433.92MHz
RPM 25
Volts 7 volts
Protective rating IP40
Current 0.8 amps
3. Flip over and insert into remote.
