Weldclass PLATINUM LT40 Instruction Manual

Lpg burner torch system

PLATINUM LT40 LPG BURNER TORCH SYSTEM

WARNING: Incorrect use of this product & failure to control burning material while using this torch may cause serious

injury &/or death &/or destruction to property. Before using this product, read all instructions and precautions in this

document, and follow them at all times.

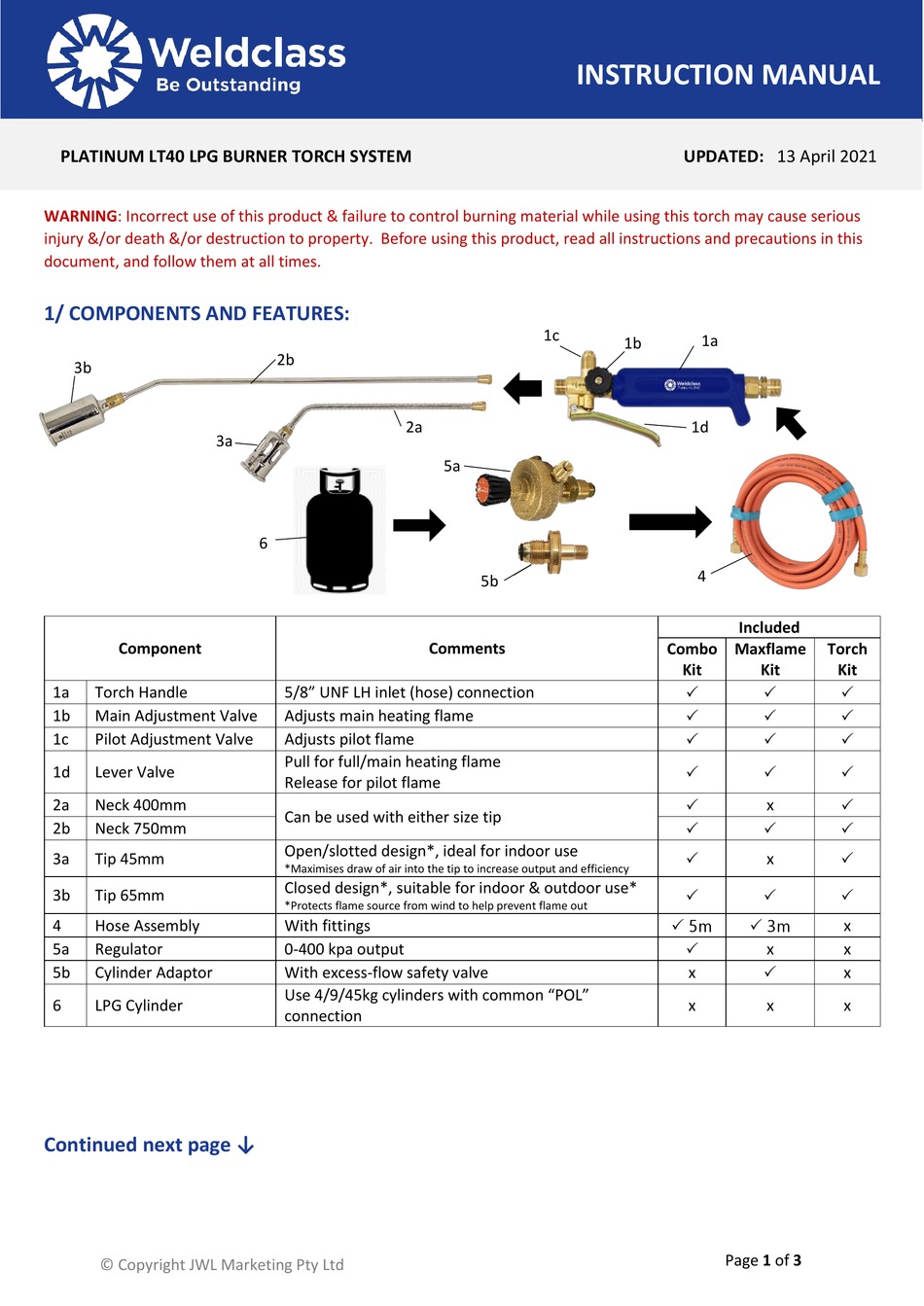

1/ COMPONENTS AND FEATURES:

Component

Torch Handle

Main Adjustment Valve

Pilot Adjustment Valve

Lever Valve

Neck 400mm

Neck 750mm

Tip 45mm

Tip 65mm

Hose Assembly

Regulator

Cylinder Adaptor

LPG Cylinder

Continued next page ↓

Comments

5/8" UNF LH inlet (hose) connection

Adjusts main heating flame

Adjusts pilot flame

Pull for full/main heating flame

Release for pilot flame

Can be used with either size tip

Open/slotted design*, ideal for indoor use

*Maximises draw of air into the tip to increase output and efficiency

Closed design*, suitable for indoor & outdoor use*

*Protects flame source from wind to help prevent flame out

With fittings

0-400 kpa output

With excess-flow safety valve

Use 4/9/45kg cylinders with common "POL"

connection

INSTRUCTION MANUAL

UPDATED: 13 April 2021

Included

Combo

Maxflame

Kit

��

�� 5m

�� 3m

��

Page 1 of 3

Torch

Kit

��

Table of Contents

Need help?

Do you have a question about the PLATINUM LT40 and is the answer not in the manual?

Questions and answers

Summary of Contents for Weldclass PLATINUM LT40

Page 1 INSTRUCTION MANUAL PLATINUM LT40 LPG BURNER TORCH SYSTEM UPDATED: 13 April 2021 WARNING: Incorrect use of this product & failure to control burning material while using this torch may cause serious injury &/or death &/or destruction to property. Before using this product, read all instructions and precautions in this document, and follow them at all times.
Page 2 INSTRUCTION MANUAL PLATINUM LT40 LPG BURNER TORCH SYSTEM UPDATED: 13 April 2021 2/ OPERATING INSTRUCTIONS: a) Assembly Assemble all component in the order shown above, following all safety cautions mentioned under point 3. Note the direction indicated by the arrows above is the direction of gas flow. Ensure valves on bottle/cylinder, regulator and torch are turned off / closed before &...
Page 3 INSTRUCTION MANUAL PLATINUM LT40 LPG BURNER TORCH SYSTEM UPDATED: 13 April 2021 • Ensure all connections and equipment are clean and free of dirt and grease. Do NOT use grease or oil on any connections or components. • Equipment is designed for use with propane / LPG gas only and must NOT be used with any other gas(es) •...
