TruCorp TruUltra TruIV Block User Manual

Ultrasound training model
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

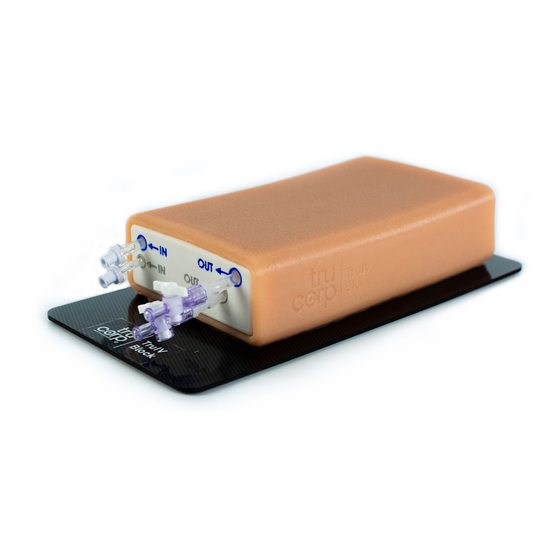

TruIV Block
User Manual
IV Cannulation
Ultrasound Training Model
Part of the TruUltra product range, the TruIV Block allows learners to gain
proficiency in the skills associated with IV cannulation. Featuring 8 veins
(superficial and deep), users can practise the use of ultrasound during IV
procedures.
Fascia layers enhance realism, while the model is easily transportable and can
be set-up in less than 5 minutes – perfect for a busy teaching environment. The
TruUltra material known for its durability, will withstand repeated use of
approximately 4000 needles before needing replaced.
TruIV Block is ideal for emergency medicine, radiology, surgical training
programs, ultrasound training programs, simulation centres, medical education
facilities, and ultrasound manufacturers for ultrasound education and
demonstrations.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TruUltra TruIV Block and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TruCorp TruUltra TruIV Block

Summary of Contents for TruCorp TruUltra TruIV Block

  • Page 1 TruIV Block User Manual IV Cannulation Ultrasound Training Model Part of the TruUltra product range, the TruIV Block allows learners to gain proficiency in the skills associated with IV cannulation. Featuring 8 veins (superficial and deep), users can practise the use of ultrasound during IV procedures.

  • Page 2: Table Of Contents

    Contents Product specifications ......................3 Package contents ........................3 Recommended equipment sizes.................... 3 Initial Set-Up & Fluid Insertion ....................4 IV cannulation ........................8 Removing Fluids ........................9 Replacing the ultrasound insert ..................... 9 Care and maintenance ......................9 Warranty ..........................10...

  • Page 3: Product Specifications

    Product specifications Product Code: TIV100 TruIV Block weight: Approx. 1.2kg TruIV Block insert dimensions: 21 x 12 x 5cm Full shipment weight: Approx. 2kg Full shipment dimensions: 32 x 19 x 19cm Package contents • 1x TruIV Block unit (TIV100) •...

  • Page 4: Initial Set-Up & Fluid Insertion

    Please follow these next steps to insert fluid into the model: 1. Prepare approx. 200ml of artificial blood and add to a luer lock syringe. We recommend purchasing TruCorp’s artificial blood concentrate (product code: CVB250 – not supplied with the model) but alternative brands are suitable.
  • Page 5 2. There are 2 layers in the TruIV Block to feature 4 superficial and 4 deep veins. For each layer, there is 1 port labelled ‘IN’ and 1 port labelled ‘OUT’. Insert fluid here for IV Cannulation in superficial veins Fluid will exit here when sufficient fluid has been inserted in...
  • Page 6 5. To insert fluid for the superficial veins, attach the blood-filled syringe to the upper blue ‘IN’ connector 6. Slowly push the blood through the syringe until it is seen exiting the tube connected to the upper blue ‘OUT’ port with no air bubbles 7.
  • Page 7 8. To insert fluid for the deep veins, attach the blood-filled syringe to the upper grey ‘IN’ connector 9. Slowly push the blood through the syringe until it is seen exiting the tube connected to the lower grey ‘OUT’ port with no air bubbles...

  • Page 8: Iv Cannulation

    10. Close the switch on the lower grey ‘OUT’ tube for the deep veins by turning it so it no longer aligns parallel to the model 11. The 2 tubes at both of the ‘OUT’ ports can be disconnected now if desired IV cannulation 1.

  • Page 9: Removing Fluids

    8. Self-regenerating TruUltra material has been designed to facilitate 4000+ needle penetrations which will disappear by up to 90% after a 24h resting period (500+ needles for each of the 8 veins) 9. A 20G needle should be used for IV techniques for optimal performance. Using a needle larger than this may void the warranty if damage is caused to the model (please refer to page 10 for warranty information) Removing Fluids...

  • Page 10: Warranty

    Warranty TruCorp warrants this unit to be free of defects in materials and workmanship and to give satisfactory service for a period of 1-year from the date of delivery. This ensures that our customers receive maximum coverage on each product. If the unit should malfunction it must be returned to the factory for evaluation.
  • Page 11 3. Warranty is void if third party products are seen to have damaged or caused failure of the TruCorp models. Please direct all warranty and repair inquiries to: TruCorp Ltd 33 Waringstown Road Lurgan, Co. Armagh BT66 7HH N.
