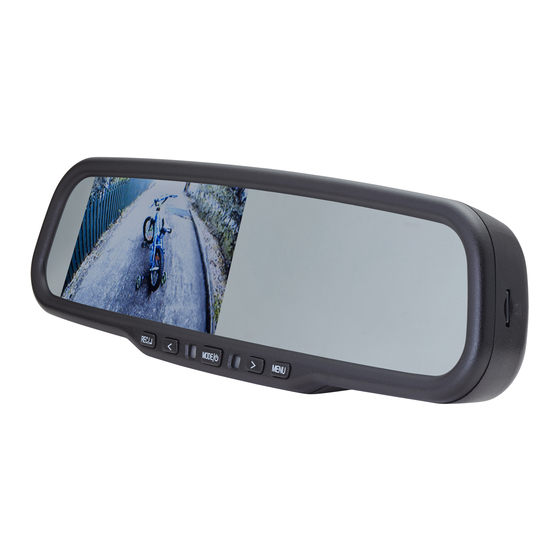

4.3" factory mount mirror monitor with built-in dvr
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
4.3" Factory Mount Mirror
Monitor with Built-In DVR
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MM-4320-DVR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Echomaster MM-4320-DVR

Summary of Contents for Echomaster MM-4320-DVR

  • Page 1 4.3” Factory Mount Mirror Monitor with Built-In DVR User Manual...

  • Page 2: Box Contents

    Introduction Thank you for purchasing your EchoMaster Mirror Monitor. EchoMaster mirror monitors are designed to improve safety by providing high quality images from camera inputs. This may help to improve vehicle maneuvering capabilities by displaying blind spots or areas not normally visible to the driver.

  • Page 3: Fitting Instructions

    Remove the original mirror from the vehicle and replace with the MM-4320-DVR. If your factory mounting bracket differs from the MM-4320-DVR, there is a supplied metal button that can be bonded to the windshield to allow the new mirror to fit.
  • Page 4 Installation Guide MM-4320-DVR 4.3” Factory Mount Mirror Monitor with Built-In DVR Operating Instructions (continued) REC/LOCK MENU LEFT ARROW RIGHT ARROW SENSOR LED INDICATOR PWR/MIC Pressing the menu button when a video signal is being viewed will allow you to adjust the following parameters.
  • Page 5 Installation Guide MM-4320-DVR 4.3” Factory Mount Mirror Monitor with Built-In DVR Operating Instructions (continued) Movie Mode menu: Movie Mode Adjust the resolution of the recording. Movie Quality Adjust the picture quality (lower quality will increase the amount of video able to be recorded).

  • Page 6: Wiring Diagram

    Installation Guide MM-4320-DVR 4.3” Factory Mount Mirror Monitor with Built-In DVR Operating Instructions (continued) General Settings: Beep Turns the button press beep on or off. Clock Settings Allows you to set the current date and time. Date Format Change the displayed format of the date.

  • Page 7: Specifications

    Installation Guide MM-4320-DVR 4.3” Factory Mount Mirror Monitor with Built-In DVR Dimensions (mm/in) 83mm / 3.3” 278mm / 11” 270.91 mm Specifications MM-4320-DVR Screen Size 4.3” Aspect Ratio 16:9 Power Supply 12VDC Resolution 480x272 Luminance 1000 Contrast 500:1 TV Format...
  • Page 8 15500 Lightwave Drive, Suite 202, Clearwater, Florida 33760 Woolmer Way, Bordon, Hampshire, United Kingdom email - support@aampglobal.com (US) tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast) email - technical.eu@aampglobal.com (Europe) EchoMaster is a Power Brand of AAMP Global. EchoMaster.com REV280717-B...
