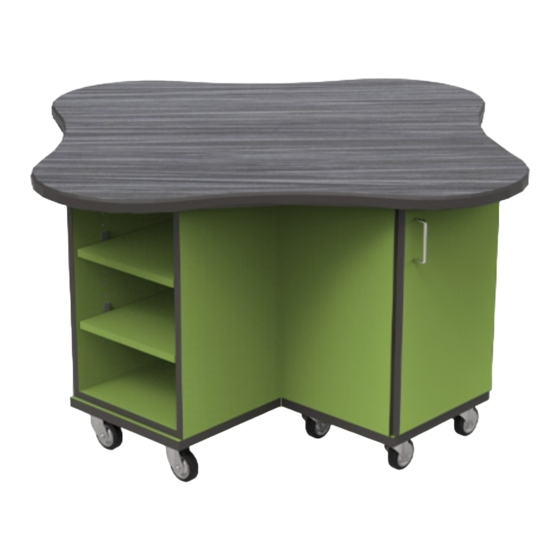

WB Manufacturing Quad XL Assembly Instructions

Assembly Instructions
Before you begin, please make sure all parts and proper quantities are included. (See Part Identifier Key) Any parts damaged during shipment must be
reported within 24 hours of receipt. To report information regarding damages or if you have any questions, please call 800.242.2303.

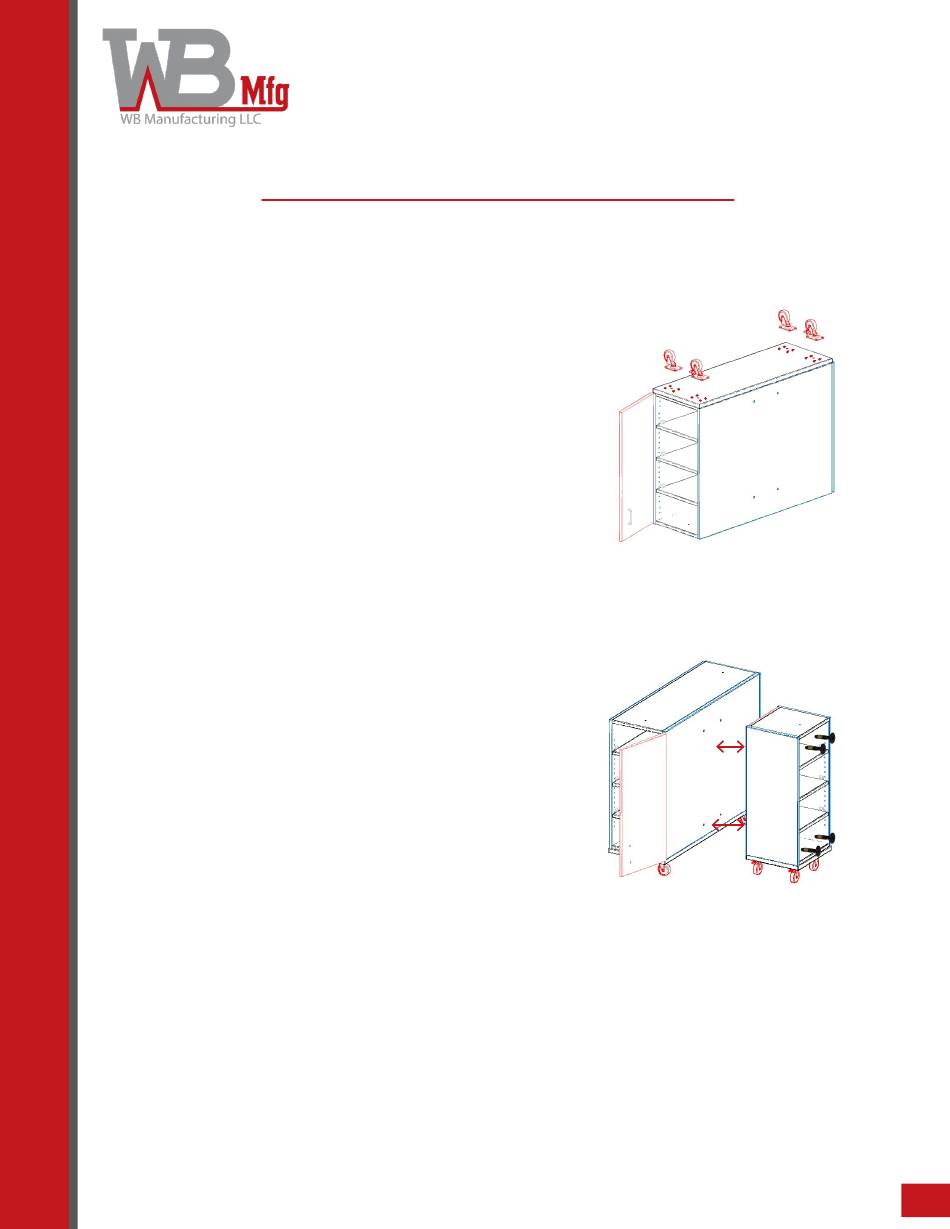

Step 1:
• Place the longer base cabinet upside down on a
protected flat surface with it's caster base facing up.
(Upon installer's discretion, remove doors and shelving
before turning cabinets over to lessent the weight of
the cabinets.)
Step 2:
• Align caster with the threaded inserts. (See image to the
right; threaded inserts are marked in red as an example
for assembly instruction ONLY.)
• Use the 1/4-20x25mm joint connector bolts to attach
casters to the base cabinet.
• Repeat for remaining casters. (Make sure you have two
locking and two non-locking casters on this cabinet.)
Step 3:
Steps 1-2
• Repeat for the two smaller base cabinets.
Step 4:
• With someone's help, position the cabinets right side up.
Make sure to have the all locking casters' levers pushed
down to secure cabinet in place.
Step 5:
• Align the pre-drilled holes in cabinet
threaded inserts in cabinet (A).
• With cabinets aligned together, connect them with
the 1/4-20x30mm joint connector bolt w/ loctite going
through cabinet (B). Use a 4mm Allen wrench or 4mm
Hex bit and a screw gun to tighten as needed.
• Use 4 bolts total to connect cabinet
• Repeat Step 5 with the second base cabinet.
wibenchmfg.com
(B)
with the
(A) to cabinet (B).
507 E. Grant St. Thorp, WI 54771 • P - 800.242.2303
1-2
Steps
5
Step
A
Quad XL
Image shown is
upside down in
order to apply
casters.
B
V042519 subject to change.
