Page 1

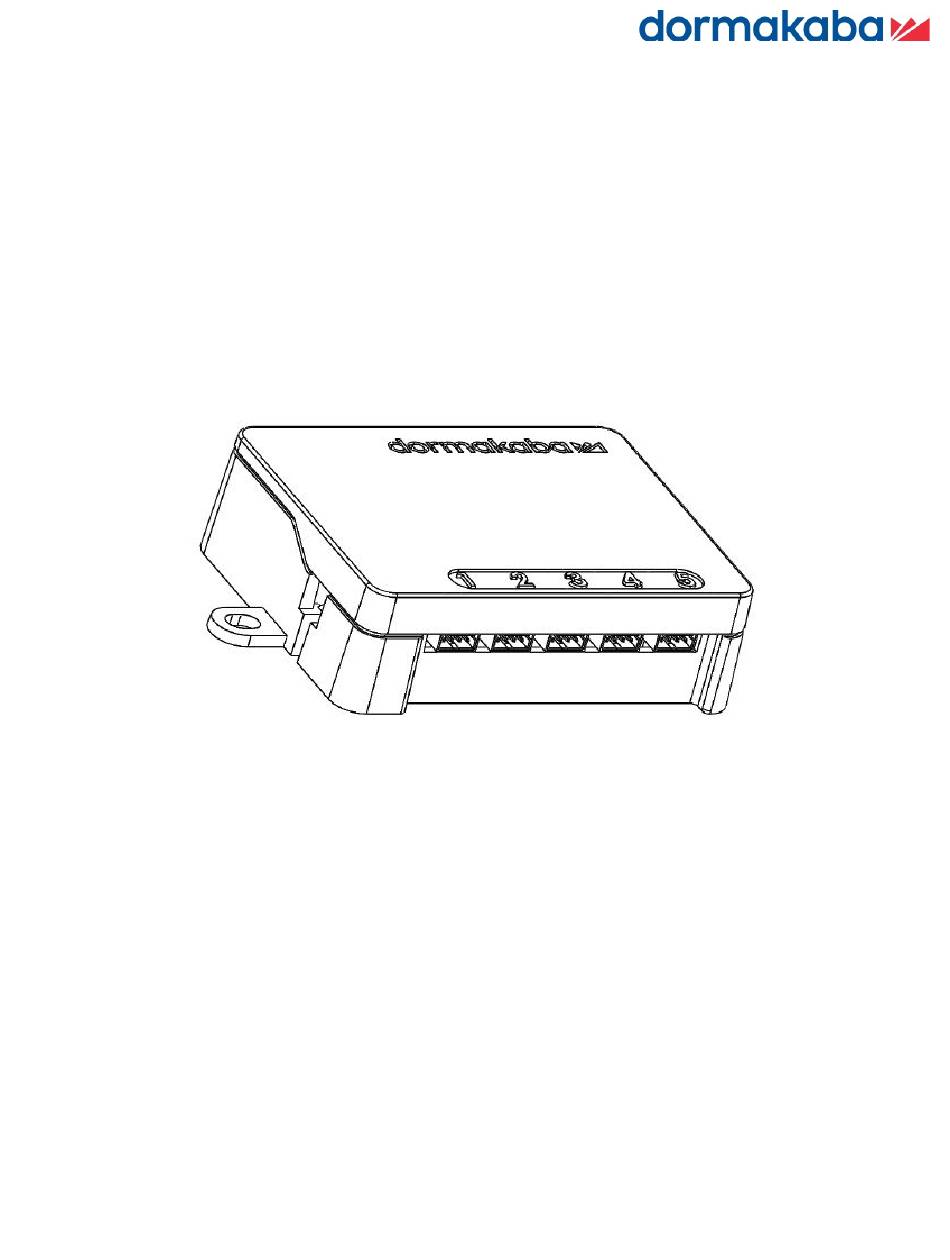

Multiplexer Installation Guide dormakaba USA Inc. | Multiplexer Installation Guide 7038.0320...
Page 2
Follow these steps to connect a Multiplexer to a LA GARD safe lock system: Mount the Multiplexer to the safe wall via the holes and screws provided; refer to the diagram below. 2. Connect each safe lock into the numbered input ports on the Multiplexer (up to 5).
