Reborn Launch Wakeboard Tower
Polished
Installation Guide

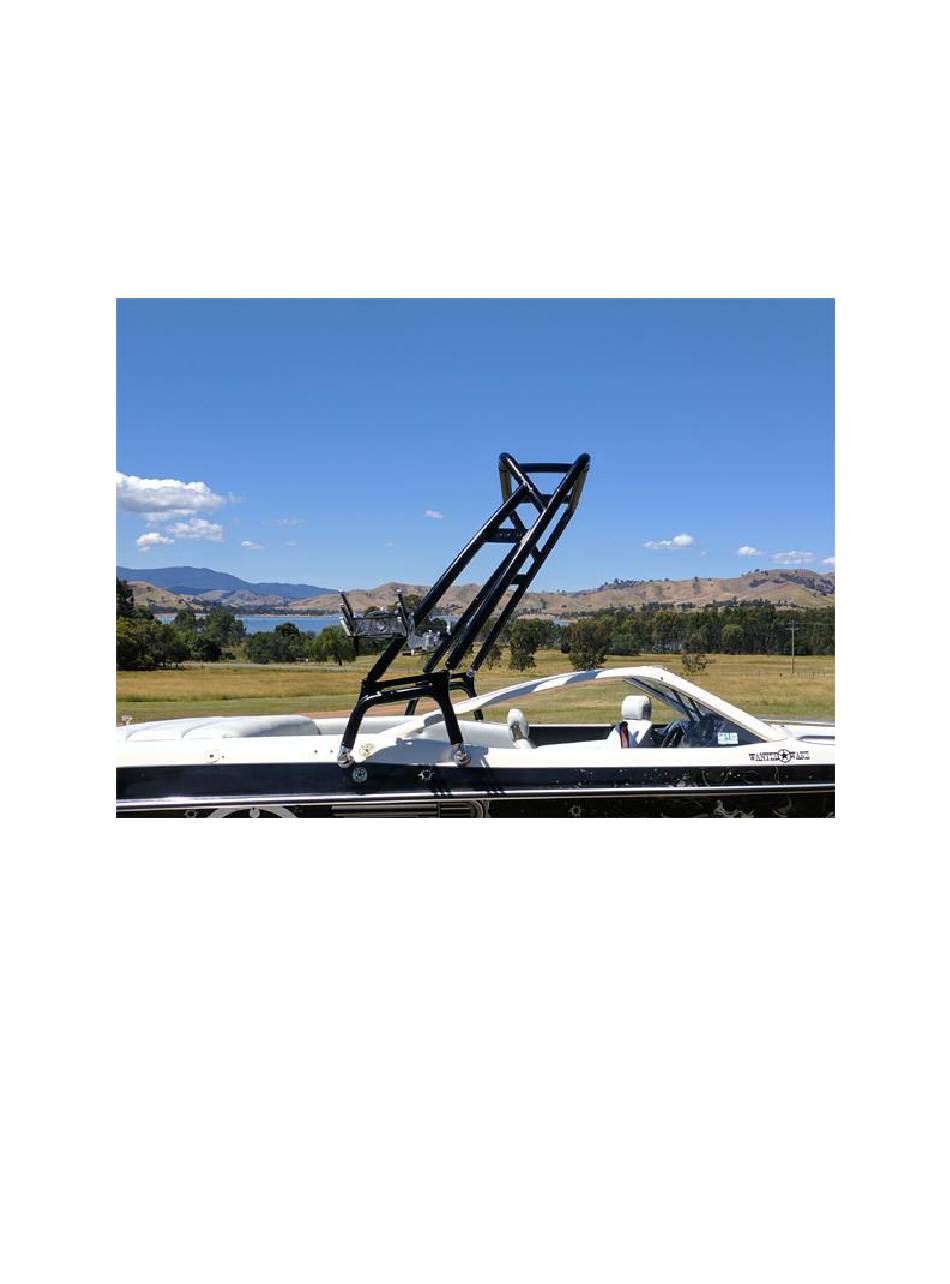

Our Reborn Launch Wakeboard Tower uses many common parts with
unique design features that make it aff-ordable, adjustable, and easy to
install, fast to fold down and erect. Nice designed bracket to hold the
tower stay at the position for storage. It is a forward-facing design and
there are five main components -- Top Section, Left Leg, Right Leg, side
bars and mounting bases.
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Reborn Launch Wakeboard Tower Polished
- Page 1 Reborn Launch Wakeboard Tower Polished Installation Guide Our Reborn Launch Wakeboard Tower uses many common parts with unique design features that make it aff-ordable, adjustable, and easy to install, fast to fold down and erect. Nice designed bracket to hold the tower stay at the position for storage.
- Page 2 IMPORTANT NOTES FOR INSTALLING, MAINTAINING AND USING YOUR TOWER For a High Quality, Trouble Free Installation, read the entire Installation Manual completely before you begin Note that this ins action guide is only a guideline. Each boat is different and improvisation is needed to mount your tower on your boat.
- Page 3 Begin Installation During installation, you should protect the tower by doing all the layout of the tower on a tarp, blanket or carpet and leave as much plastic wrapping on the legs and top section as possible. Protect the general mounting area of your boat by covering it with a tarp or blanket.
- Page 4 Very Important Note: The hem joints should connect with the front legs as shown in the exploded drawing. And they must be attached after you connect the rear legs to the base bar, because the hem joints could be screwed in or out to adjust the clearance to fit. If you do opposite, you will not have any clearance and meet trouble when you attach the rear leg onto the base bar.
- Page 5 Step 2: Using the measurements from the elevation drawing identify where the best place is to fit the tower on your boat.
- Page 6 Step 3: Cover the area where the base mounts will be placed with masking tape. This should be done in all areas where the tower will be mounted and the near surrounding area. This will help eliminate scratches to your boat while adjusting and measuring your tower attachment points.
- Page 7 Tighten the deck mounts firmly so that the mounts will rotate under pressure while turning the mount with the leg attached (note the mounts will be very hard to rotate by hands) Step 4 Attach the tower onto the deck mounts. To make your job easier, you can move the tower top from the base bar, and assemble the base bars with the MOUNT SET.
- Page 8 How to fold the tower 1. Disconnect the Quick release knob of each rear legs from the deck mount. 2. Press the tower forward of your boat slowly. Connect the brackets to hold the tower stay at the position for storage...
- Page 9 Care and Maintenance 1. Be sure to check and retighten all bolts and connections prior to every use. 2. Be cautious when towing or driving under obstacles, low hanging structures or trees with your tower mounted. 3. When the tower is folded, always use a vest or other cushion to protect your boat where the tower and boat touch each other 4.
