SDI-12 User Guide
AquaVent
July 1, 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AquaVent SDI-12 and is the answer not in the manual?

Questions and answers

Related Manuals for Solinst AquaVent SDI-12

Summary of Contents for Solinst AquaVent SDI-12

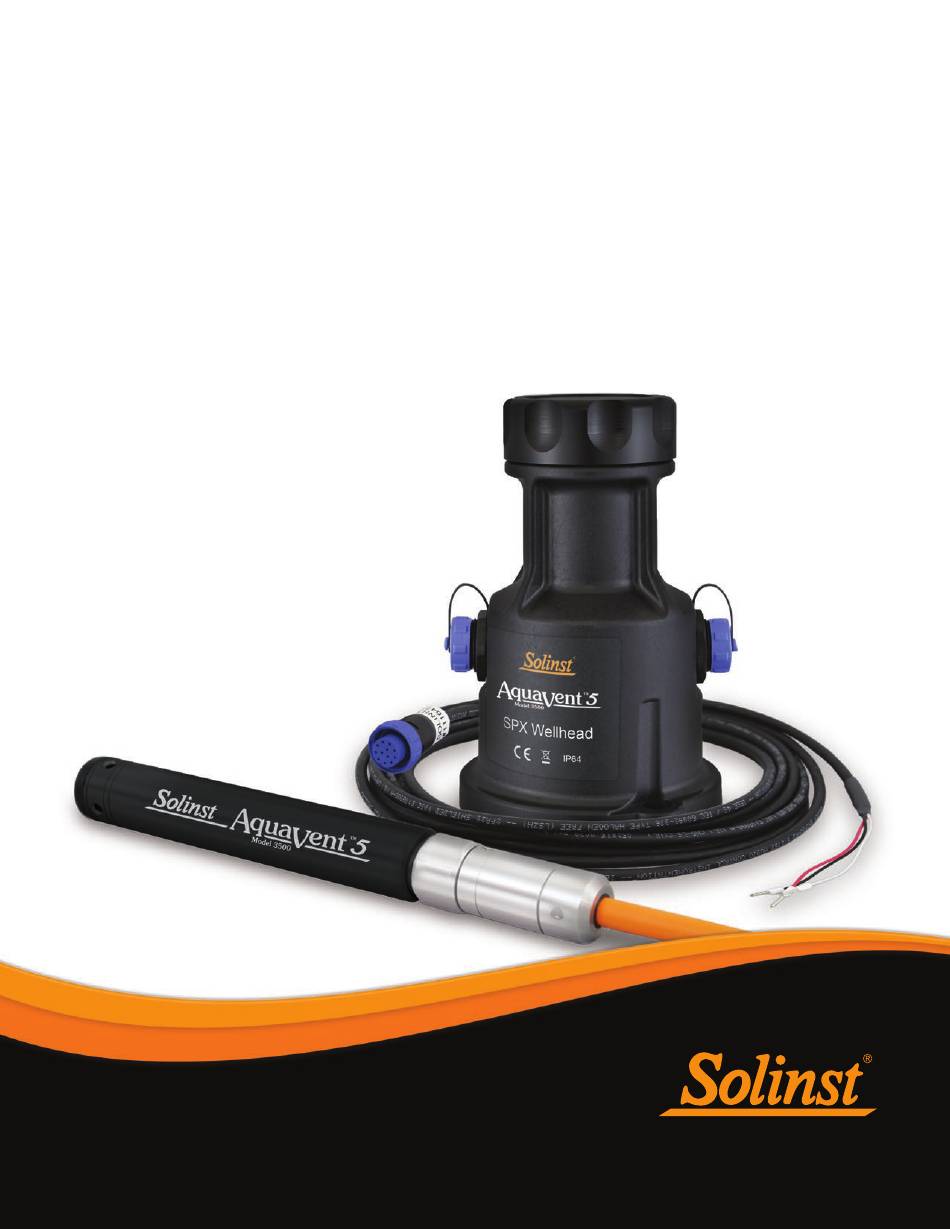

  • Page 1 More Info | Instructions | Get Quote SDI-12 User Guide AquaVent July 1, 2020...

  • Page 3: Table Of Contents

    1.1 SDI-12 Interface 1.2 LED Status 2 AquaVent Independent Recording Option 2.1 Data Downloading and Programming in Field 3 AquaVent SDI-12 Setup 3.1 Setting the SDI-12 Device Address 3.2 AquaVent SDI-12 Installation 4 Aquavent SDI-12 Operation 4.1 The SDI-12 Address 4.2 Activation and Verification...

  • Page 5: Introduction

    Solinst AquaVent and an SDI-12 network. 1.1 SDI-12 Interface Solinst 2-wire signals are converted to SDI-12 signals by the SPX Wellhead. The SDI-12 Connector Cable, plugged into the side of this Wellhead, has three wires which connect to an SDI-12 master. These wires are colour-coded according to Table 1-1.

  • Page 6: Led Status

    SDI-12 User Guide for AquaVent Technical Specifications Standard Compliance: SDI-12 Protocol, Version 1.3, July 18, 2005, except 'A' command Maximum Sample Rate: 1 SDI-12 sample every 3 seconds with AquaVent not logging. +12V Input: 9.6VDC to16.0VDC Supply Current: Normally peaks at several 10’s of mA, but idles around 30 uA. SDI-12 Connector Cable Length: 4.5 m (15 ft) Maximum Vented Cable Length:...

  • Page 7: Aquavent Independent Recording Option

    Before connecting the AquaVent to the SDI-12 master, it can be programmed and started using Solinst Levelogger PC Software (see Figure 3-1). All standard sampling options provided by Solinst Levelogger PC Software are available while the AquaVent is operating as an SDI-12 sensor. The AquaVent NOTE logger can be set to record at a user-defined sampling rate;...

  • Page 8: Aquavent Sdi-12 Setup

    To set the device address for the AquaVent logger, it must be connected to the Levelogger PC Software. The AquaVent communicates with the Software using a USB Connector Cable connected to the SPX Wellhead. The USB Connector Cable connects to the 10-pin (Solinst Protocol) connector on the Wellhead. NOTE Wellhead...
  • Page 9 SDI-12 User Guide for AquaVent After you start Levelogger Software, the Main Window will appear, with the Datalogger Settings tab open. Figure 3-2 Dataloggers Settings Tab Select the appropriate device from the centre Com Port drop-down menu. NOTE Once you are finished Click to retrieve the current settings from the connected AquaVent logger.

  • Page 10: Aquavent Sdi-12 Installation

    6) The SPX Wellhead and the AquaVent logger are physically and properly hooked up to the SDI-12 master and the SDI-12 network. SDI-12 Wellhead Connector Cable Wire Connections to SDI-12 Master Vented Cable AquaVent 5 Logger Figure 3-3 AquaVent SDI-12 Installation Page 10...

  • Page 11: Aquavent Sdi-12 Operation

    Since the SDI-12 ‘A’ command is unsupported, the SDI-12 ‘ ’ commands discussed, = the device address may only be changed by using Solinst Levelogger PC Software SDI-12 device address assigned the (see Section 3.1). AquaVent, 4.2 Activation and Verification 1) Check the SDI-12 device Address of the AquaVent on your SDI-12 network.

  • Page 12: Changing Spx Wellhead Batteries

    AquaVent logger. 4.4 Changing SPX Wellhead Batteries After replacing the batteries, it is recommended that the Solinst Levelogger PC Software Diagnostic Utility is used to reset the battery indicator. See the Vented Dataloggers User Guide for instructions to do this.

  • Page 13: Sdi-12 Supported Commands

    AquaVent, 12 master. A typical command/reply would be: 0!0<CR><LF> where the ‘0’s represents the AquaVent SDI-12 device address and <CR> represents a carriage return (Hex 0D) and <LF> represents a line feed (Hex 0A). All replies from an AquaVent are terminated with <CR><LF>. All SDI-12 master commands are terminated with an exclamation mark ‘!’...

  • Page 14: Change Address Command: Aab

    SDI-12 User Guide for AquaVent 5.4 Change Address Command: aAb! This command is NOT supported by the Solinst AquaVent system (see Section 3.1). 5.5 Start Measurement Command: aM! This command tells the AquaVent to take a measurement. However, the measurement is not returned after this command. Instead, the time and number of measurements that can be expected will be replied.

  • Page 15: Start Concurrent Measurement With Checksum: Acc

    SDI-12 User Guide for AquaVent 5.9 Start Concurrent Measurement Command with Checksum: aCC! This command is similar to the Start Concurrent Measurement with the addition of a checksum. For example: 0CC!000302<CR><LF> would then, after 3 seconds, reply to the aD0! command as follows: 0D0!0+24.6038+0.34513L<DEL>j<CR><LF>.

  • Page 16: Troubleshooting

    Or check/ replace the batteries in the Wellhead. If the AquaVent is in logging mode, try to change it to stop it with the Solinst Levelogger PC Software. This can result in less measurement retries being needed.

  • Page 17: References

    SDI-12 User Guide for AquaVent 7 References SDI-12 Support Group (Technical Committee). SDI-12: A Serial-Digital Interface Standard for Microprocessor-Based Sensors, Version 1.3, July 18, 2005. Available [online]: http://www.sdi-12.org/ Page 17...
  • Page 18 High Quality Groundwater and Surface Water Monitoring Instrumentation Solinst Canada Ltd., 35 Todd Road, Georgetown, ON L7G 4R8 Tel: +1 (905) 873-2255; (800) 661-2023 Fax: +1 (905) 873-1992 instruments@solinst.com...
