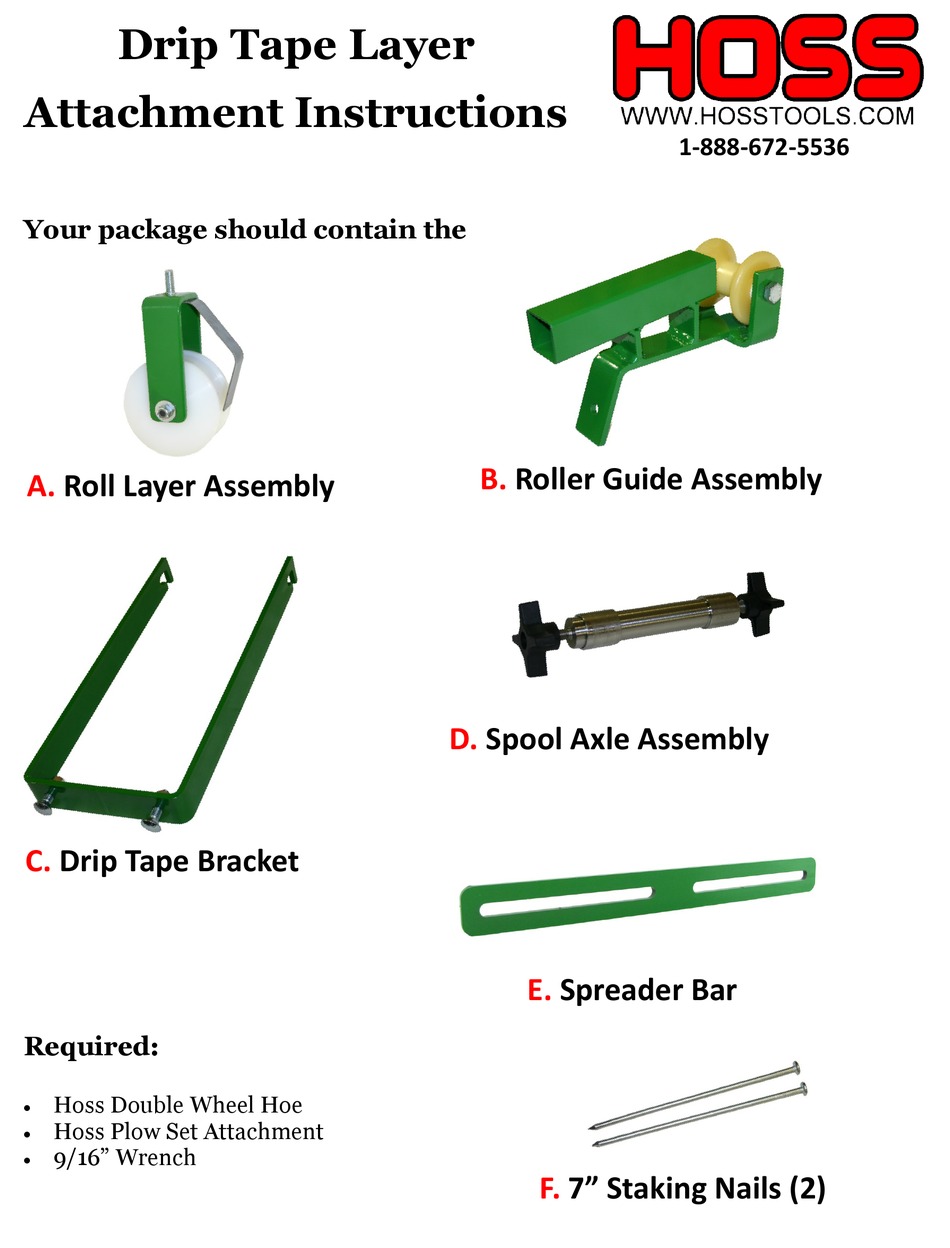

- Page 1 Drip Tape Layer Attachment Instructions 1-888-672-5536 Your package should contain the Roller Guide Assembly Roll Layer Assembly Spool Axle Assembly Drip Tape Bracket Spreader Bar Required: Hoss Double Wheel Hoe Hoss Plow Set Attachment 9/16” Wrench 7” Staking Nails (2)
- Page 2 1-888-672-5536 Use with our Drip Tape rolls only. Our Drip Tape Layer Attachment was designed to lay our 8 mil, 1640 ft. rolls of Drip Tape that are available at www.hosstools.com. We don’t recommend trying to retrofit other roll styles.
- Page 3 Assembly Instructions 1-888-672-5536 1. Insert Roll Layer Assembly (A) below Wheel Hoe toolbar. Place the Roll Layer Assembly (A) underneath the tool bar of the Wheel Hoe so that the carriage bolt extends through the top of the Wheel Hoe tool bar at the location indicated by the red ar- row.
- Page 4 Assembly Instructions 1-888-672-5536 3. Attach Drip Tape Bracket (C) above Wheel Hoe toolbar. Align the holes in the Drip Tape Bracket with the long rail on the Wheel Hoe toolbar. Insert carriage bolts from the bottom of the Wheel Hoe tool bar through the Drip Tape Bracket and fasten with nuts.
- Page 5 Assembly Instructions 1-888-672-5536 5. Insert Drip Tape into Drip Tape Bracket (C). Slide the Spool Axle Assembly (D) with Drip Tape into the grooves in the top of the Drip Tape Brack- et (C). Be sure to install the Drip Tape Roll in the correct direction so that tape feeds off the top of the roll, not the bottom of the roll.
- Page 6 Install the Plow Set in the back two holes on the Wheel Hoe toolbar so that they are in the hilling position. Install the Drip Tape Layer Attachment and Drip Tape Roll according to the Assembly Instructions in this document. Ensure the Drip Tape emitters will be facing upward once laid.
- Page 7 Operation Instructions 1-888-672-5536 Lay drip tape in furrow along row. Push the Double Wheel Hoe down the row to lay the drip tape in the furrow and cover the tape. It’s important to maintain a constant speed. Starting and stopping can cause the tape to loos- en on the spool.
- Page 8 It does not cover discoloration caused by exposure to sunlight or chemicals. Hoss Tools will repair or replace any item that proves to be defective in materials or workmanship. In the event repair is not possible, Hoss Tools will either replace your item with a new item of similar composition and price, or refund the full purchase price of the item —...
