Summary of Contents for THOR MS-PD1002

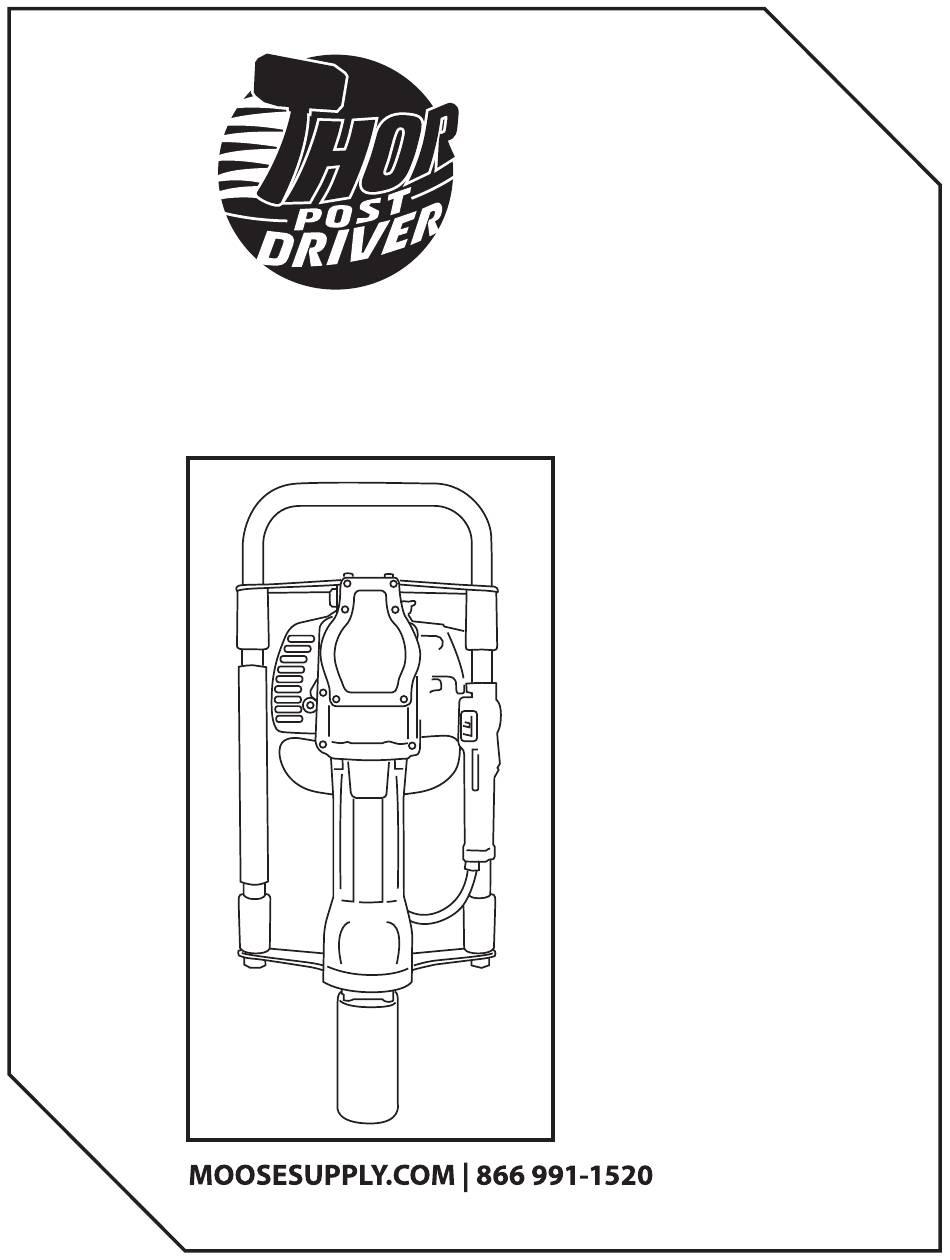

- Page 1 THOR– Post Driver Instructions THOR POST DRIVERS MS-PD1002 MS-PD1004 Made in China...
-
Page 2: Basic Parts
The design of these gas-powered post drivers have made them very portable. THOR post drivers work with a variety of fence posts, including steel posts, t-posts, sign posts, u-channel posts, guide posts, and grounding rods. -
Page 3: Operation Description
OPERATION DESCRIPTION: • The operator must wear slip-resistant safety shoes and protective clothing—including goggles and helmet. For long-time operation, operator must wear earplugs. • While operating the post driver, maintain balance of body—the user should stand in front of air filter to operate the machine. •... -
Page 4: Preparation For Use
Fuel • Use qualified 86 Octane – unleaded gasoline or higher gasoline (For model MS-PD1002, use a 25 to 1 Fuel Mixture) • Add fuel in a well-ventilated place. • Do not add too much oil. The oil should not exceed the neck of fuel tank filling port. -
Page 5: Operation
STARTING: Choke (cold engine) • Before starting the new post driver, press the transparent and semi-circle fuel bubble repeatedly until carburetor is filled with fuel see (figure 2). (If the engine is cool, close the air door —open air door after starting) Starter Figure 2. -
Page 6: Technical Maintenance
TURNING OFF POST DRIVER: • Release throttle handle and maintain idle running of the engine for 3-5 minutes. • Pull stop switch to the position of off/ flame-out. See the position of stop switch in ‘Stop’ (figure 3). Stop Switch Figure 3. -
Page 7: Spark Plug
TECHNICAL MAINTENANCE: Carburetor • Fuel tank and carburetor generally have residual oil. After some time, the residual oil will become greasy oil which block up the oil line, prevent- ing the engine from starting. Therefore, when the post driver is not used for more than one week—... - Page 8 TECHNICAL MAINTENANCE: The Cylinder Heat Sink • Regularly remove dust to ensure the cylinder cooling. The gasoline post driver is air-cooling type. If dust accumulates on the cylinder heat sink, the cooling effect will be influenced directly, which will lead to failure of the cylinder. Filling of Impact Cylinder Lubrication •...
-
Page 9: Troubleshooting
TROUBLESHOOTING: Problem Analysis Action Difficulties in starting engine Whether Spark Plug is damp • Wipe dry Spark Plug ↓ in cooling state. Whether the spark plug • Replace Spark Plug produces electric spark ↓ Too much fuel absorbed • Reduce the fuel supply Difficulties in restarting after Whether fuel is used up or •... -
Page 10: Maintenance Schedule
MAINTENANCE SCHEDULE: The following data are general data for the product. Under the worse working conditions such as thick dust or long work hours of the post driver, the maintenance cycle should be shortened accordingly. Outlook check (state, The whole machine tightness of screws) Clean Control handle/stop button... -
Page 11: Exploded View Parts List
EXPLODED VIEW / PARTS LIST:... - Page 12 EXPLODED VIEW / PARTS LIST: Part Description Quantity MS-PD099 Tent Stake Metal Head MS-PDTSK Tent Stake Metal Head Kit Includes: MS-PD099, MS-PD100, MS-PD101, MS-PD102, MS-PD103 MS-PDFPK Fence Post Metal Head Kit Includes: MS-PD101, MS-PD102, MS-PD103, MS106 MS-PD100 Hammer Block Small MS-PD101 Hammer block Large MS-PD102...
- Page 13 EXPLODED VIEW / PARTS LIST: Part Description Quantity MS-PD118 O ring 70x67x1.5 MS-PD119 M6X30 hexagon socket cap screws, washer combination MS-PD120 Connecting rod MS-PD121 Impact Piston MS-PD122 Lip ring MS-PD123 Impact Piston Pin 12x44 MS-PD124 M5X16 hexagon socket cap screw and spring combination MS-PD125 Cover for gear box...
- Page 14 EXPLODED VIEW / PARTS LIST: Part Description Quantity MS-PD140 Big gear MS-PD141 Bearing 6202 MS-PD142 Center cover MS-PD143 Clutch drum MS-PD144 Circlip 35 MS-PD145 Framework oil seal 25X19-3 MS-PD146 M8X12 Sunk screw MS-PD147 Gland cover MS-PD148 Gear shaft MS-PD149 M5X12 Sunk screw MS-PD150 Gear box MS-PD151...
