Summary of Contents for Inventure Automotive Trailer ID

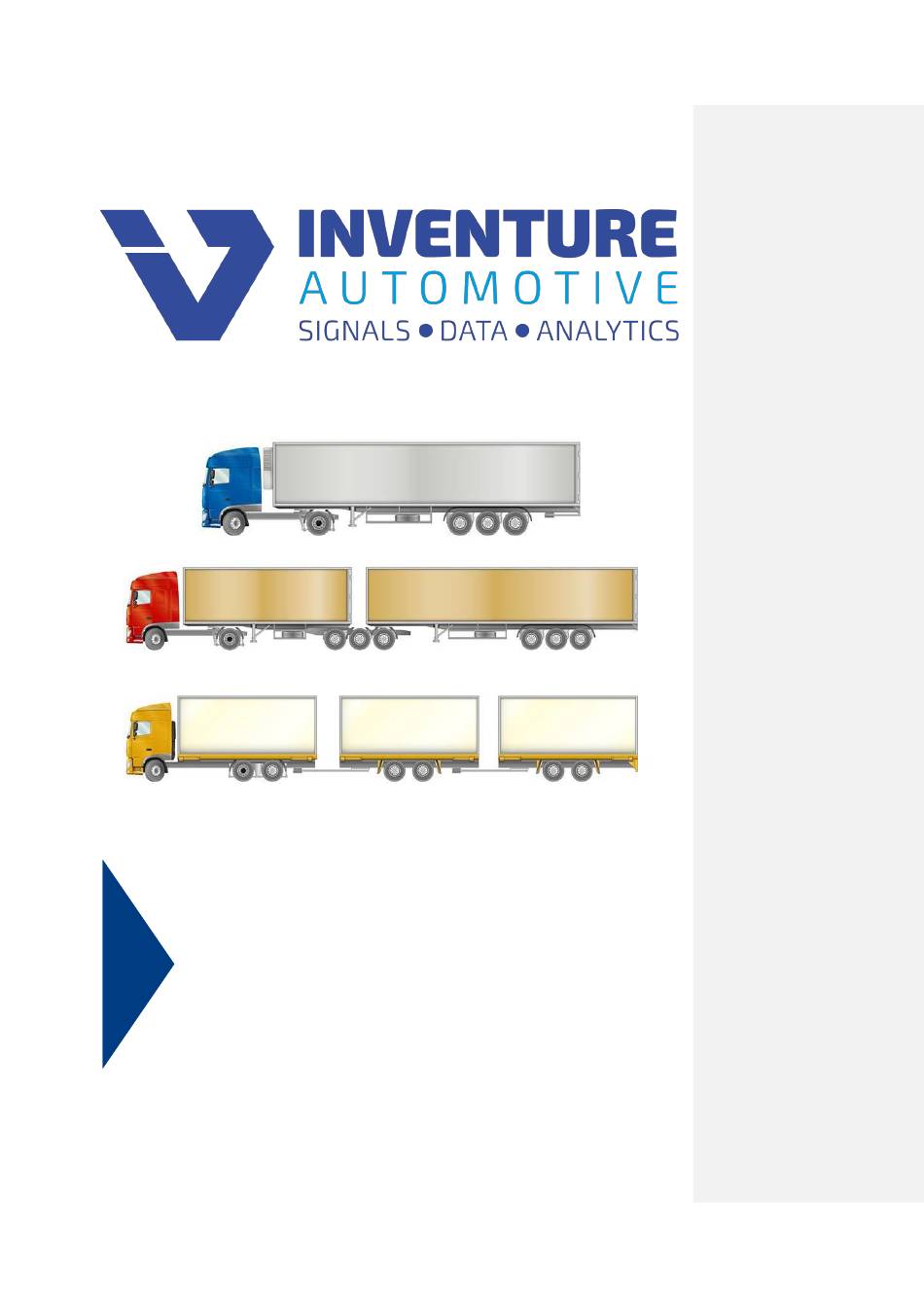

- Page 1 Inventure Trailer ID User’s manual...
- Page 2 All rights reserved. Copyright Notice © Copyright 2020, Inventure, Inc. Revision D01-018-22-04-21EN Contact INVENTURE Automotive Electronics R&D, Plc. 11 Tarcali Street H-1113 Budapest HUNGARY Phone: +36 1 381-0970 E-mail: support@inventure-automotive.com URL: www.inventure-automotive.com © Inventure Automotive Electronics R&D, Plc Page 2...
-
Page 3: Table Of Contents
Inventure Trailer ID™ User’s manual Table of contents INTRODUCTION ......................... 4 INVENTURE TRAILER ID SYSTEM .................. 4 ...................... 4 YSTEM VERVIEW ......................5 AIN FEATURES ........................5 SE CASES SAFETY NOTICES ......................6 CONNECTION OVERVIEW ....................7 ...................... 7 ECEIVER MODULE ....................... -
Page 4: Introduction
Installation is easy and basically no maintenance is needed since no batteries are installed, Trailer ID runs on the electricity of the trailer’s brake lamp. When the trailer is coupled to the tractor and the brake lamp is ignited, the Sender unit transfers the identification number to the Receiver module as seen on the illustration above. -
Page 5: Main Features
Sending real-time alerts on wrong attachments thus avoiding mistaken trips Sending periodic notifications about upcoming service intervals thus saving you time and money Mitigating human error by automatizing the identification procedure Tracking trailer units through the AVL © Inventure Automotive Electronics R&D, Plc Page 5... -
Page 6: Safety Notices
Vehicle ignition must be off at the start of installation. Misuse and/or physical damage on device may lead to loss of warranty. Fix Inventure Trailer ID device properly to avoid hitting to vehicle elements, or rattling! Device should be installed away from direct heat and moisture. -
Page 7: Connection Overview
Inventure Trailer ID™ User’s manual 4 Connection overview Inventure Trailer ID interface consists of two separate units a Receiver and an Sender unit. The connections of each unit are given below. 4.1 Receiver module Figure 2 – Receiver module connectors... -
Page 8: Sender Unit
(support@inventure-automotive.com 5.2 Trailer ID Receiver module The Trailer ID Receiver module goes inside the cabin of the tractor unit ideally somewhere near to your AVL device (that can also be installed outside of the cabin in case of radio interference). The device needs a connection to the massive ground (31) and ignition (15) as power supply. -
Page 9: Operating States
Inventure Trailer ID™ User’s manual 6 Operating states The Inventure Trailer ID has a status LED on its PCB back of the enclosure, which indicates the current operational mode. LED Statuses: Status Status LED Normal state Green Standby state Flickering green... -
Page 10: System Characteristics
Humidity Table 4. Operation and storage characteristics Other characteristics: Protected against incorrect polarity Protected against transient overvoltage ESD protection up to at least 8 kV (HBM) on any port © Inventure Automotive Electronics R&D, Plc Page 10... -
Page 11: Warranty
User’s manual 8 Warranty There is a one-year warranty on the Inventure Trailer ID device from the date of the original purchase. The warranty covers any defect in materials or workmanship. The warranty is valid only if the device was operated under normal circumstances in regular use. The warranty does not include damage from misuse or neglect. - Page 12 http://www.inventure-automotive.com...
