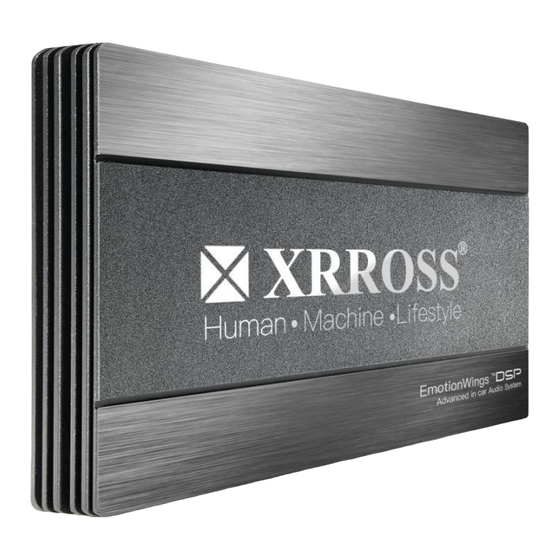

Summary of Contents for Xrross EmotionWings DSP XP-026DSP

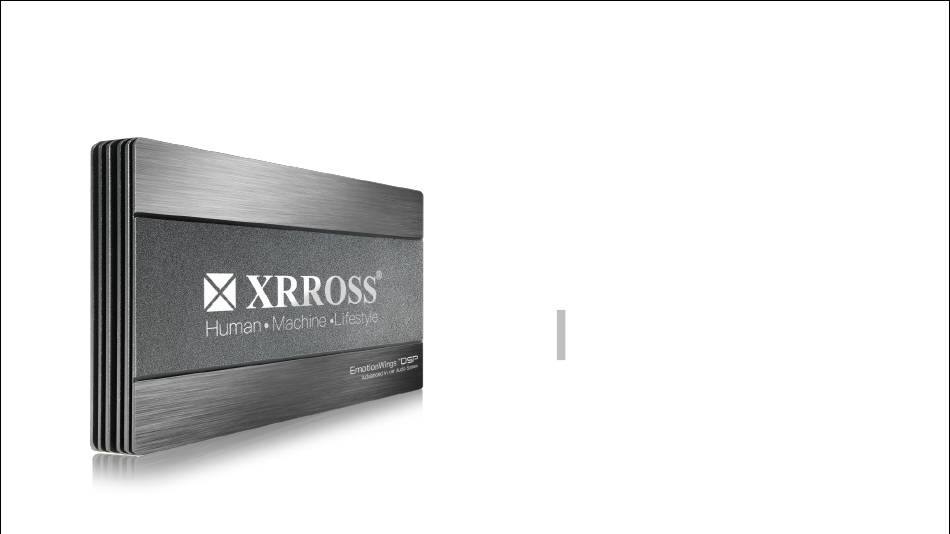

- Page 1 EmotionWings Advanced in car Audio System User's Manual XP-026DSP 8 CHANNELS DSP.6x50W.CLASS-D. All copyrights reserved@Xrross.Human.Machine...
- Page 2 User's Manual MODEL:XP-026DSP Content Table n Quick Start n Wiring n Bluetooth Connection n APP All copyrights reserved@Xrross.Human.Machine...
- Page 3 User's Manual-Quick Start MODEL:XP-026DSP nQuick Start Open the APP, Press Wire the DSP Correctly “Connect” Download/Install the APP Star Enjoying Xrross EmotionWings DSP Connect your Phone Bluetooth to “CAR AUDIO APP” All copyrights reserved@Xrross.Human.Machine...
- Page 4 Ø [IN]:Hi-Level Signal-IN x2 Ø [O]:Hi-Level Signal-OUT x2 [POWER/HI-LEVEL AUDIO SOCKET] Ø Hi-Level IN x4 Channels Ø Hi-Level out x4 Channels [LOW-LEVEL AUDIO OUTPUT ] [OPTICAL FIBER IN ] Ø ACC/VCC/REMOTE/GND Ø FL/RL/FR/RR/CL/CR x6 Ø SUB-L/SUB-R x2 All copyrights reserved@Xrross.Human.Machine...
- Page 5 User's Manual-Wiring MODEL:XP-026DSP Low-Level Hi-Level Low-Level out put Hi Level Out put (To Amplifier) (To Speakers) All copyrights reserved@Xrross.Human.Machine...
- Page 6 User's Manual-Wiring MODEL:XP-026DSP [TO DSP] [FROM CAR AUDIO HI-LEVEL SIGNAL] [TO CAR SPEAKERS] [TO CAR AUDIO POWER ACC/VCC/GND] [FROM CAR POWER ACC/VCC/GND] All copyrights reserved@Xrross.Human.Machine...
- Page 7 User's Manual-Wiring MODEL:XP-026DSP ISO male Plug ( Connect to Car Radio) DSP Plug ( Connect to DSP) ISO female Plug ( Connect to Car Speakers and Power) All copyrights reserved@Xrross.Human.Machine...
- Page 8 Ø Press” Connect” to connect the DSP to your phone [Connect to Bluetooth 4.0] Ø Turn on your phone Bluetooth Ø Setup>Bluetooth>Conenct to “CAR AUDIO” Ø Play your Phone Music, the sound will streaming to [Name:CAR AUDIO] All copyrights reserved@Xrross.Human.Machine...
- Page 9 User's Manual-APP MODEL:XP-026DSP 【Apple iOS】 【Android】 All copyrights reserved@Xrross.Human.Machine...
- Page 10 User's Manual-APP MODEL:XP-026DSP [Bluetooth 4.0 Connect ] [File Manage ] [Main Volume ] [Source ] [DSP Functions ] [Preset Mode ] All copyrights reserved@Xrross.Human.Machine...
- Page 11 User's Manual-APP MODEL:XP-026DSP https://www.xrross.com All copyrights reserved@Xrross.Human.Machine...
