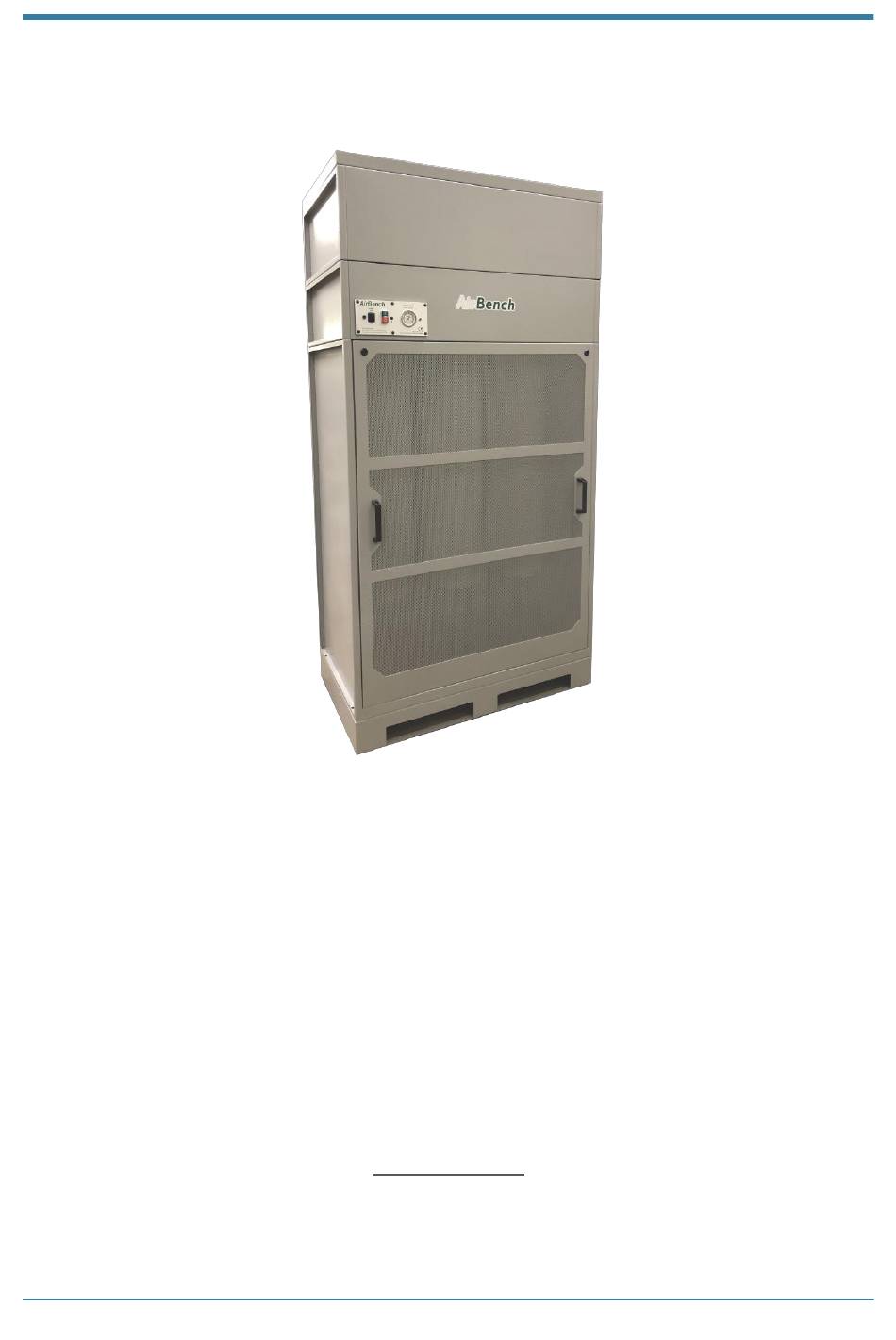

- Page 1 AIRBENCH LTD Vertex VP Operation and Maintenance This Edition: 3 December 2019 AirBench Ltd, 6b Commerce Way, Colchester CO2 8HR www.airbench.com +44 (0) 1206 791191 © Copyright AirBench Ltd 2019 Page 1 of 18...
-
Page 2: Table Of Contents
GENERAL USE Maintenance FILTER CARE SPARES OTHER ROUTINE MAINTENANCE Accessories FILTER PRESSURE GAUGES HOURS RUN METER WHEELS COMPRESSED AIR INTERLINK Thorough Examination and Testing Technical ARRANGEMENT TECHNICAL DATA Declaration of Conformity © Copyright AirBench Ltd 2019 Page 2 of 18... -
Page 3: Cautions
They must be maintained / cleaned / replaced as described within. Do not mix incompatible materials e.g. steel and aluminium. It is the users’ responsibility to comply with this legal requirement. © Copyright AirBench Ltd 2019 Page 3 of 18... - Page 4 This unit is not suitable for explosive dusts. Do not use for any unapproved materials. Before any maintenance procedure, turn off and disconnect compressed air supply. Ensure tank is fully drained. © Copyright AirBench Ltd 2019 Page 4 of 18...
-
Page 5: Introduction
This document provides general maintenance and operation instructions for the VertEx range. It should be read in conjunction with the Commissioning Certificate supplied with the unit. If you have any concerns or doubts about maintenance or operation of this unit, contact the manufacturer. © Copyright AirBench Ltd 2019 Page 5 of 18... -
Page 6: Installation
VertEx can be supplied configured for multi-unit installations. In this instance a single electrical panel with plugged connections will be provided. EARTH BONDING If in doubt consult a qualified electrician. FUSES Switched units: A fuse is provided on the switch front plate. © Copyright AirBench Ltd 2019 Page 6 of 18... -
Page 7: Compressed Air
Compressed Air VertEx VP requires a compressed air supply at 5 bar. Supplied air must be clean, and oil/moisture free. Contaminated air will result in poor cleaning of filters, filter degradation, or failure of components. We recommend installation of a shut-off valve, bleed-type regulator with gauge, filter, and condensate filter prior to the air inlet to the AirBench. -
Page 8: Commissioning
We recommend keeping the commissioning certificate, Quick Start guide, and logbook with the machine at all times for operator access. If in doubt please contact the manufacturer quoting the machine serial number. © Copyright AirBench Ltd 2019 Page 8 of 18... -
Page 9: Operation
Record any maintenance you have undertaken, or any that is required, in the logbook. To avoid fan overload, do not block more than 50% of the face or the air outlet. © Copyright AirBench Ltd 2019 Page 9 of 18... - Page 10 © Copyright AirBench Ltd 2019 Page 10 of 18...
-
Page 11: Maintenance
The final stage HEPA filter (if fitted) is located in the filter unit to the top of the machine. This can be accessed by removing the front door panel; then releasing the clamps holding the filter into position. © Copyright AirBench Ltd 2019 Page 11 of 18... -
Page 12: Spares
Spares See the specific list for your machine shown on the commissioning certificate. When ordering, please contact the manufacturer quoting the serial number of this machine. © Copyright AirBench Ltd 2019 Page 12 of 18... -
Page 13: Other Routine Maintenance
At least monthly, or as routine, check the surface condition. Clear any blocked holes. FAN CHAMBER At least every 6 months, check the fan chamber. Remove any debris and clean. At least annually, check and tighten fan fixings, impeller fixings, and electrical connections. © Copyright AirBench Ltd 2019 Page 13 of 18... -
Page 14: Accessories
Use airline or press green button again – timer is reset for a further 5 minutes. Press red button – fan stops, airline stops. The timer can be re-set to a different interval; contact the manufacturer for details. © Copyright AirBench Ltd 2019 Page 14 of 18... -
Page 15: Thorough Examination And Testing
Recommended face velocities are as follows: Fume control: Minimum 0.5m/s Light dust control: Minimum 1.0 m/s Heavy dust control: 1.2 – 1.5m/s Completion of Thorough Examination and Testing should be recorded within the system logbook. © Copyright AirBench Ltd 2019 Page 15 of 18... -
Page 16: Technical
TECHNICAL Arrangement © Copyright AirBench Ltd 2019 Page 16 of 18... -
Page 17: Technical Data
(mm) (mm) (mm) (mm) (kg) (kw) VP121218 1270 2465 1400 Data shown is for standard models excluding optional HEPA outlet filter. Check the Commissioning Certificate for details specific to your unit. © Copyright AirBench Ltd 2019 Page 17 of 18... -
Page 18: Declaration Of Conformity
- EN-60204–1:2018 (Safety of machinery, electrical equipment of machines, general requirements). - EN-60335-2-80 (Safety requirements for electric fans and regulators). We; AIRBENCH Limited, declare that “VertExes” when supplied as self contained equipment comply with the directives detailed above and therefore comply with requirements of the Low Voltage Directive.
