Summary of Contents for Saniflo SANI12661

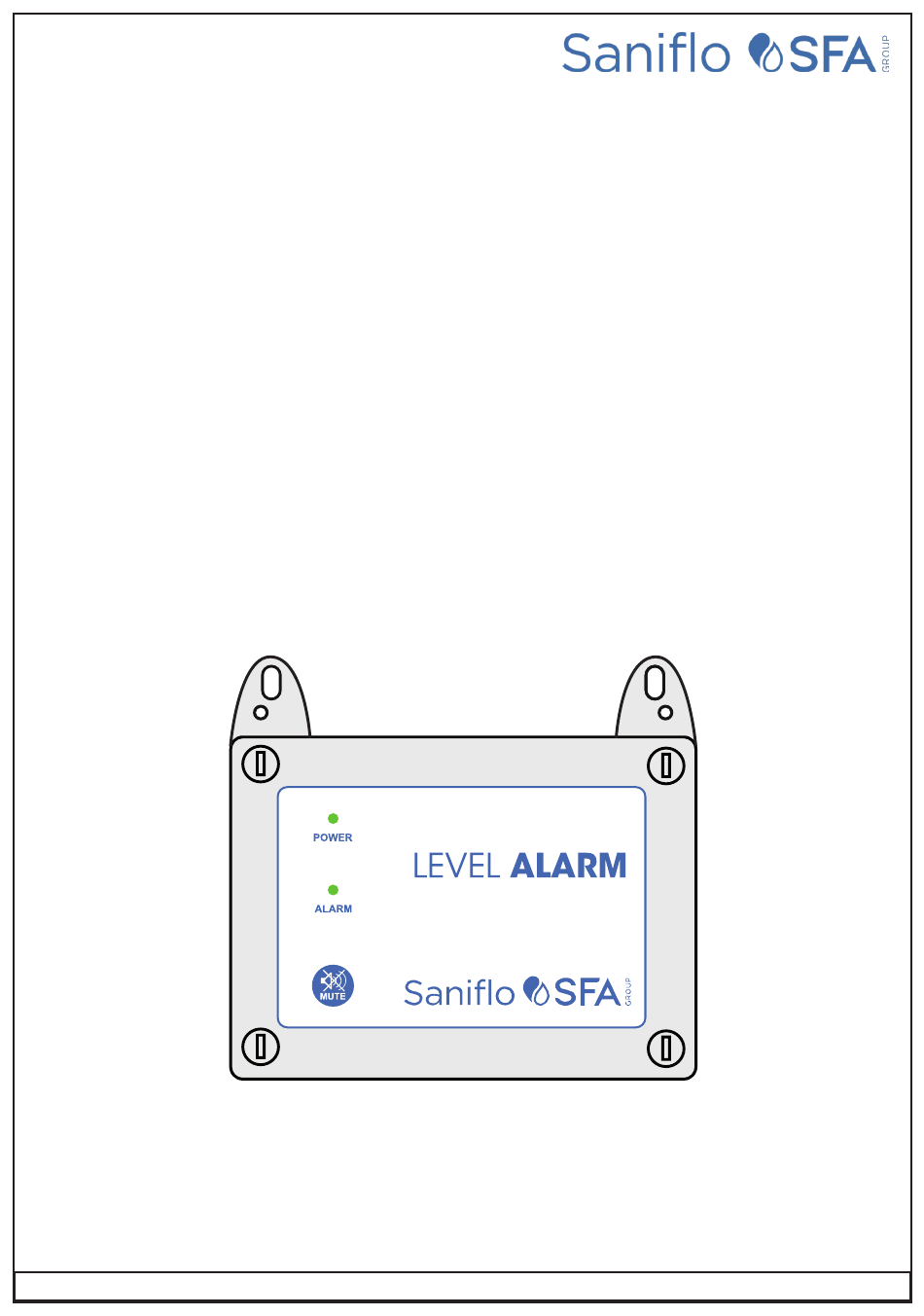

- Page 1 Unit 10, 25 Gibbes Street Chatswood, NSW 2067 Tel: 1300 554 779 (AU) O P E R A T I O N M A N U A L Tel: 0800 107 264 (NZ) MOD EL: SANI12661 DOC: SANI12661 VER 1.0...
-
Page 2: Table Of Contents
Your Under-sink/Sullage Chamber Alarm reflects the superior quality and attention to detail in design, engineering and manufacturing that has distinguished SANIFLO Products for decades. The controller incorporates the very latest in micro-processor technology, ensuring you, the owner/operator, of many years of functional, reliable and ‘user friendly’... -
Page 3: Functional Over View
UNDERSINK / SULLAGE CHAMBER ALARM SANIALARM INTERLOCK - WITH VALVE & DISHWASHER INTERLOCK FUNCTI ONA L OVERVIEW OPERA TIO N NOTE: OUTLET SCHE MATIC MAINS WATER DRAIN MAINS WATER TO SEWER POWER SUPPLY TO DISWASHER... -
Page 4: Connection Details
UNDERSINK / SULLAGE CHAMBER ALARM SANIALARM INTERLOCK - WITH VALVE & DISHWASHER INTERLOCK C O NNEC TIO N D E TAI LS 1. Ensure power to the unit is disconnected before carrying out installation. 2. Mount Panel in a dry area and in a vertical position so that cable connections are on the underside of the panel. 3. -
Page 5: Magnetic Float Switch Fitting Guide
SANIALARM INTERLOCK MAGNETIC FLOAT SWITCH FITTING GUIDE USE MAGNETIC FLOAT SWITCH SUPPLIED WITH SANIALARM INTERLOCK ONLY SANICOM 1 Drill a 22mm hole and insert the probe here, make sure the hole is 60mm down from the top of the grey cabinet and 60mm from the side. - Page 6 SANIALARM INTERLOCK MAGNETIC FLOAT SWITCH FITTING GUIDE USE MAGNETIC FLOAT SWITCH SUPPLIED WITH SANIALARM INTERLOCK ONLY SANIPACK PRO UP Drill a 22mm hole 185mm from the LH side of case by 65mm down from the top of the lid to insert the magnetic finger switch SANIACCESS 3 Please ensure that the magnetic float switch is positioned as shown above, with the arm...
- Page 7 SANIALARM INTERLOCK MAGNETIC FLOAT SWITCH FITTING GUIDE USE MAGNETIC FLOAT SWITCH SUPPLIED WITH SANIALARM INTERLOCK ONLY SANITOP 70mm Drill a 22mm hole and insert the probe here, make sure the hole is 180mm up from the bottom of the case and 70mm from the outside edge to centre 180mm Please ensure that the magnetic float switch is...
- Page 8 SANIALARM INTERLOCK MAGNETIC FLOAT SWITCH FITTING GUIDE USE MAGNETIC FLOAT SWITCH SUPPLIED WITH SANIALARM INTERLOCK ONLY SANIACCESS 2 Drill a 22mm hole and insert the probe here, make sure the hole is 170mm 170mm up from the bottom and 120mm from the side. Please ensure that the magnetic float switch is positioned as shown above, with the arm swinging down inside the pump case.
- Page 9 SANIALARM INTERLOCK MAGNETIC FLOAT SWITCH FITTING GUIDE USE MAGNETIC FLOAT SWITCH SUPPLIED WITH SANIALARM INTERLOCK ONLY SANIBEST PRO 170mm 25mm Drill a 22mm hole and insert the probe here, make sure the hole is 170mm up from the bottom of the case and 25mm from the inside edge of the spigot connector opening.
-
Page 10: Wiring Diagram
CIRCUIT DIAGRAM 240 Vac Supply Plug 240N GPO Flush Mount GPO Flush Mount GPO1 GPO1 GPO1 10Amp 10Amp A N E E A N A N E E A N C NC C NC C NO C NO OUTPUT OUTPUT PUMP PUMP SUPPLY... - Page 11 • This warranty is not transferable • This warranty shall not apply when the product is sold or installed outside Australia or New Zealand NOTE: Warranty only applies when the Sanialarm Interlock is used with Saniflo SFA products...
- Page 12 NOTES...
