Hugo Bed [with Extensions]
Assembly Instructions
Please retain these instructions for future reference
Thank you for purchasing a Silverlynx product
As one of Australia's leading bedroom furniture manufacturers, we have long established
partnerships with Australia's most successful retailers.
Customers who buy our products recognise our commitment to quality and customer
satisfaction.
Silverlynx is a value's based business. Our commitment to quality, evolving design leadership,
customer service and exceeding customer expectations - is unsurpassed in the industry.
Enjoy your Silverlynx bed.
Please read through your assembly instructions carefully to ensure that you can assemble your
new purchase without stress.
Hugo Bed [with Extensions]
NOTE – it is recommended that two people assemble this bed
WE ADVISE YOU DO NOT USE POWERED DRILLS TO ASSEMBLE ANY BOLTS ON THIS BED
To assemble your bed you have been supplied with
Hardware Pack
containing - 12x (M4) 10mm button head bolts; 2x 38mm screws; 1x allen
key; 4x 50mm bolts; 2x 90mm bolts with nuts; 8x washers

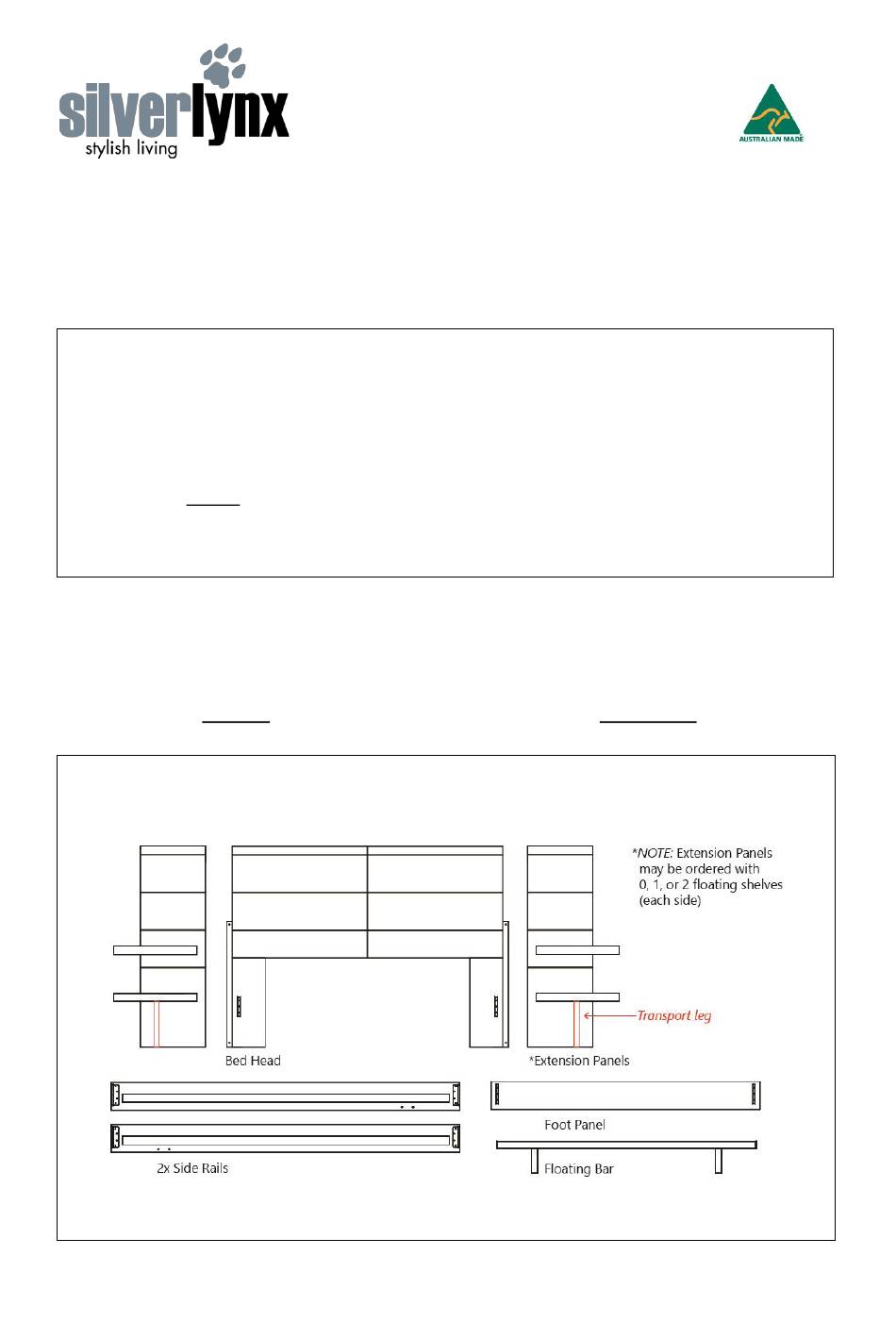

Bed Frame Parts
Slat System
See the attached document "Amendment to instructions for all Silverlynx beds".
Other equipment required -
Bomi Furniture P/L trading as Silver Lynx ABN 99 006 489 541 11-17 Sages Road Glenroy Victoria 3046 Australia
T:+61 3 9359 4000 F:+61 3 9359 4322 E:sales@silverlynx.com.au W:www.silverlynx.com.au
wrench (not provided)
