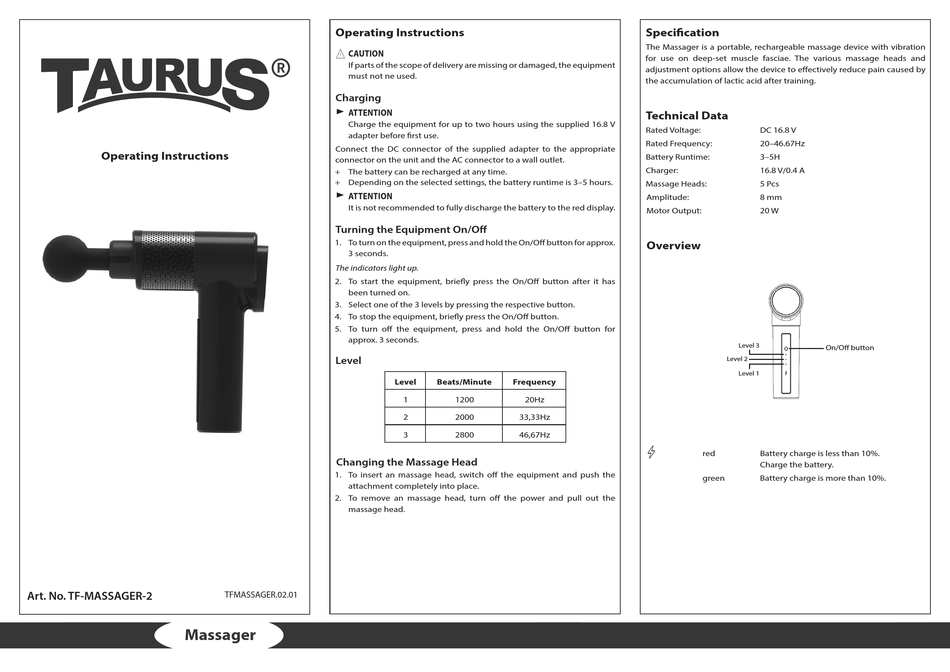

Taurus TF-MASSAGER-2 Operating Instructions

Operating Instructions
Art. No. TF-MASSAGER-2
Massager
Operating Instructions
⚠ CAUTION
If parts of the scope of delivery are missing or damaged, the equipment
must not ne used.

Charging

࣑ ATTENTION
Charge the equipment for up to two hours using the supplied 16.8 V
adapter before first use.
Connect the DC connector of the supplied adapter to the appropriate
connector on the unit and the AC connector to a wall outlet.
+ The battery can be recharged at any time.
+ Depending on the selected settings, the battery runtime is 3–5 hours.
࣑ ATTENTION
It is not recommended to fully discharge the battery to the red display.

Turning the Equipment On/Off

1. To turn on the equipment, press and hold the On/Off button for approx.
3 seconds.
The indicators light up.
2. To start the equipment, briefly press the On/Off button after it has
been turned on.
3. Select one of the 3 levels by pressing the respective button.
4. To stop the equipment, briefly press the On/Off button.
5. To turn off the equipment, press and hold the On/Off button for
approx. 3 seconds.
Level
Level
1
2
3

Changing the Massage Head

1. To insert an massage head, switch off the equipment and push the
attachment completely into place.
2. To remove an massage head, turn off the power and pull out the
massage head.
TFMASSAGER.02.01
Beats/Minute Frequency
1200 20Hz
2000 33,33Hz
2800 46,67Hz

Specification

The Massager is a portable, rechargeable massage device with vibration
for use on deep-set muscle fasciae. The various massage heads and
adjustment options allow the device to effectively reduce pain caused by
the accumulation of lactic acid after training.

Technical Data

Rated Voltage: DC 16.8 V
Rated Frequency: 20–46.67Hz
Battery Runtime: 3–5H
Charger: 16.8 V/0.4 A
Massage Heads: 5 Pcs
Amplitude: 8 mm
Motor Output: 20 W

Overview

Level 3
Level 2
Level 1
⚡
red Battery charge is less than 10%.
Charge the battery.
green Battery charge is more than 10%.
On/Off button
