Stansport 206 Owner's Manual And Operating Instructions

PLE SE RE D C REFULLY TO ENSURE YOUR S FETY:
FOR OUTDOOR USE ONLY
1) Read and follow all instructions.
2) When used in an enclosed area, allow for ample ventilation.
3) Do not expose the propane cylinder to excessive heat.
4) lways inspect the stove, propane cylinder and connectors for damage, debris or dirt before attaching the cylinder to the stove.
5) lways attach/detach the propane cylinder away from any open flame or pilot light and only after the stove has cooled.
6) lways inspect the burner holes for obstructions prior to operation. Do not operate if any blockage is found.
7) Do not use or operate if either the stove or propane cylinder is found to be damaged.
8) lways disconnect the propane cylinder when not in use and/or transporting. Store in an upright position and in a cool, well ventilated area.
9) Be sure to tightly secure all connections to the propane cylinder prior to usage.
10) bsolutely never operate the stove near any flammable liquids or vapors and keep all flammable or combustible materials beyond the clearance zone
as indicated on the back panel.
11) Discontinue operation and close valve if:
• mbient temperature drops below-10ºF.
• There is no fuel remaining in the propane cylinder.
• Lighting cannot be performed quickly and easily.
• Combustion becomes unstable or there are repeated flame-outs.
12) bsolutely do not use as a space heater, or in a tent.
13) Keep out of the reach of children.
CONNECTING THE FUEL CYLINDER:
1) Use only 16.4 oz propane cylinders as approved by the United States Department of Transportation.
2) Make sure the valve knob is turned off (twist in a clockwise direction).
3) Make sure the rubber seal is clean, undamaged, and in its proper centered position. The rubber seal is part of the valve adapter assembly and
the cylinder connection is to be made to the underside of the valve adapter assembly.
4) Screw the propane gas cylinder onto the stove valve adapter. Hand tighten only.
5) pply soapy water to the connection to check for leakage. (Leaking gas will form bubbles).
6) fter determining there is no leakage, draw a flame towards the burner's center and slowly open valve (twist counter-clockwise). Each burner must
be individually lit. Note that opening a burner valve and not lighting the burner, while the other burner is firing, could result in an explosion and/or
fire.
W RNING
• FOR OUTDOOR USE ONLY.
• Supply plenty of fresh air when using the campstove. Do not obstruct the flow of combustion air or ventilation air.
• Do not use as a space heater.
• Stove produce heat. Keep stove away from burnable materials. Do not place the stove any closer than 24" to combustibles.
• Use a flat, level support surface where the stove is safe from accidental tipping.
• Use only 14.7 or 16.4 oz. propane cylinders marked per USDOT-39 or TC C N/CS B339 standards.
• Use only with propane fuel.
• Use only the 16 psi regulator included with your stove. Do not attempt to alter.
C UTION
PROP NE FUEL IS HIGHLY FL MM BLE ND UNDER PRESSURE.
Do not store in temperatures over 120˚F.
Never use a flame to check for leaks. Use soapy water.
Keep out of the reach of children at all times.
Stansport™ warrants that for the period of one year this product, will be free from defects in material and workmanship. Stansport™, at its option, will repair or replace this product
or any component of the product found to be defective during the warranty period. Replacement will be made with a new or remanufactured product of component. If the product is no
longer available, replacement will be made with a similar product of equal or greater value. This is your exclusive warranty.
This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain
warranty performance. Stansport™ dealers, service centers, or retail stores selling Stansport™ products do not have the right to alter, modify or in any way change the terms and condi-
tions of this warranty.
This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or misuse of the product, use contrary to the operating instructions,
disassembly, repair or alteration by anyone other than Stansport™ or an authorized service center. Further, the warranty does not cover acts of God, such as fire, flood, hurricanes and
tornados.
Stansport™ shall not be liable for any incident or consequential damages caused by the breach of any express or implied warranty or conditions. Except to the extent prohibited by
applicable law, any implied warranty of merchantability or fitness for a particular purpose is limited in duration to the duration of the above warranty or conditions. Some states, provinces
or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusion
may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or province to province.
How to obtain warranty service: do not return this product to the store. Call 1-800-421-6131 toll free or write us at Stansport™, 2801 E. 12th Street, Los Angeles, CA 90023. Be pre-
pared to give your name, address, model number, description of the problem, phone number, and proof of retail purchase (sales slip).
STANSPORT, INC. LOS ANGELES, CA 90023 - For questions call customer service: Toll Free (800) 421-6131
Limited Warranty

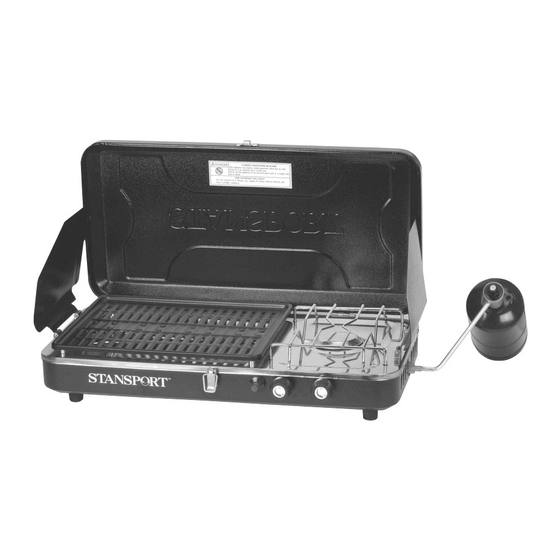

Owner's Manual and Operating Instructions
for High Output Propane Stove & Grill w/Piezo Igniter
Model 206
Read all Warnings and Operating Instructions
before use and retain for future reference
FOR YOUR S FETY
IF YOU SMELL G S:
1. Do Not attempt to light appliance.
2. Extinguish any open flame.
3. Disconnect from fuel supply.
C RBON MONOXIDE H Z RD
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space
such as a camper, tent, car or home.
M DE IN CHIN
Your disposable propane cylinder
will function most efficiently if the
bottle is tilted at a 45˚ degree
angle upward toward the pressure
regulator. This will allow the most
efficient withdrawal of fuel from
the cylinder under most condi-
tions.
FOR YOUR S FETY
Do not store or use gasoline or
other liquids with flammable vapors
in the vicinity of this or any other
appliance.
