Summary of Contents for Dragon-RC Speedo DX-10 WP45

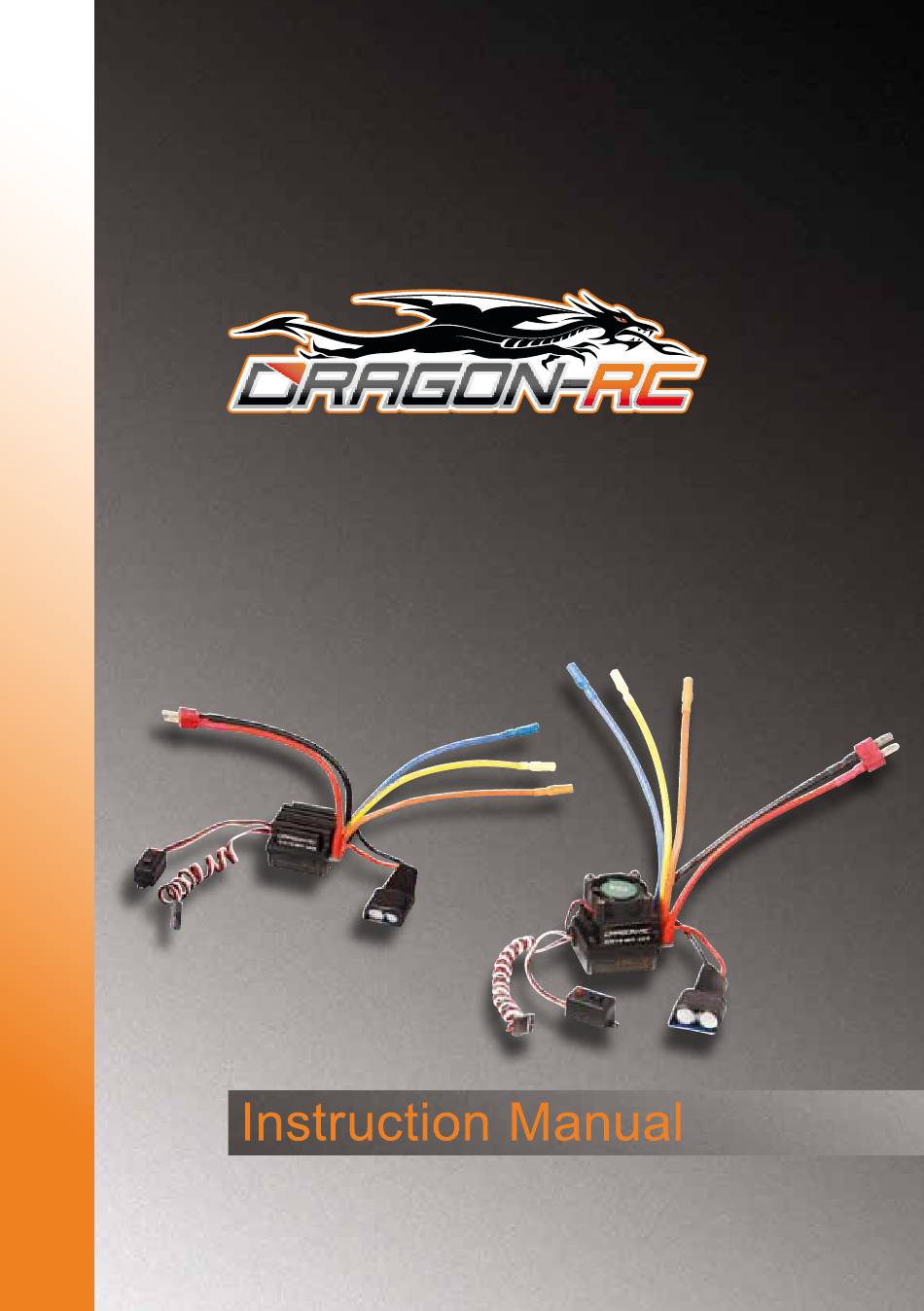

- Page 1 Speedo DX-10 WP45 Speedo DX-10 WP45-Fan...
- Page 2 In case the speedo is purchased seperate, than read the manual carefully and select the right setting to work with your choice of motor. Check the Dragon-rc website for an update on the manual or software as needed. www.dragon-rc.com...
- Page 3 Sensored Mode When using a Sensored Brushless motor, the Blue motor wire A, Yellow motor wire B and Orange motor wire C of the ESC must be connected with the Sensored motor wire A,B,C accordingly. It is necessary to connect the Sensor wire to the ‘Sensor’ socket on the ESC.
-
Page 4: Cutoff Voltage
Programmable items and default settings Settings below can only be changed by using the optional program card or pc link. Default settings are shown in the orange boxes programmable Programmable Value Items Cut-off Voltage 2.6V/cell 2.8V/cell 3.0V/cell 3.2V/cell 3.4V/cell No cut-off Running Mode Forward Forward with Forward/ w/o Reverse pause then Reverse... -
Page 5: Running Mode
Note: There is automatic protection within the DRAGON-RC ESC. Only after you have stopped and returned the trigger to neutral will reverse become available. If while traveling in reverse, pull the trigger to go forward. This is to help prevent serious damage to the drive train. - Page 6 4. Initial Acceleration Use this to limit the initial power that is sent to the motor when starting from a complete stop. Using the LOW option, the vehicle will launch very slowly and provide the longest run times. When using the HIGH choice, you will have wheel-spinning acceleration at the cost of run time.
-
Page 7: Motor Rotation
Using a higher value for this setting will provide a wider Deadband. 4% (Default) Warranty DRAGON-RC Model has no control over the use, installation, application or maintenance of these products, thus no liability shall be assumed nor accepted for any damages, losses of costs resulting from the use of this item. - Page 8 - #211008 Speedo DX-10 WP45 made in China - #211009 Speedo DX-10 WP45-Fan...
