Summary of Contents for Race Ramps Portable Pit Stop Ramp
- Page 1 Portable Pit Stop Instructions Thank you for choosing Race Ramps’ Portable Pit Stop Ramp Racer Model Shown...
- Page 2 Portable Pit Stop Instructions Warnings Please note: PPS and Portable Pit Stop are used interchangeably throughout this guide. • UPON RECEIPT, IMMEDIATELY confirm that ALL pieces are included with the PPS. Consult this guide for a list of all pieces. • CHECK THAT the ramps have not become DAMAGED during loading or shipping.

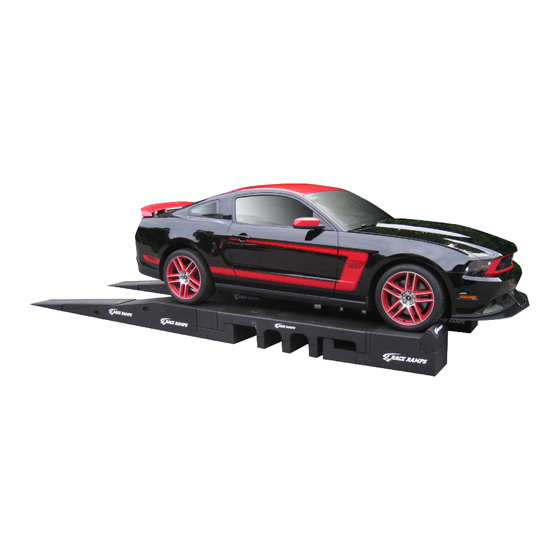

- Page 3 Tape measure fig. 1 - Standard and Racer Model The Portable Pit Stop ramp system is a lightweight, convenient way to get your vehicle up in the air. It can be used on most surfaces, including sand, dirt, asphalt, concrete etc. The Portable Pit Stop is adjustable for wheelbase lengths of 90-115”.

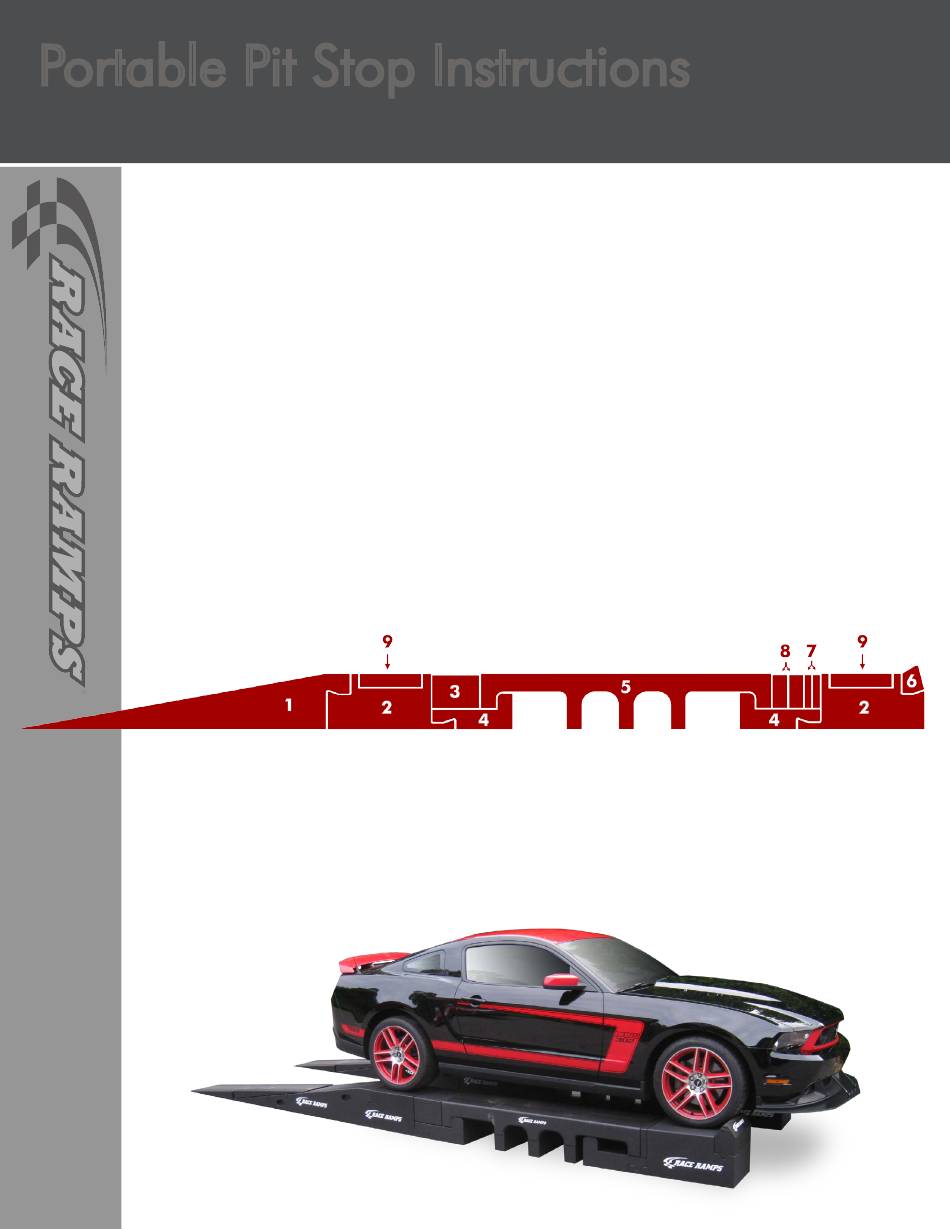

- Page 4 Portable Pit Stop Instructions Preparation and Assembly First, examine all the parts that came shipped with the PPS. Refer to the below diagram to make sure you have all the pieces. 2x Ramps 4x Wheel Platform Blocks 2x Large Wheelbase Spacer 4x Wheelbase adjustment block 2x Arched Bridges 2x Wheel Stops 4x Small Wheelbase Spacer 4x Medium Wheelbase Spacer 4x Scale Spacer (Racer model only) 10 2x Wheel Chocks (Not shown) fig. 5 - assembled pps Take a few minutes to clear your workspace of small debris or particles, such as pebbles or stones.
- Page 5 Portable Pit Stop Instructions Assembly Cont. Place #2 so that your front tire will be centered. If your vehicle has a wheelbase length longer than 90”, you will notice a gap will be created. Fill this gap in with the #7 center tire and #8 spacers, like shown. Use as many spacers as required for your wheelbase length; it’s ok to have up to 0.5” of space between each spacer. Now your PPS is fully assembled. Make sure that your car will not scrape as it goes up the #1 Ramp section. If your vehicle won’t clear the angle, we offer an optional extension. Please contact us if you need this extension. fig. 7 - center tire fig. 8 - check clearance A spotter is HIGHLY RECOMMENDED for driving up the PPS safely. Drive up the PPS at a slow, consistent speed. DO NOT accelerate or brake violently.
- Page 6 BRUTE INDUSTRIES, INC. 2003 23rd Ave. N, STE A Escanaba, MI 49829 (866) 464-2788 (906) 786-0585 8:30 - 5:00PM EST support@raceramps.com...
