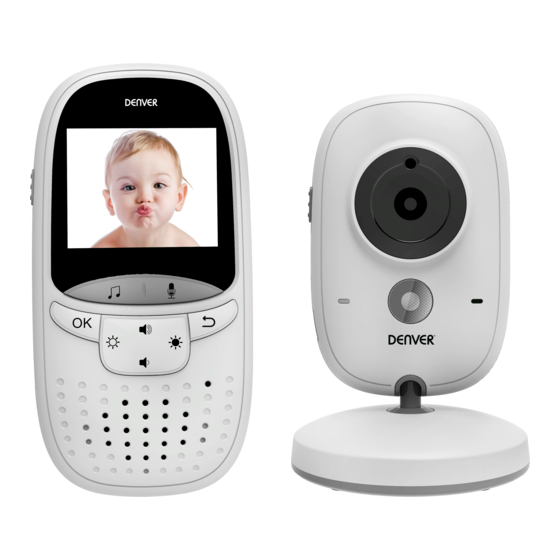

- Page 1 VB602 Video Baby Monitor User Manual...
-

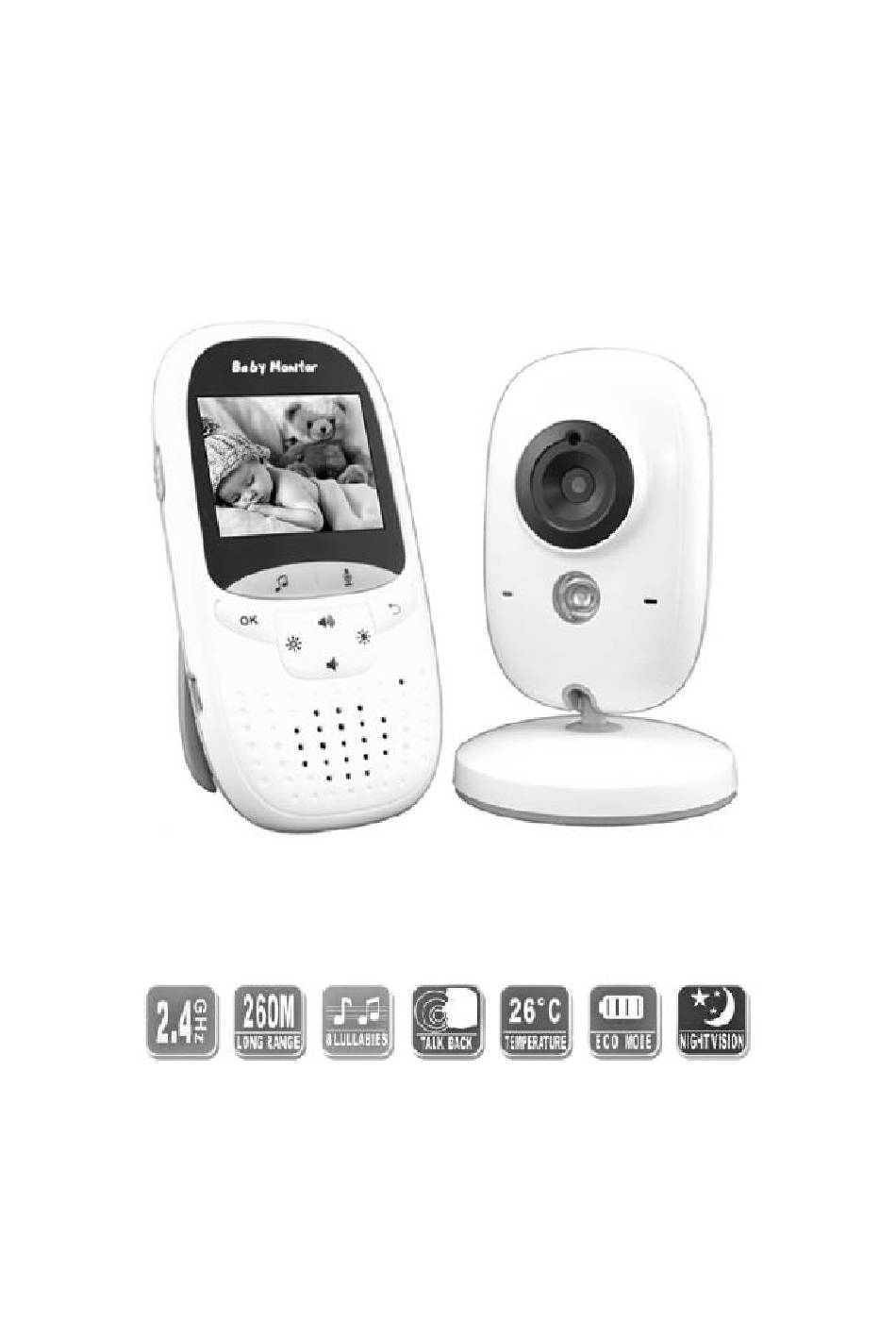

Page 2: Product Features
PRODUCT FEATURES Thank you for choosing this baby monitor. The sober design of our product easily integrates with all interiors and allows you to keep a watchful eye on your babies. Communication between transmitter and receiver is through radio waves at a max distance of 260 m (distance in open field). -
Page 3: Package Content
PACKAGE CONTENT Monitor X1 Camera X1 Power adapter X2 PRODUCT OVERVIEW Monitor LCD display LED for charging indicator. LED power indicator Key Power On/Off Key menu/OK Key Return - undo. Key volume – Key volume + Key brightness + 10. Key brightness – 11. -
Page 4: Connect Power
12. Key intercom 13. Microphone 14. Loudspeaker 15. Power connector Camera Light sensor Camera lens Infrared LEDs Power LED Microphone Loudspeaker Paring key Key power on/off Temperature sensor 10. Power connector CONNECT POWER Before installing the camera, test the device to make sure that the installing position is suitable for signal reception. - Page 5 Connect the monitor to power Using the supplied power adapter, connect the monitor to power supply. The display turns on for a few seconds to indicate battery charging level. It is recommended that you completely charge the battery before first use. Power on Push the power key up on the monitor and camera respectively to turn the monitor and camera on respectively.
-
Page 6: Main Screen
MAIN SCREEN Signal level Temperature measured in child’s room Playhead of a melody in progress Alarm activated Battery level indication Activated intercom function Date and time MAIN MENU To access the main menu, press the OK button on the monitor. This menu contains 6 function options: Camera Alarm... -
Page 7: Music Playing
Languages Information Press the navigation buttons ( ) to select an option. PARING WITH CAMERA The display and the camera are paired at the factory. If the monitor is disconnected with the camera, pair the monitor with the camera. Press the OK button to access the main menu. ) to select the “camera”... -
Page 8: Volume Control
VOLUME CONTROL When the camera is in operation, press the volume buttons on the monitor to adjust audio volume from the camera. ALARM This function allows you to set one or more alarm timers. Select the alarm timer that you wish to change, and select “Edit” by pressing the OK button. - Page 9 • To change the line, press “Up/Down” ( ), the press the OK button to select the line. • To change time, press “Up/Down” ( • Press “Left/Right” ( ) to switch to minutes. • To activate summer time, select the line with the “Left/Right” ( ) buttons, and press “Up/Down”...
-
Page 10: System Information
LANGUAGES Allow you to select a menu language. The languages include: English\French\Spanish\Portuguesa\Italian\Deutsch SYSTEM INFORMATION The system information icon contains data of the software installed in the product. CLEANING AND MAINTENANCE • Do not clean with abrasive or corrosive substances. • Use a slightly moistened soft cloth. - Page 11 This page has been left blank intentionally.
- Page 12 This page has been left blank intentionally...
- Page 13 VB602 Digital video baby monitor Made in PRC...
- Page 14 Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.denver-electronics.com and then click the search ICON on topline of website. Write model number: VB602. Now enter product page, and red directive is found under downloads/other downloads.
- Page 15 DENVER ELECTRONICS A/S Omega 5A, Soeften DK-8382 Hinnerup Denmark www.facebook.com/denverelectronics...
