SolarVenti SControl Quick Manual

Status
Collector
Fan
In general:
Only 12 volt voltage on the system.
Power supply: 12 V 2Amp.
S1 (solar collector temperature sensor)
should be mounted in order for the
SControl to work.
Complete safety instructions can be
found in the installation guide, which
you should also read carefully.
This quick guide only deals with the
simple instructions for mounting and
use of the SControl.
NOTE: Before touching the electronic
circuits inside the SControl, you must
briefly touch, for example, a water tap
or grounding device, in order to avoid
damaging certain components. You may
have little static electricity in your body,
which should be discharged first.
Dewpoint
0
37,5 C
50%

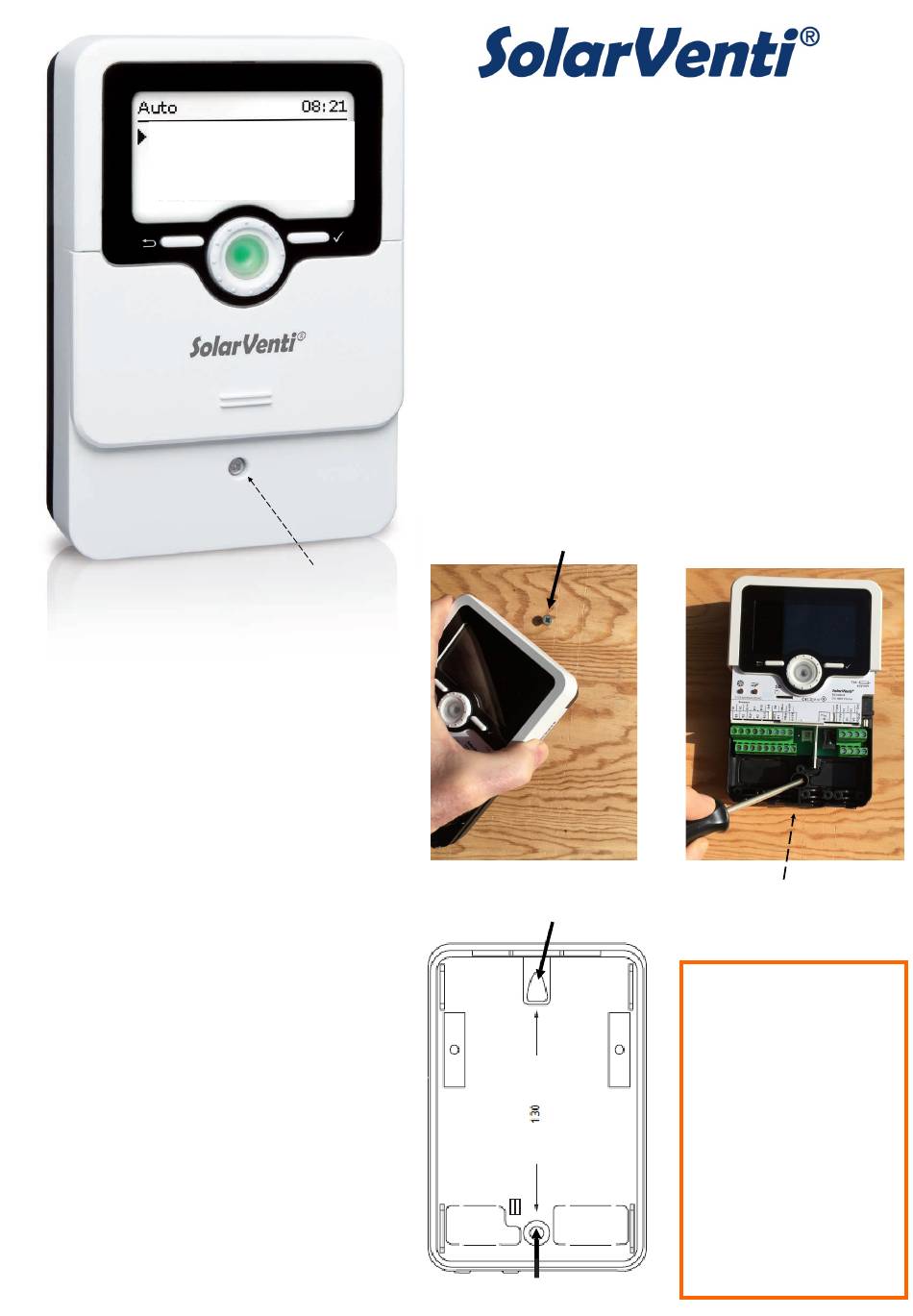

Loosen screw to
separate the SControl
SControl Quick guide Eng.
-
This describes very briefly how to mount and adjust the
SControl for systems that must function for dehumidification
System 4 for unheated basement
System functions:
1 or more exhaust fan (max 25 watt in all)
Forced ventilation at too high humidity (70% RH)
Dew point control to prevent condensation
Timer function active for interval ventilation (also at night)
Since all cellars are very different, there may be a need for
individual adjustment of the operating mode.
Screw on wall
Hang up on scerew
Screw
The SControl is fixed with one
more screw at the bottom.
The SControl must be placed in
the basement itself in order to
register the moisture
here. If this is not possible,
it can be extended with an ad-
ditional external combi-sensor.
Position:
About 160 cm from the ground
and 2 meters or more away
from the solar air inlet valve.
At the oppossite end of the
garage in relation to the gate
or outlet valve.
