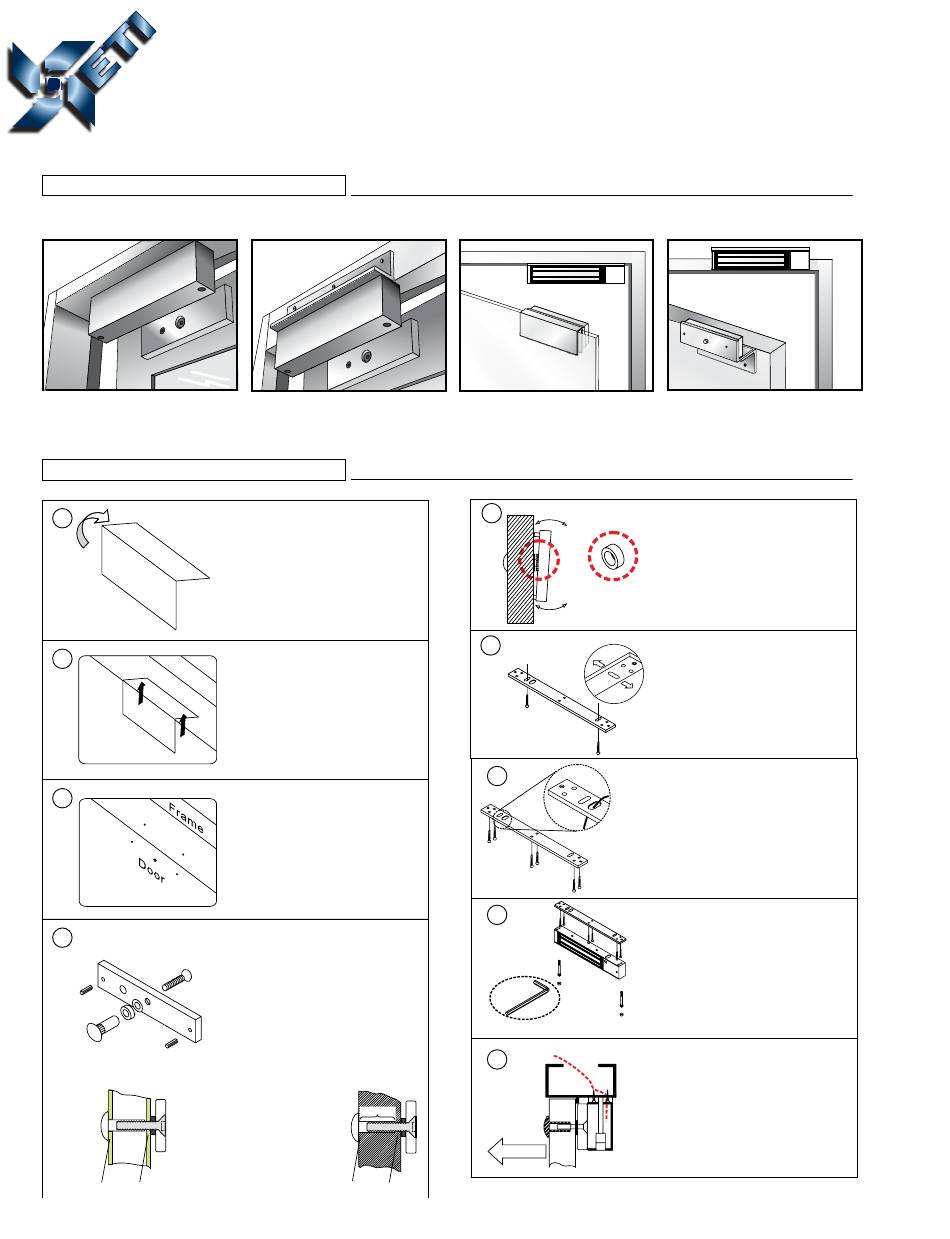

ETI ERM Series Installation Instruction

Optional Bracket
Bracket installation is according to door swing direction and door frame type ,e. g. narrow frame door , frameless glass door, inswing door , etc.
Regular Installation
(outswing door)
Regular Installation
1
Fold the mounting template 90°.
Tem pl ate
2
3
Drill the holes according to the
marks.
4
Armature Plate
Please install the armature plate as
illustrated here. (Dimensions of the
holes are depending on the door
types as illustrated below.)
Hollow Metal Door
Drill a 5/16" hole
through door,
Outdoor
on closing side
enlarge to 3/8"
by a sex nut bolt
on the opening
side.
3/8" 5/16"
Electromagnetic Lock Installation Instruction
ERM SERIES
L-bracket for narrow
frame (optional)
Place the template to the proper
position of the door and frame. Mark
the hole positions of the template on
the door and frame.
Solid Door
1-7/16"
Outdoor
3/8" 5/16"
U-bracket for frameless
glass door (optional)
5
Rubber Washer
6
7
Fix the mounting plate on the door
Cable
with mounting screws.
8
Use the Allen wrench and fixing bolts
to tighten the electromagnetic lock to
mounting plate.
Allen wrench
Power
9
Connect the power and test the unit.
Outdoor
LZ-bracket for inswing
door (optional)
T h e r u b b e r w a s h e r m a k e s t h e
s u r f a c e o f t h e a r m a t u r e p l a t e
adjustable in order to completely fit
the surface of magnetic lock.
Fasten the mounting plate with the
mounting screws. The position of the
mounting plate should be adjustable.
