For tips, watch Instructional Video at http://www.youtube.com/watch?v=fKleBFFclaU
Tools Required – flat, sturdy work surface
Quality grade wood glue such as Tite Bond III
Hammer or mallet and wood block, Philips Screwdriver
DO NOT press pieces together before gluing. All pieces are cut on a CNC router and are a precision
press fit. Assembling them without glue to check the fit may seem like a good idea, but when you
try to disassemble to add glue, you risk delaminating parts of the plywood.
When using a hammer, place a block of wood on the module components as a buffer, tapping on
the block of wood rather than the module components. This will prevent the hammer from marring
the module component surface. Also, make sure the module is supported by a sturdy work surface
that will withstand the action of the mallet or hammer. (the floor works fine for this)
1. Using the sandpaper pieces included in this kit, remove all the fuzz and splinters on the
perimeter of all the parts.
2. Lay out all the parts and get familiar with how they interlock and fit together. Refer to PARTS
LIST on Page 4.
3. We will begin assembling this module right side up on a sturdy work surface. This could be a
table, workbench or the floor if it is flat. Select one of the Deck End Plates and make sure the finger
sizes match the slot sizes in the deck and the alignment pin in the end plate is on the outside of the

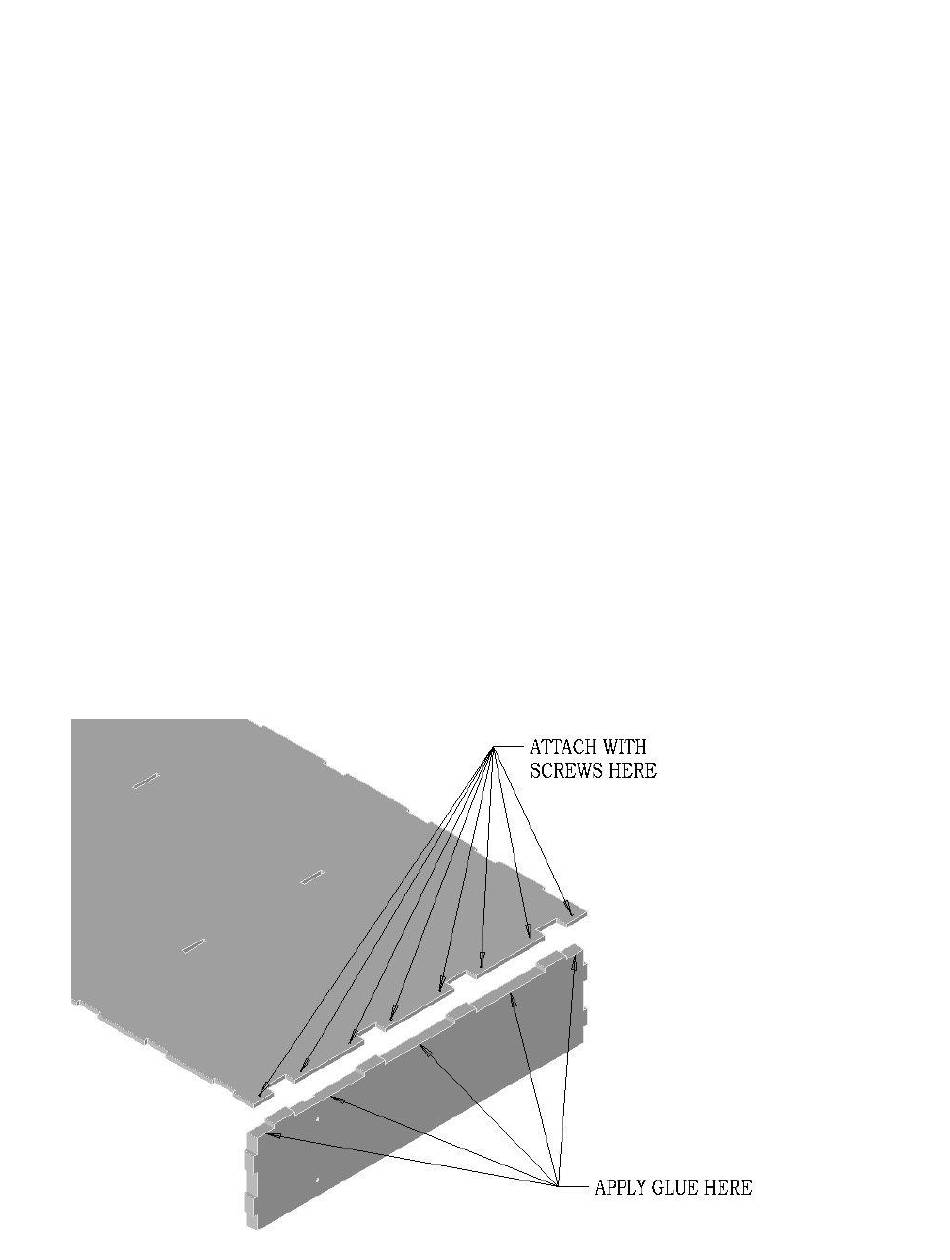

module. Spread glue on the top edge of the Deck End Plate between the fingers. Fit the Deck in
place as shown, using the other end plate to raise the other end to keep the Deck parallel with the
work surface. Make sure Deck is tight against the End Plate fingers and install #6 – 5/8 FH Wood
Screws as shown. Repeat with other end.
Masterpiece Module Kits
FreeMo Module Kit Assembly Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the FreeMo Module Kit and is the answer not in the manual?

Questions and answers

Summary of Contents for Masterpiece FreeMo Module Kit

  • Page 1 Masterpiece Module Kits FreeMo Module Kit Assembly Instructions For tips, watch Instructional Video at http://www.youtube.com/watch?v=fKleBFFclaU Tools Required – flat, sturdy work surface Quality grade wood glue such as Tite Bond III Hammer or mallet and wood block, Philips Screwdriver DO NOT press pieces together before gluing. All pieces are cut on a CNC router and are a precision press fit.
  • Page 2 Page 2 4. Turn Deck and Ends over on bench and install Deck Braces as shown. Use a mallet and block of wood to force the tabs into their holes in the deck.
  • Page 3 Page 3 5. Turn the module assembly up on one side as shown below. Locate and check fit of Module Side to Deck, Deck Braces and Module Ends. Spread glue on surface of Module Ends, Module Side and Deck Braces as shown. Start fitting side with end and work your way toward the other end of the module as you tap the Module Side fingers into their notches in the Deck.
  • Page 4 Page 4...
  • Page 5 Page 5 7. Turn module assembly back on its deck. Locate and check the fit of the Leg Pivot Blocks. Apply glue as shown and attach pivot blocks at each end with two #10 x 1-1/4” wood screws. 8. Attach Legs #1 & #2 - Locate Legs labeled 1 & 2 and the hardware shown. Install leg#1 in corner marked 1.
  • Page 6 Page 6 9. Attach bracing to Legs 1 & 2 - Locate two of the long leg braces and four #10 x 1” wood screws. Attach first brace as shown, using pre-drilled holes in legs. Attach second brace with screws. 10.
  • Page 7 Page 7 11. Attach braces to Legs 3 & 4 - Locate two of the long leg braces and four #10 x 1” FH Wood Screws. Attach first brace as shown, using pre-drilled holes in legs. Attach second brace with screws.
  • Page 8 Page 8 11. Attach Front Braces to Leg #2 - Locate two of the short leg braces, one leg brace spacer and two #10 x 1-1/2” wood screws. Attach braces as shown, using pre-drilled holes in legs. 12. Attach Front Braces to Leg #3 - Locate two of the short leg braces, one leg brace spacer and two #10 x 1-1/2”...
  • Page 9 Page 9 13. Install Leg Retainers as shown to Legs 1 and 2 using #10 x 1” FH Wood Screws. Tighten the screw snug so it will stay in place, but loose enough that it can be rotated to hold the legs in their folded position.
  • Page 10 Page 10 Setting up your Module – top deck is not shown for illustrative purposes To begin, you should have two people, one on each end of the module. Reaching under the module, pull down both leg sets as shown below. Swing out the braces attached to the left leg as shown.
  • Page 11 Page 11 Parts List 24" x 48" FreeMo Module Kit Qty description Deck End Plates w/ steel pin, bushing a & threaded inserts Leg Pivot Blocks Side Plates Deck Brace - center Deck Braces Leg - #1 Leg - #2...
