Electric

Skein Winder

Assembly and Use

Table of Contents

Need help?

Do you have a question about the Electric Skein Winder and is the answer not in the manual?

Questions and answers

Summary of Contents for Crazy Monkey Creations Electric Skein Winder

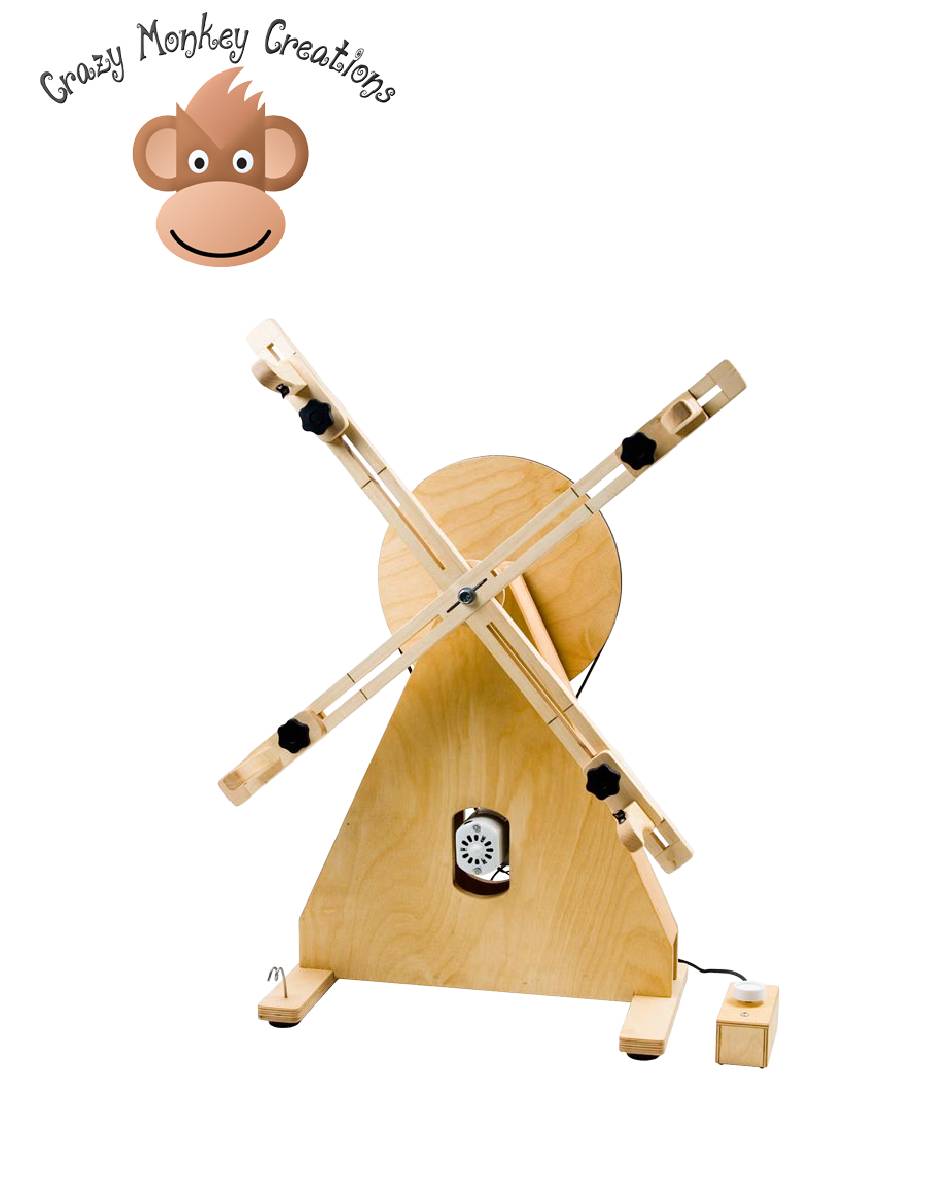

Page 1 Electric Skein Winder Assembly and Use...
Page 2 Package Contents • 1 - Triangular Body (w/ motor) • 1 - 3/8 x 7” Carriage Bolt • 1 - Cross Arm • 2 - Ball Bearings • 1 - Left Foot (w/ yarn guide) (may already be installed) • 1 - Right Foot •...
Page 3 Assembling the Winder Cross Arms: Inspect the contents of your package. If any parts are missing or damaged, e- mail us so we can send you replacement parts immediately. Main Body: Insert 3/8 x 7” carriage bolt through the hole in the center of the cross arms. Be sure the metal plate and engraved size markings are facing forward.
Page 4 Pulley & Belt: side to keep the belt from slipping. Insure that the slot on the front of the pulley is facing towards the winder body. Hook the extra length of the belt under the small pulley on the motor shaft. Carefully lift the wooden pulley until you can slip it on the end of the bolt, while being sure not to drop the belt.
Page 5 Belt Tension: Adjustable Fingers: The drive belt tension is adjusted to Insert a 5/16 x 2” carriage bolt through the correct tension before shipping. the wooden slider pad, so that the However should the motor move during square neck of the carriage bolt seats shipping or assembly readjustment may in the square hole in the pad.
Page 6 Using the Winder Adjusting Skein Size: Danger: The winder arms are very solid and spin at very high speed. Keep hands, arms, head and other appendages clear of spinning winder. Severe injury can occur. Danger: The yarn moves at very high speed. Do not touch the yarn or attempt to guide it with your hand while winding.
Page 7 Winding a Skein: Winding From a Swift: Securely attach your swift to a table or solid object. The winder winds very fast causing strong vibrations in the swift. Be sure that the yarn is not tangled on the swift. If the yarn gets stuck it could break or damage the swift.
Page 8 Warranty We produce our skein winders to the highest standards of quality and performance. Your skein winder is backed by a one year warranty against defect in material or workmanship. If your winder breaks or becomes non functional for any reason, within one year from the date of delivery we will repair or replace it free of charge.
