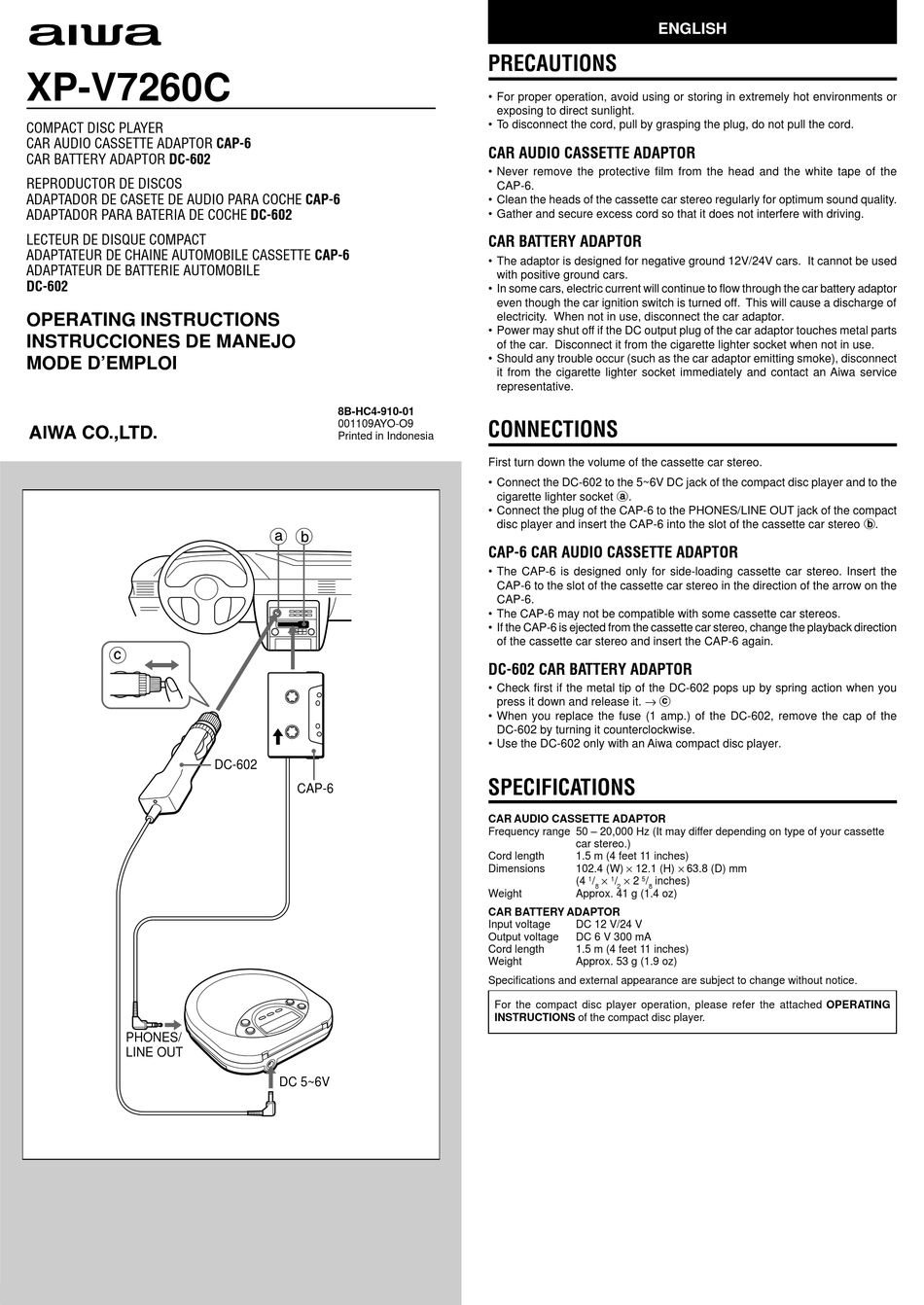

Aiwa XP-V7260C Operating Instructions

XP-V7260C
COMPACT DISC PLAYER
CAR AUDIO CASSETTE ADAPTOR CAP-6
CAR BATTERY ADAPTOR DC-602
REPRODUCTOR DE DISCOS
ADAPTADOR DE CASETE DE AUDIO PARA COCHE CAP-6
ADAPTADOR PARA BATERIA DE COCHE DC-602
LECTEUR DE DISQUE COMPACT
ADAPTATEUR DE CHAINE AUTOMOBILE CASSETTE CAP-6
ADAPTATEUR DE BATTERIE AUTOMOBILE
DC-602
OPERATING INSTRUCTIONS
INSTRUCCIONES DE MANEJO
MODE D'EMPLOI
PHONES/
LINE OUT
8B-HC4-910-01
001109AYO-O9
Printed in Indonesia
DC-602
CAP-6
DC 5~6V
ENGLISH
PRECAUTIONS
• For proper operation, avoid using or storing in extremely hot environments or
exposing to direct sunlight.
• To disconnect the cord, pull by grasping the plug, do not pull the cord.
CAR AUDIO CASSETTE ADAPTOR
• Never remove the protective film from the head and the white tape of the
CAP-6.
• Clean the heads of the cassette car stereo regularly for optimum sound quality.
• Gather and secure excess cord so that it does not interfere with driving.
CAR BATTERY ADAPTOR
• The adaptor is designed for negative ground 12V/24V cars. It cannot be used
with positive ground cars.
• In some cars, electric current will continue to flow through the car battery adaptor
even though the car ignition switch is turned off. This will cause a discharge of
electricity. When not in use, disconnect the car adaptor.
• Power may shut off if the DC output plug of the car adaptor touches metal parts
of the car. Disconnect it from the cigarette lighter socket when not in use.
• Should any trouble occur (such as the car adaptor emitting smoke), disconnect
it from the cigarette lighter socket immediately and contact an Aiwa service
representative.
CONNECTIONS
First turn down the volume of the cassette car stereo.
• Connect the DC-602 to the 5~6V DC jack of the compact disc player and to the
cigarette lighter socket a.
• Connect the plug of the CAP-6 to the PHONES/LINE OUT jack of the compact
disc player and insert the CAP-6 into the slot of the cassette car stereo b.
CAP-6 CAR AUDIO CASSETTE ADAPTOR
• The CAP-6 is designed only for side-loading cassette car stereo. Insert the
CAP-6 to the slot of the cassette car stereo in the direction of the arrow on the
CAP-6.
• The CAP-6 may not be compatible with some cassette car stereos.
• If the CAP-6 is ejected from the cassette car stereo, change the playback direction
of the cassette car stereo and insert the CAP-6 again.
DC-602 CAR BATTERY ADAPTOR
• Check first if the metal tip of the DC-602 pops up by spring action when you
c
press it down and release it.
• When you replace the fuse (1 amp.) of the DC-602, remove the cap of the
DC-602 by turning it counterclockwise.
• Use the DC-602 only with an Aiwa compact disc player.

SPECIFICATIONS

CAR AUDIO CASSETTE ADAPTOR
Frequency range 50 – 20,000 Hz (It may differ depending on type of your cassette
car stereo.)
Cord length 1.5 m (4 feet 11 inches)
Dimensions 102.4 (W) 12.1 (H)
(4 1 / 1 / 2 5 / inches)
8 2 8
Weight Approx. 41 g (1.4 oz)
CAR BATTERY ADAPTOR
Input voltage DC 12 V/24 V
Output voltage DC 6 V 300 mA
Cord length 1.5 m (4 feet 11 inches)
Weight Approx. 53 g (1.9 oz)
Specifications and external appearance are subject to change without notice.
For the compact disc player operation, please refer the attached OPERATING
INSTRUCTIONS of the compact disc player.
