Caribou Streamline OV1020 Series Manual

Sit stand desk

Hide thumbs

Table of Contents

Quick Links

Download this manual

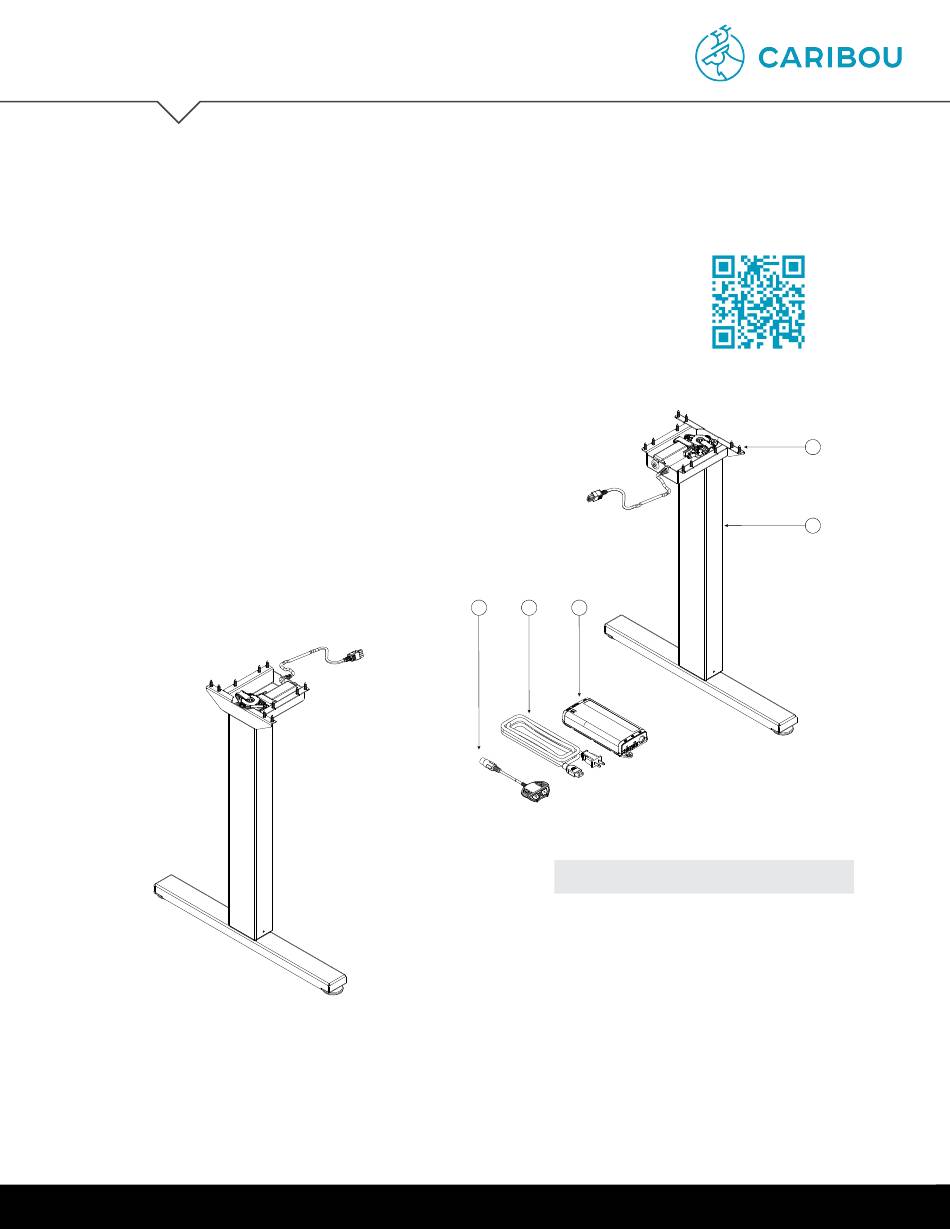

PARTS DIAGRAM

Streamline Sit Stand Desk

Streamli

PARTS DIAGRAM

INDEPENDENT TABLE

For tables up to 60"

PARTS

1. Column

2. Handswitch

3. Control Box

4. Power Cord

5. #10 x ¾" Screw

Scan for Assembly Vidoe

Qty/Package

Page 1

Table of Contents

Need help?

Do you have a question about the Streamline OV1020 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Caribou Streamline OV1020 Series

Page 1 PARTS DIAGRAM Streamline Sit Stand Desk Streamli PARTS DIAGRAM Scan for Assembly Vidoe INDEPENDENT TABLE For tables up to 60" PARTS Qty/Package 1. Column 2. Handswitch 3. Control Box 4. Power Cord 5. #10 x ¾" Screw Page 1...
Page 2 SAFETY INFORMATION Streamline Sit Stand Desk ASSEMBLY INSTRUCTIONS The assembly of the table frame to be made in accordance with this manual. Changes to the table frame or improper use may affect the safety, function, and life of your product. This manual is for all sit-stand tables from the OV1020 series.
Page 3 Streamline Sit Stand Desk ASSEMBLY INSTRUCTIONS ASSEMBLE THE COLUMNS TO THE WORK SURFACE Center the columns front to back on the work surface. Use the #10 x ¾" screws to fasten the top support onto the table top. Be sure motor boxes are mounted 1.5" from edge of work surface.
Page 4 Streamline Sit Stand Desk ASSEMBLY INSTRUCTIONS FASTEN THE CONTROL BOX AND HANDSWITCH TO THE TABLE TOP Make sure the control box and handswitch are fastened in a location where all the cables will connect without being in tension. Be sure to use approved screws per the table top supplier.
Page 5 Streamline Sit Stand Desk ASSEMBLY INSTRUCTIONS CONNECT THE HANDSWITCH (HS) CABLE TO THE CONTROL BOX CONNECT THE SUPPLIED POWER CORD (AC) TO THE CONTROL BOX ATTACH ALL CABLES TO THE TABLE FRAME OR ON THE UNDERSIDE OF THE TABLE TOP Attach cables in order to avoid any damage during operation.
Page 6 Streamline Sit Stand Desk OPERATION INFORMATION OPERATION INFORMATION INITIALIZATION/RESET The desk must be initialized/reset after any of the following: - After assembly - After disconnection from the power supply - After any impact on the table top. To initialize/reset, move the table to the lowest position by pressing the DOWN button on the handswitch until the columns reach the lowest position.
