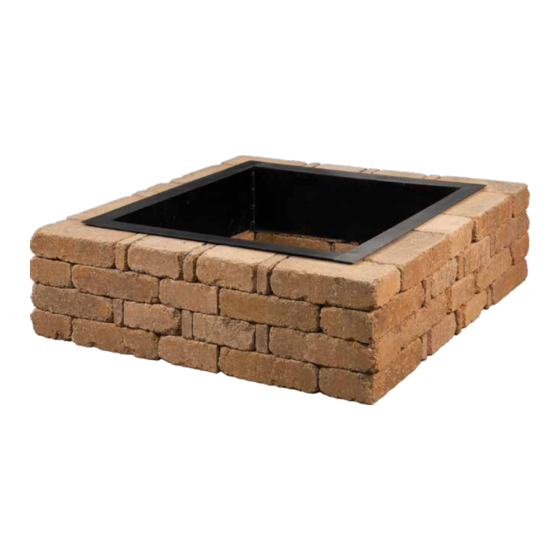

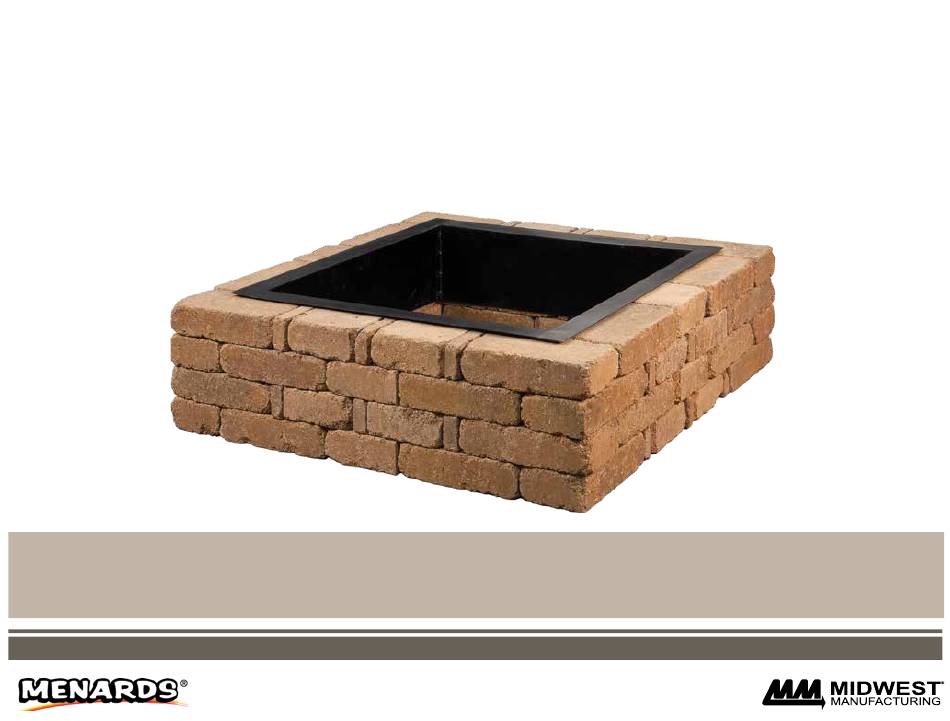

- Page 1 INCINDIO FIRE PIT Autumn Blend: 198-6243 Quarry Gray: 198-6240 Sienna: 198-6241 Tan: 198-6242 Approximate Weight: 1,400 lbs Approximate Size: 1' 2" H × 4' 2¾" W × 4' 2¾" D www.midwestmanufacturing.com...
-
Page 2: Additional Materials
CONCRETE BLOCK MATERIALS BELGIAN WALL BLOCKS PRODUCT DESCRIPTION QUANTITY COLOR LARGE MEDIUM SMALL L Tumbled Belgian Wall Color of Choice Autumn Blend 179-3640 179-3724 179-3734 M Tumbled Belgian Wall Color of Choice Quarry Gray 179-3650 179-3721 179-3731 S Tumbled Belgian Wall Color of Choice Sienna 179-3648... - Page 3 RESPONSIBILITIES: TOOL CHECK LIST: It is the responsibility of the owner to ensure compliance with all applicable laws, codes and regulations for any project. Proper safety precautions must be taken prior to and during the construction of each project. Level Please follow standard safety guidelines and wear necessary protective equipment when building and using Protective Equipment your new backyard addition.
-
Page 4: Fire Pit Dimensions
TABLE OF CONTENTS FIRE PIT DIMENSIONS Materials List Tool Check List Foundation Guidelines Level 1 - Level 4 Level 5 - Complete Finished ELevations Use & Care Instructions 1' 2" 4' 2¾" 4' 2¾" TECHNIQUES INSTALLATION INSTRUCTIONS Follow suggestions on page 3 to build a proper foundation before starting your new project. If not Fasten each layer of block together with already set, place the first level of block 1”- 2”... - Page 5 LEVEL 1 LEVEL 2 (8) L Belgian Wall (8) L Belgian Wall (6) M Belgian Wall (6) M Belgian Wall (6) S Belgian Wall (6) S Belgian Wall LEVEL 3 LEVEL 4 (8) L Belgian Wall (8) L Belgian Wall (6) M Belgian Wall (6) M Belgian Wall (6) S Belgian Wall...
- Page 6 LEVEL 5 (1) 36” Square Fire Ring COMPLETE...
- Page 7 ELEVATION PERSPECTIVES Back View Right View Left View Top View Front View...
-
Page 8: Use And Maintenance
USE & MAINTENANCE With proper use and maintenance you can enjoy this new addition to your landscape for years to come. FIRE PIT USE: • When using your fire pit, always following burning regulations in your area and never leave a fire unattended. •...
