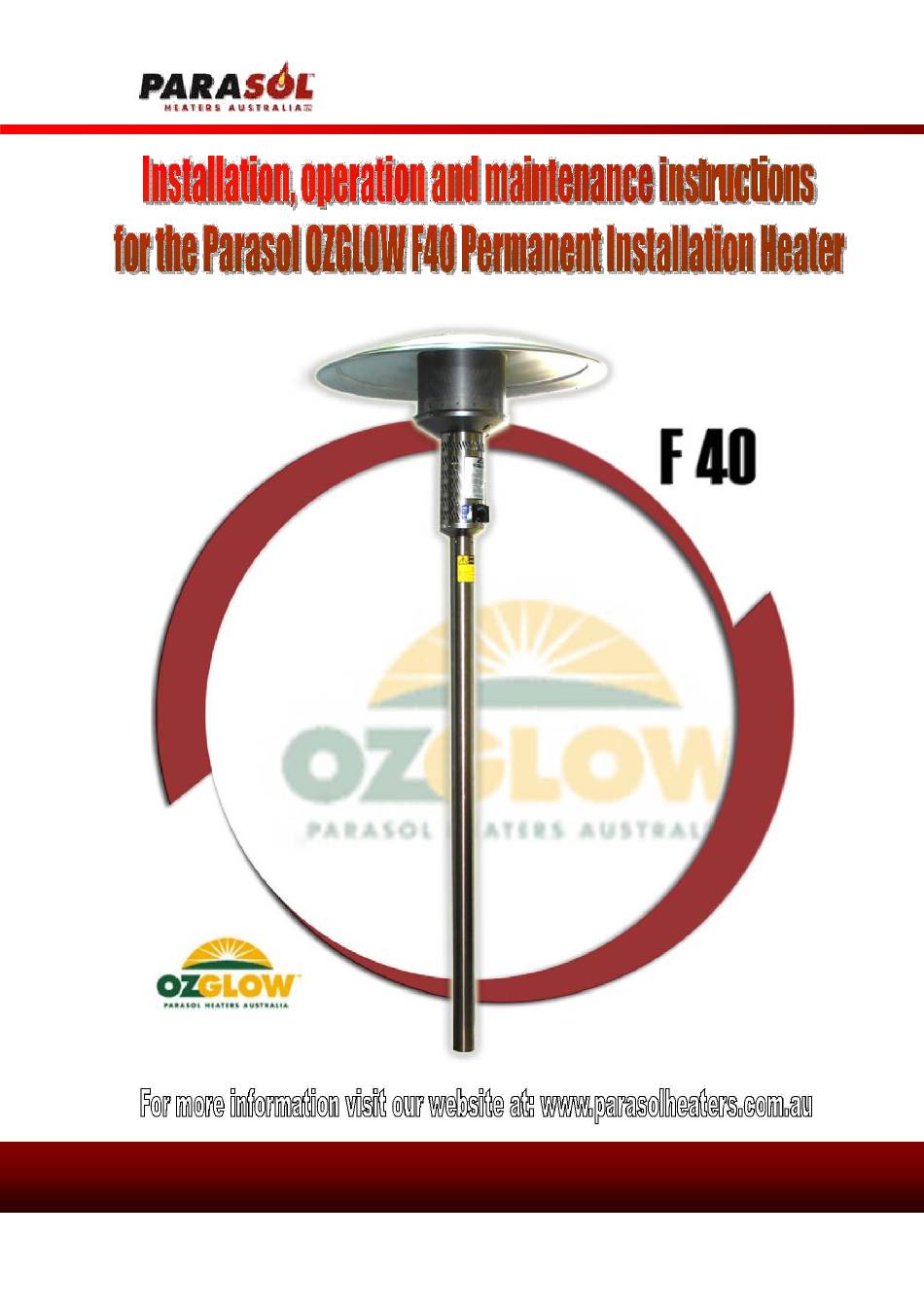

- Page 1 Patio Heater Instructions OZGLOW F40 Permanent Installation © PARASOL HEATERS AUSTRALIA MELBOURNE 61 3 9549 4466 | SYDNEY 61 2 9624 4486 | BRISBANE 61 7 3200 7877 www.parasolheaters.com.au Page 1 of 11 Created on 24/09/2015...
-
Page 2: Table Of Contents
Patio Heater Instructions OZGLOW F40 Permanent Installation CONTENTS PRODUCT DESCRIPTION ..................IMPORTANT INFORMATION REGARDING UNIT ..........GENERAL MAINTENANCE ..................4 DIMENSIONS and COMPONENTS ................UNIT CLEARANCE ...................... 6 UNIT CLEARANCE – PATIO RESTAURANT ............HEATER SPACING ...................... 7 OPERATING INSTRUCTIONS ................... 8 HEATER ASSEMBLY INSTRUCTIONS .............. -
Page 3: Product Description
Patio Heater Instructions OZGLOW F40 Permanent Installation PRODUCT DESCRIPTION Available in classic stainless steel finish these heaters are built to last, and provide you and your guests with warmth and comfort within a 5-metre circle. For an uncovered patio, model F40 permanent is often the best choice of patio heaters. -
Page 4: Important Information Regarding Unit
For all other installation requirements refer to code AG 601 - gas installations. The OZGLOW F40 patio heater is for use with natural gas or propane gas. Gas pressure details are on the appliance data plate fitted above the gas valve. -
Page 5: Dimensions And Components
Patio Heater Instructions OZGLOW F40 Permanent Installation DIMENSIONS and COMPONENTS Overall height 2400mm. Overall width 890mm. © PARASOL HEATERS AUSTRALIA MELBOURNE 61 3 9549 4466 | SYDNEY 61 2 9624 4486 | BRISBANE 61 7 3200 7877 www.parasolheaters.com.au Created on 24/09/2015... -
Page 6: Unit Clearance
Patio Heater Instructions OZGLOW F40 Permanent Installation UNIT CLEARANCE The OZGLOW heater must have the following clearances from combustible materials: 300mm above, 600mm at the sides and 1200mm below. This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. -
Page 7: Unit Clearance - Patio Restaurant
Patio Heater Instructions OZGLOW F40 Permanent Installation UNIT CLEARANCE – PATIO RESTAURANT Illustrates a patio restaurant completely exposed on three sides. For optimum heating results eight heaters are used, Fig. 1: located as shown. No air heating efficiency counted this installation. -
Page 8: Operating Instructions
Patio Heater Instructions OZGLOW F40 Permanent Installation OPERATING INSTRUCTIONS When this OZGLOW heater has been assembled follow the lighting instructions on the data plate and test the heater operation. On the first light up or when the bottle has been changed it may take several minutes to purge the air from the pilot line. -
Page 9: Heater Assembly Instructions
Patio Heater Instructions OZGLOW F40 Permanent Installation HEATER ASSEMBLY INSTRUCTIONS Screw pipe regulator assembly into the heater head. Point the adjustment screw on the regulator to the front of the heater. Only Natural gas models are supplied with a regulator for LPG models the pipe screws straight into the bottom of the heater head. - Page 10 All pressure details are on the data plate. • If the heater cannot be adjusted properly contact Parasol Heaters Australia. © PARASOL HEATERS AUSTRALIA MELBOURNE 61 3 9549 4466 | SYDNEY 61 2 9624 4486 | BRISBANE 61 7 3200 7877 www.parasolheaters.com.au...
-
Page 11: Warranty
Warranty is limited to the heater head being returned to our factory for repair or replacement parts. o Parasol Heaters Australia Pty Ltd will not be liable for any other expenses to the customer, except as stated above. This heater is manufactured in Australia by:...
