Leeson SM Series Instructions

174194.00

REMOTE KEYPAD INSTRUCTIONS

The SM Series Remote Keypad option allows the SM Series drive to be
programmed and controlled from up to 8 feet away (typically from the
front of the enclosure that houses the SM drive). When properly mounted,
the remote keypad is rated up to NEMA 4X.
In addition to the functions available on the front of the SM drive, the
remote keypad has Start/Stop and Forward/Reverse functions.
NOTE: The Remote Keypad option will only work with SM drives that
have parameter version "320" or higher. The parameter version appears
momentarily on the drive display when it is powered up, and also appears
on a sticker on the drive's heatsink.
WARNING!
If OEM mode is selected (using Parameter 48), and if the OEM Default
settings for Parameters 11, 12, and 14 are not "13", "21", and "02" respectively,
the remote keypad will be disabled, and the STOP key WILL NOT work.
Refer to the SM manual for more information on OEM Default settings.
1.

PARTS LIST

The SM Remote Keypad kit includes the following parts:
(1) Remote Keypad
(2) Self-tapping Mounting Screws
(1) Eight foot cable
NOTE: The supplied cable is unshielded and can only be used in low-noise
environments. In high-noise environments, use Belden 9842, Carol C4842, or
equivalent (24 gage minimum) wire only. The maximum cable length that can
be used is 8 feet.
3.

MOUNTING THE REMOTE KEYPAD

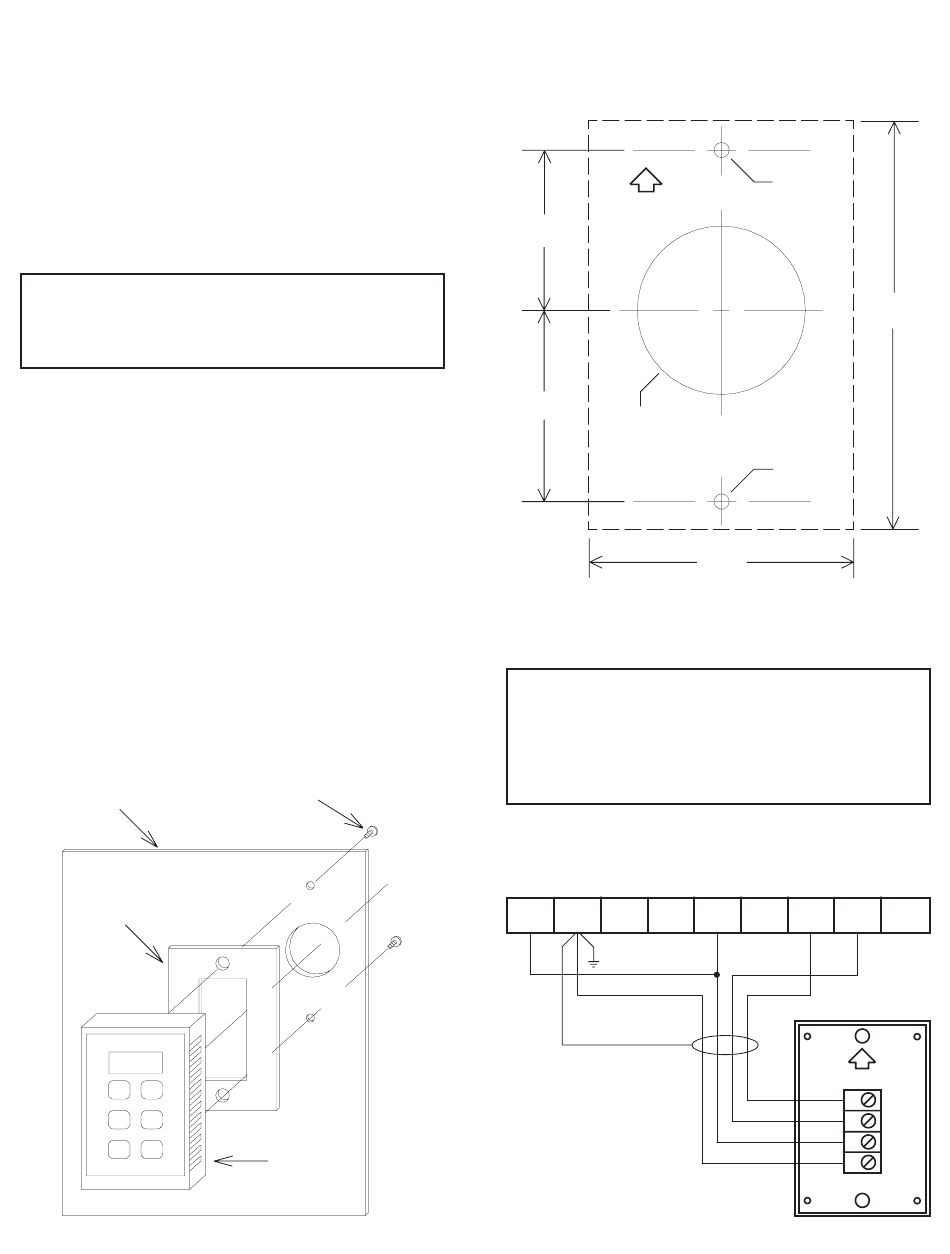

The diagram below illustrates how to mount the remote keypad to a panel. Use
the template in Section 2 to mark the location of the mounting holes on the
panel.
PANEL
GASKET
LEESON Electric LEESON Electric LEESON Electric • 2100 Washington St. • Grafton, WI 53024 • Ph: (262) 377-8810 • Fax: (262) 377-9025 • www.leeson.com
LEESON Electric LEESON Electric
- SM SERIES
(1) Gasket
(1) Instruction Sheet
MOUNTING
SCREWS
REMOTE
KEYPAD
2.

SM REMOTE KEYPAD TEMPLATE

Hold this page against the panel where the remote keypad is to be mounted,
and use a center punch to mark the location of the holes. The dotted line is the
outline of the remote keypad.
UP
1.32"
1.57"
1.38" to 1.5"
hole
Max Depth = 0.72"
4.

WIRING CONNECTIONS

WARNING!
Improper wiring may result in damage to the Remote Keypad. Keep the
remote keypad cable away from power wiring.
The Belden and Carol cables specified consist of two twisted pairs. Make
sure one twisted pair is used for connections to 13B and 13E, and the
other is used for connections to 11 and 2. Do not mix connections
between twisted pairs.
NOTE: The supplied cable is unshielded and can only be used in low-noise
environments. In high-noise environments, use Belden 9842, Carol C4842, or
equivalent (24 gage minimum) wire only. The maximum cable length that can
be used is 8 feet.
2
1 5 6
Cable included with kit
does not have a shield
REMOTE KEYPAD
1/8" hole
1/8" hole
2.19"
11 13A 13B 13E
UP
(BACK VIEW)
3.38"
25
13B
13E
11
2
