Ground Zero GZ BASS KIT 12.300X Owner's Manual

GZ BASS KIT 12.300X
• As a precaution, it is recommended to disconnect the vehicles battery before mounting the amplifier. (Note: For new
vehicles, disconnecting the battery might cause various errors in your vehicle´s electric system that can be cleared only by
authorized personel of your vehicle´s manufacturer! Please ask your service partner first before disconnecting the battery!)
• The power supply wire (+12 V) has to be protected within max. 20 cm / 8" by a main fuse holder with a fuse value matching
the recommendation for your amplifier or internal fuse value
(Note: If there is more than one amplifier connected using this power wire, the main fuse value must be equal to the sum of
the recommended fuses of all connected devices. However, make sure the diameter of your power wire will be sufficient for
the required current!)
•
If necessary, replace a defective fuse by a fuse with identical quality and value
•
Never drill a hole to the vehicle´s gas tank or brake lines, to wirings or any other important vehicle parts!
•
Never pass wires over sharp edges or vehicle parts to avoid any kind of damage
• Keep the wiring away from the antenna and electronic devices contributing to radio reception
• Lay the power supply wiring always separated from speaker wiring to avoid disturbance
•
The amplifier contains a temperature protection circuit that turns the device off in case of overheating. After a certain cooling
time, it will turn on automatically. To avoid heat build-up, sufficient air supply for cooling must be provided. Never cover the
surface of the amplifier´s heatsink entirely
•
The amplifier should not be mounted onto a vibrating part or surface such as a subwoofer enclosure. This might lead to
malfunction due to loosened electrical parts inside the amplifier.
•
This amplifier has got a high-level input option, however if a pre-amplified output (RCA) is available (from head unit), it is
strongly recommended to make use of it.
Owner´s manual

Features

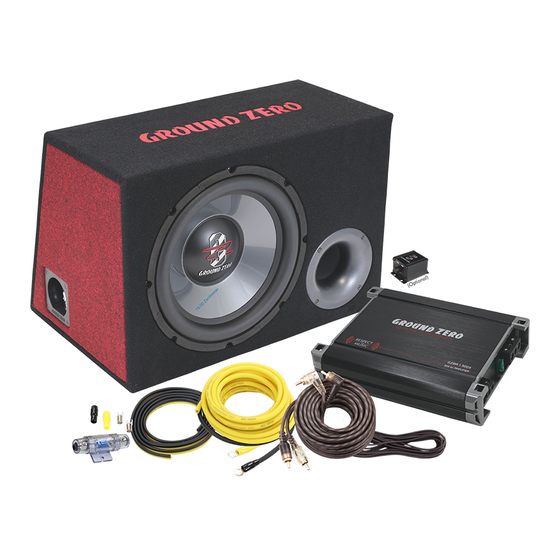

Mono class A/B amplifier GZBA 1.300X
•
• 4 ohms stable amplifier
• Power and protection indicator
Bass Boost control
•
• Variable low pass filter
Auto-on function for high-level input
•
• Adjustable input sensitivity
Separately available remote control
•
• 30 cm / 12" subwoofer enclosure with Aero port
Klippel® optimized
•

General installation note
