Summary of Contents for TDT VR2020 Series

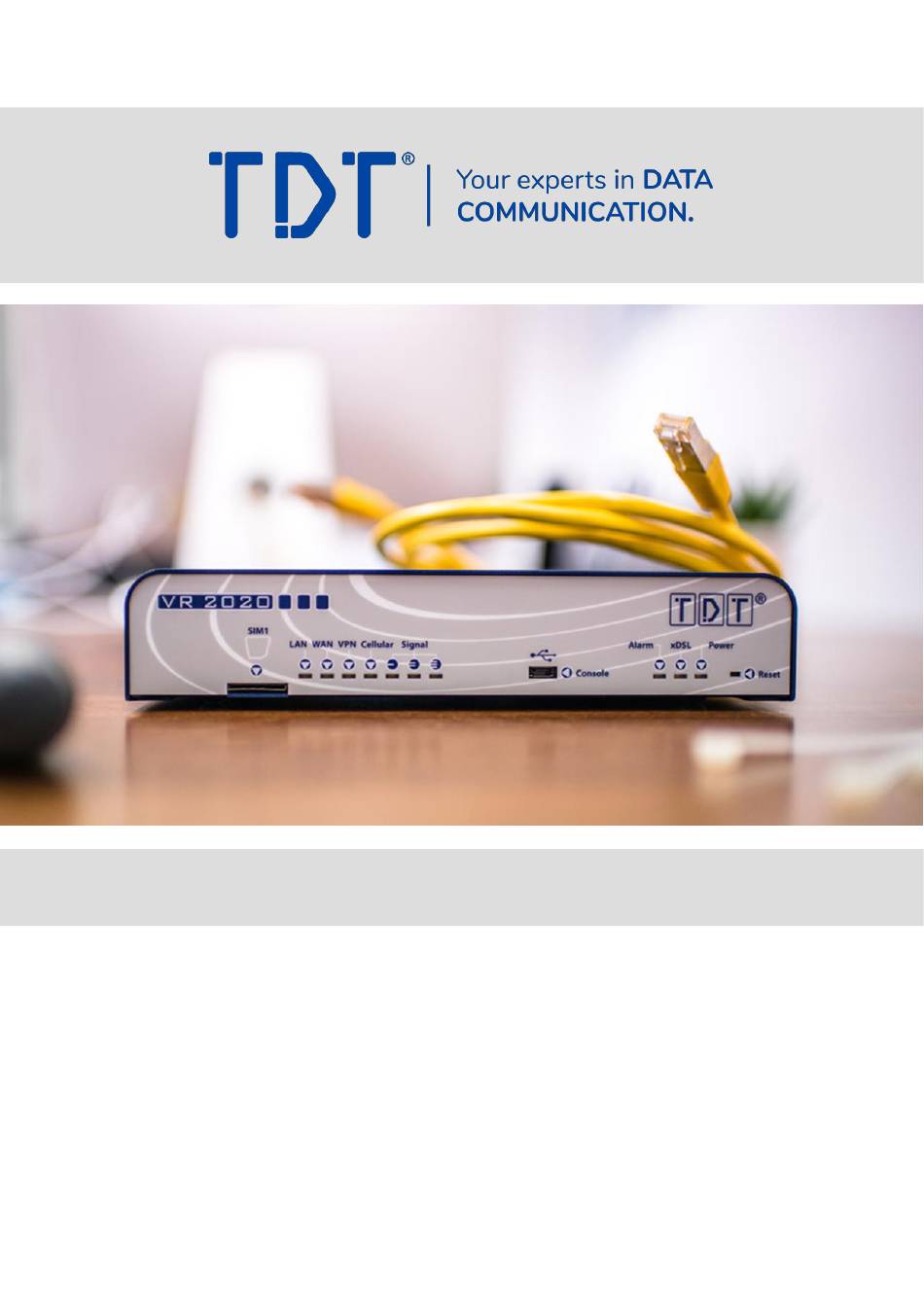

- Page 1 Initial start-up guide: VR2020 series TDT AG +49 8703 929-112 Siemensstraße 18 www.tdt.de 84051 Essenbach E-Mail support@tdt.de Germany Rev. 2019-08 – 20.09.2019 – SH...
- Page 2 This documentation contains instructions that need to be complied with for the safety of the user and/or to prevent damage to the VR2020 series. As part of ongoing security testing TDT always strives to design its products as secure as possible and attaches great importance to compliance with current safety and quality standards during development and regular firmware updates.
- Page 3 2 Hardware – Getting started 2.1 Package contents The following accessories are included with the VR2020 router: Router Power supply (12V, 1A) Ethernet-/LAN-cable TAE-cable for xDSL Antenna for mobile radio 2.2 Front side On the front of the VR2020 router are arranged from left to right: SIM card slot SIM1 Status LEDs:...
- Page 4 Signal blinking Not connected to the mobile network, registered, no signal. Registered on a mobile cell. Signal level between 0% and 17% Signal level between 17% and 33% Signal level between 33% and 50% Signal level between 50% and 66% Signal level between 66% and 83% Signal level between 83% and 100% Micro-USB console port with integrated USB-to-serial adapter.
- Page 5 Besides, IP addresses are also provided via DHCP in the standard configuration. Here the range is defined from 192.168.0.100 192.168.0.250 Parameter Value IP address 192.168.0.50 DNS name tdt.router Username root Password Individually generated for each router (see nameplate). Caution In the delivery state, the VR2020 has an individual password which can be found on the nameplate. ➢...
- Page 6 It can be accessed both in the menu of the web interface, under Help > Handbook , as well as without login: Access without login: https://tdt.router/manual https://192.168.0.50/manual Note The manual, which can be accessed without login, can be saved locally via the...
- Page 7 ssh root@192.168.0.50 In a Linux environment access can be gained directly via the terminal by using the command Serial via USB configuration port In order to access the VR2020 via serial, a terminal program is required. The connection can also be established via PuTTY. First connect the router with a micro-USB cable via the console port to the computer.
- Page 8 Hereby, TDT declares that the radio equipment type VR2020-LD is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: download.tdt.de. Hereby, TDT declares that the telecommunication terminal equipment type VR2020-D is in compliance with Directive 2014/35/EU.
